A1410010 04 – TRANSMISSION (REV. F)
Written by
in

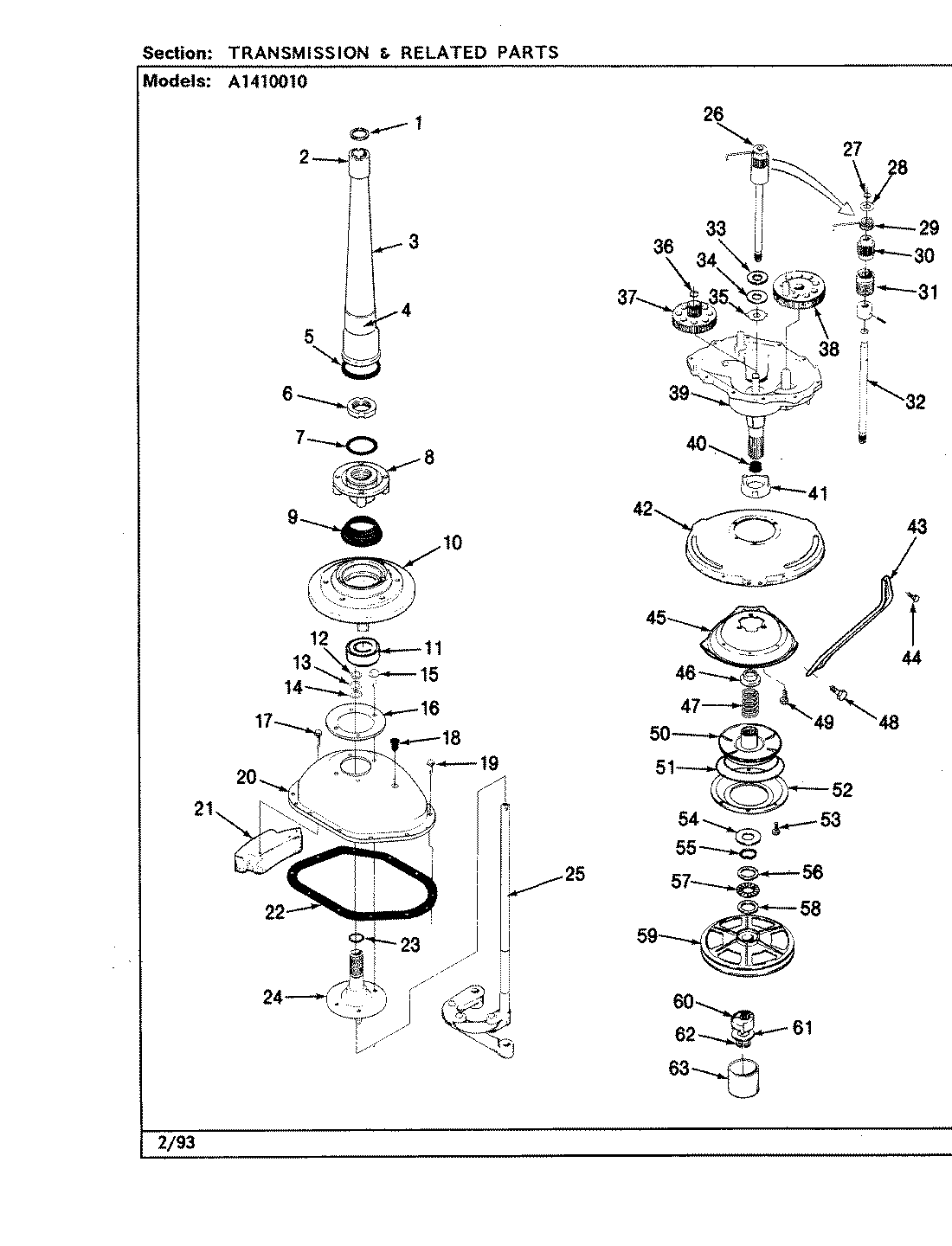

A1410010 04 – TRANSMISSION (REV. F)
Products
Position
Product
NI
MAY LA-2175
2
MAY 35-2835
3
MAY 35-2792
4
MAY 35-2983
4
MAY 33-6790
5
MAY 35-2906
6
MAY 35-2791
7
MAY 25-7938
8
MAY 35-2715
9
MAY 35-2974
10
MAY 35-2716
11
MAY 35-2205
11
MAY 35-2972
12
MAY 25-7949
13
MAY 25-7057
14
MAY 25-7051
16
MAY 35-2981
18
MAY 35-2621
19
MAY 25-7926
20
MAY 35-2971
20
MAY 35-2620
21
MAY 35-2903
22
MAY 35-1030
23
MAY 25-7722
24
MAY 35-2708
25
MAY 35-3036
26
MAY LA-2176
27
MAY 25-7847
28
MAY 25-7415
28
MAY 25-7416
29
MAY 33-6114
30
MAY 35-2001
31
MAY 33-3195
32
MAY 35-2692
33
MAY 25-7274
34
MAY 35-2817
35
MAY 35-2070
36
MAY 25-7933
37
MAY 35-2527
38
MAY 35-2631
39
MAY 35-2812
40
MAY 35-2010
41
MAY 35-2730
41
MAY 35-2973
42
MAY 35-2732
43
MAY 35-2798
45
MAY 35-2015
46
MAY 35-2017
47
MAY 35-2112
48
MAY 25-7930
49
MAY 25-7895
50
MAY 35-2948
51
MAY 35-2357
52
MAY 35-2018
53
MAY 25-7900
59
MAY 35-2683
60
MAY 35-2439
61
MAY 35-2132
61
MAY 35-2082
62
WP25-7854 Whirlpool Clip
63
MAY 35-2007
←
