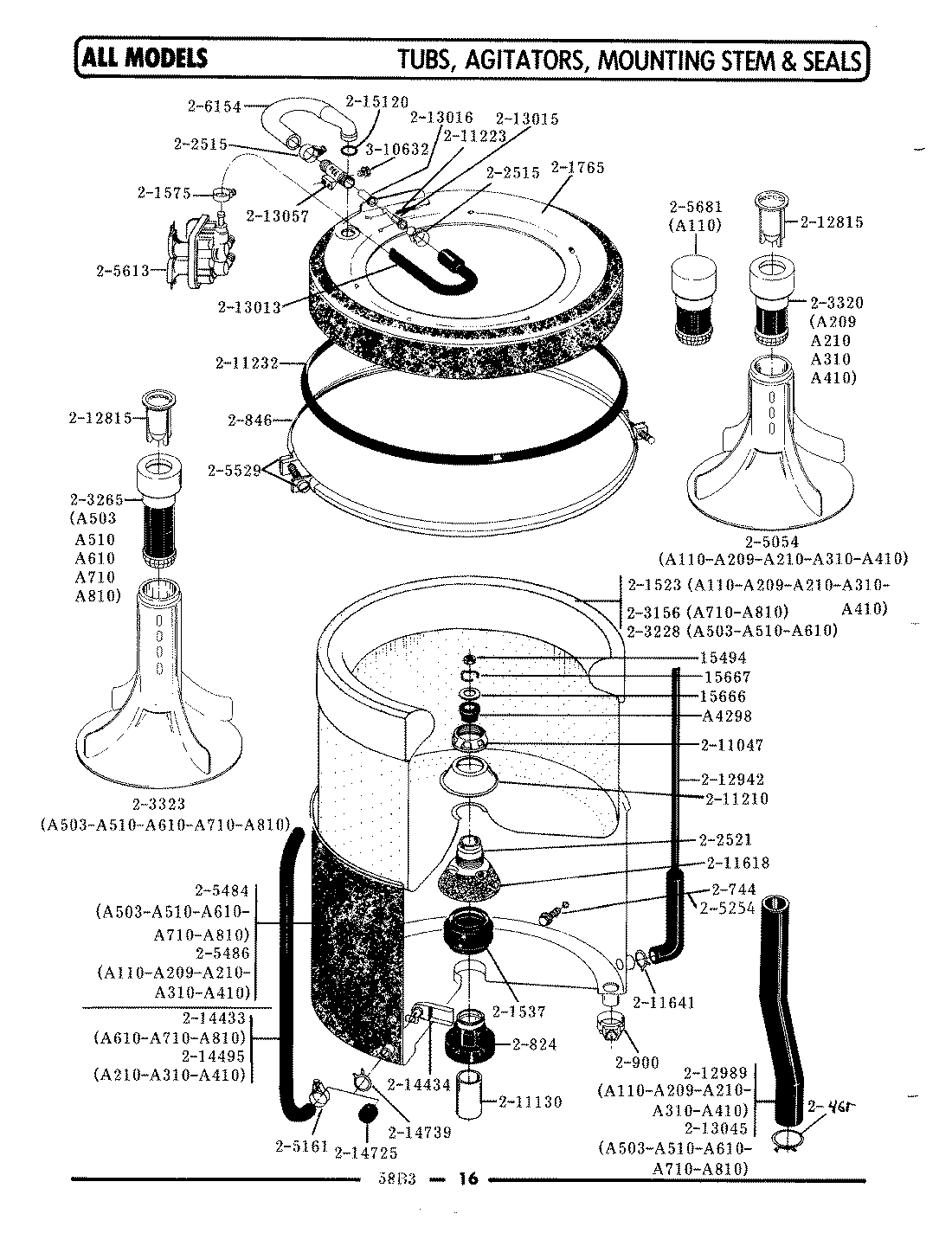

A610 07 – TUB, AGITATOR, MOUNTING STEM & SEAL

Products

Position	Product
NI	MAY Y310632
NI	WP489503 Whirlpool Refrigerator Clamp
NI	MAY Y054867
NI	MAY 204012
NI	MAY 211223
1	MAY A04298
2	MAY Y015494
3	WPY015666 Whirlpool Washer Retainer
4	MAY Y015667
6	W10175939 Whirlpool Bolt Assembly
7	6-2040130 Whirlpool Washer Tub Bearing Kit
9	MAY 200900
10	MAY 201523
11	MAY 201537
12	WP596669 Whirlpool Hose Clamp
13	MAY 201765
15	MAY 202521
17	PART NOT USED
18	MAY 203265
19	MAY 203323
23	PART NOT USED
24	MAY 205486
26	205613 Whirlpool Washer Water Inlet Valve
27	MAY 206154
28	WP6-2110472 Whirlpool Nut Clamp
29	MAY 211100
30	MAY 211130
31	MAY 211210
33	WP211232 Whirlpool Seal
34	MAY 211618
35	WP285655 Whirlpool Hose Clamp
36	MAY 212815
37	MAY 212942
38	WP213013 Whirlpool Injector Hose
39	WP213015 Whirlpool Nozzle Injector Tube
40	WP216201 Whirlpool Rubber Injector Valve
41	WP213045 Whirlpool Dishwasher Tub to Pump Hose
42	MAY 213057
43	WP214433 Whirlpool Inlet Tube
44	MAY 214434
45	MAY 214725
47	MAY 200461
48	MAY 215120
