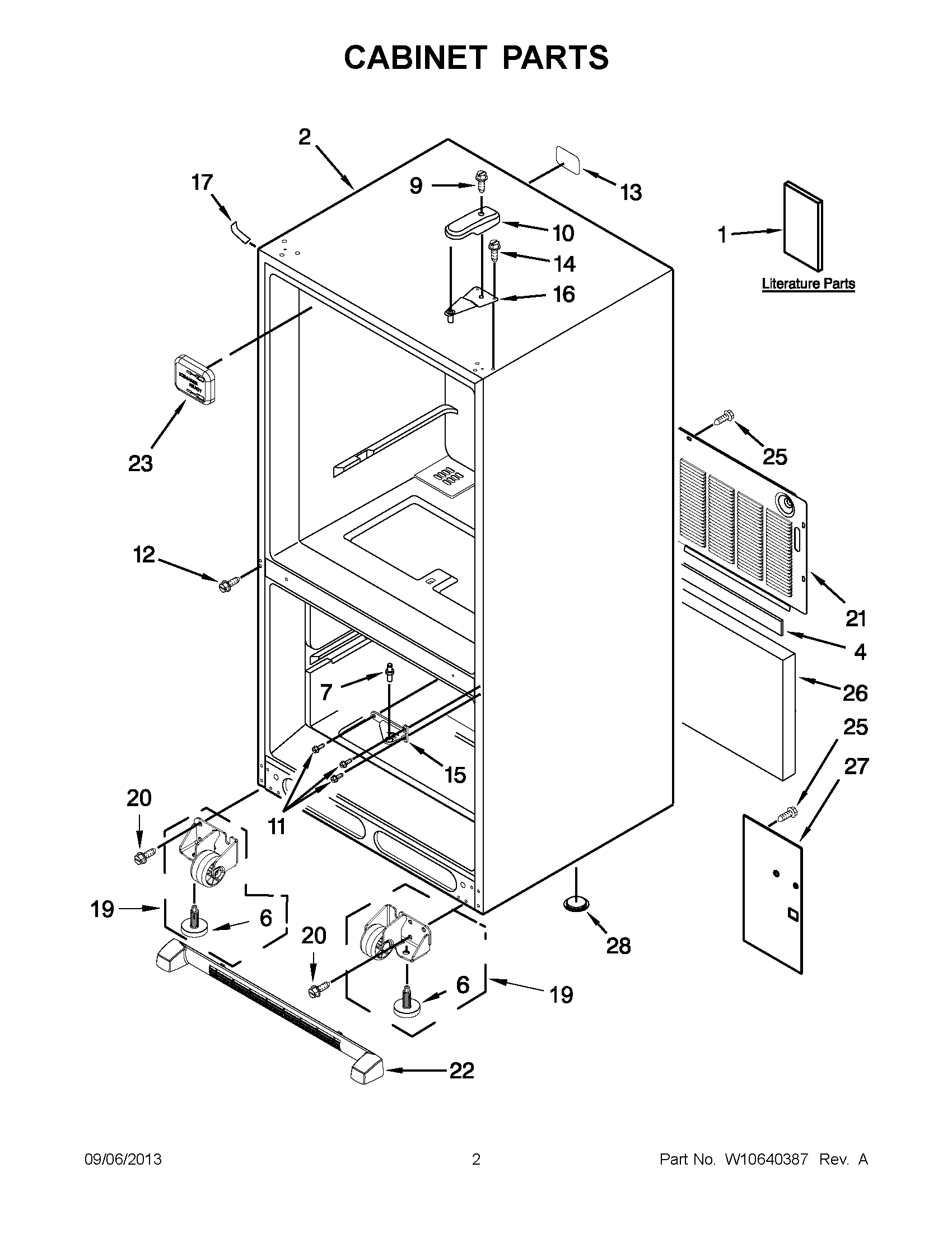

ABB2224BRW00 02 – CABINET PARTS

Products

Position	Product
1	MAY W10366212SP
1	MAY W10517966
1	MAY W10616205
2	LINER (NOT A SERVICEABLE PART)
4	MAY B5759655
6	Brake, Foot
7	MAY 10351006
9	MAY 12992602
10	MAY 12477601W
10	COVER, HINGE(BLACK)
10	MAY 12477601AP
11	MAY 12990101
12	MAY W10339086
13	LABEL-FILL TUBE
14	SCREW (6)
15	MAY 12607103AP
15	MAY 12607103WD
15	MAY 12607104ED
16	MAY 12566606ED
17	COVER, CORNER (GREY)
17	Cover, Corner (2) (White)
17	COVER, CORNER (BLACK)
19	ROLLER ASSEMBLY (LEFT HAND)
19	ROLLER ASSEMBLY (RIGHT HAND)
20	Screw (8)
21	MAY W10210979
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (GREY)
22	MAY W10534161N
23	COVER-FILL TUBE
25	SCREW (10)
26	Insulation, Sound
27	MAY W10217701
28	A3076901 Whirlpool Refrigerator Plug
