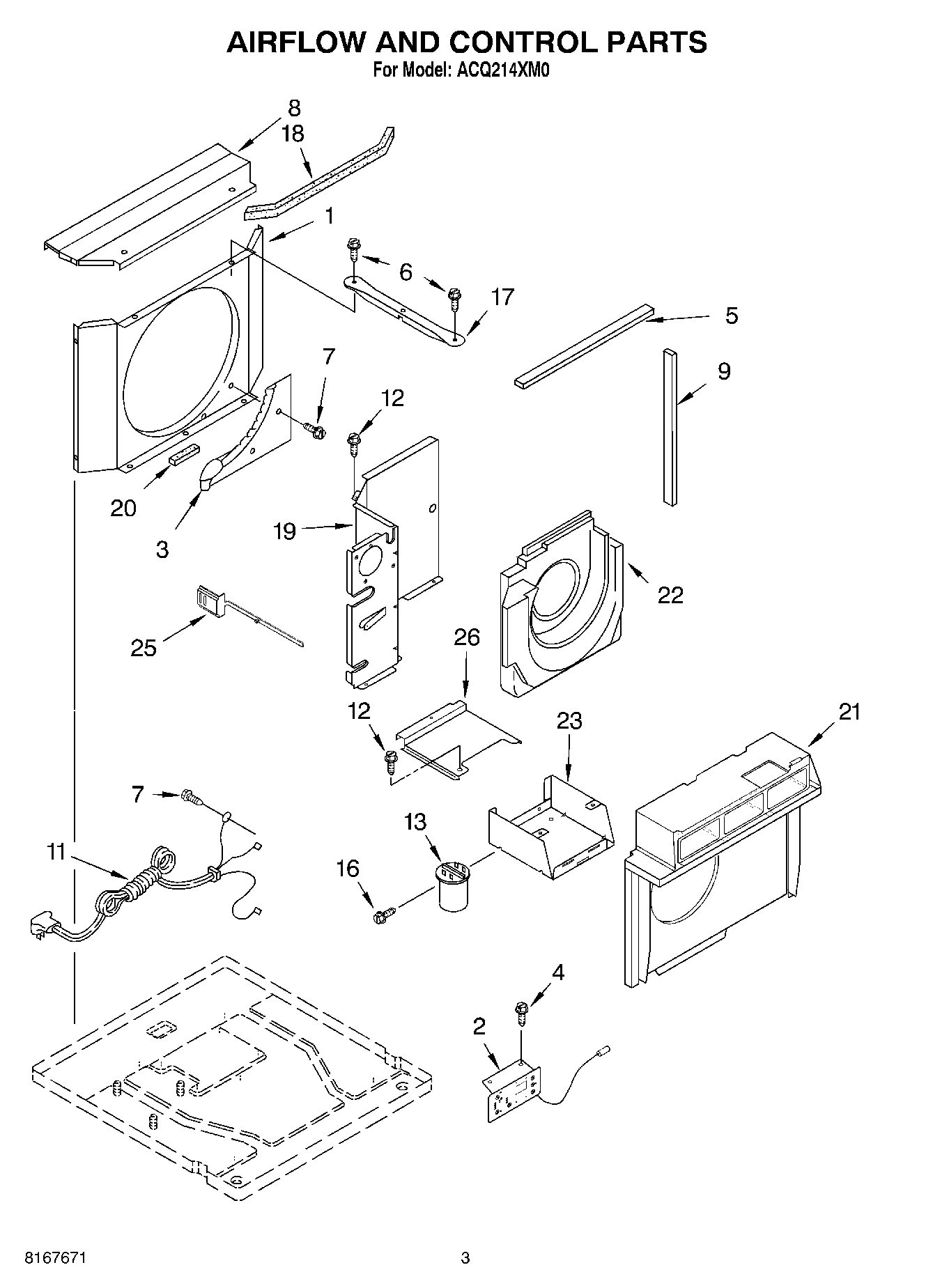

ACQ214XM0 02 – AIRFLOW AND CONTROL PARTS

ACQ214XM0 02 – AIRFLOW AND CONTROL PARTS

Written by

in

ACQ214XM0 02 – AIRFLOW AND CONTROL PARTS

Products

PositionProduct
1Shroud, Condenser
2Control, Electronic
3Cup, Condensate
4Screw 8-18 x .295
5Seal (Top)
6WP308685 Whirlpool Microwave Screw
7WP489069 Whirlpool Compactor Screw
8Top, Condenser
9Seal (Side)
11Cord, Appliance
12Screw, 8 x 3/8
13WP1186509 Whirlpool Air Conditioner Capacitor
16WP489478 Whirlpool Refrigerator Screw
17Support, Unit (2)
18Seal, Shroud
19Dividing Wall
20Seal, Condensate Cup
21Shroud Assembly, Evaporator
22Housing, Air
23Control Box
25Door, Exhaust
26Cover, Control Box
