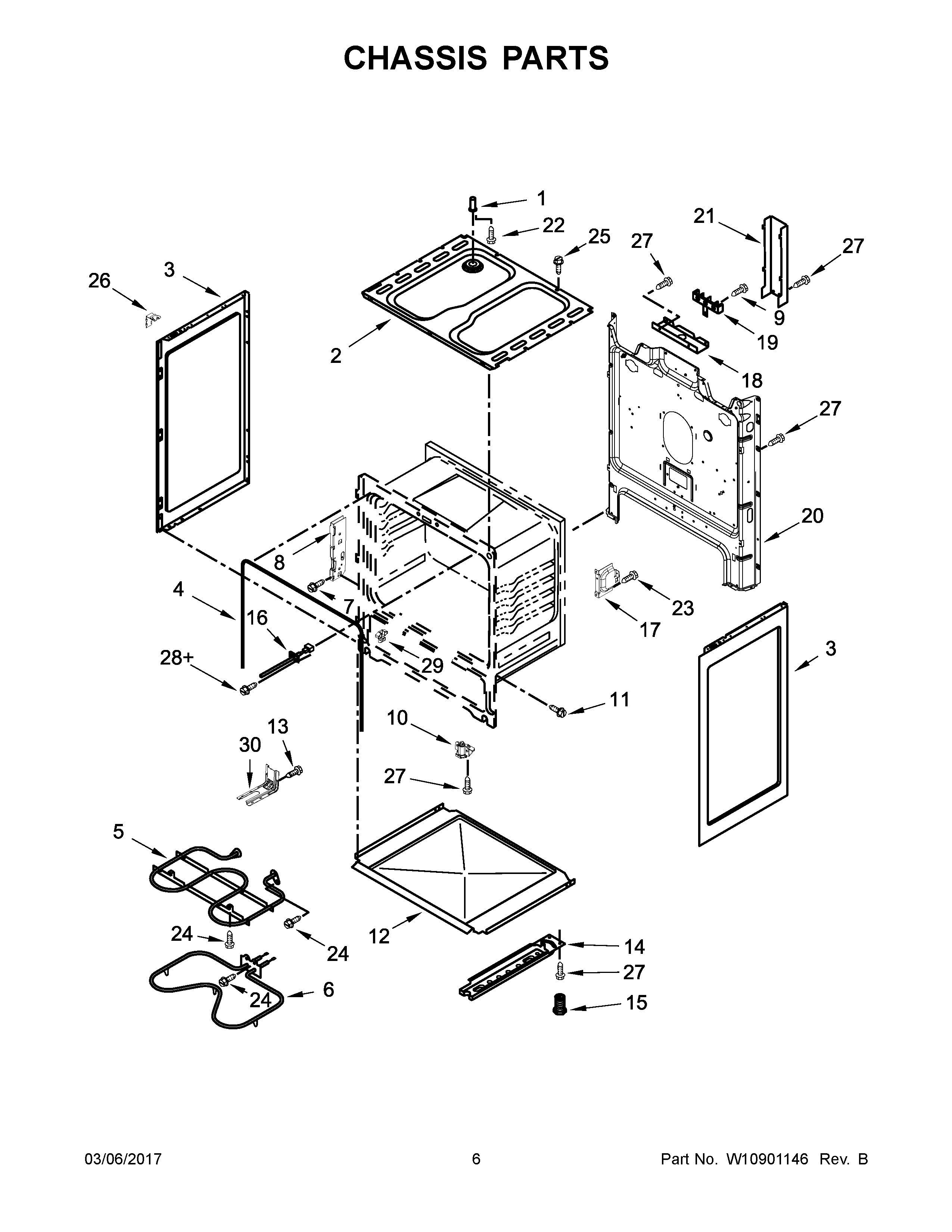

ACR2303MFW0 04 – CHASSIS PARTS

Products

PositionProduct
NIINSULATION, WRAP
NIINSULATION, BACK
1MAY 3169143
2BOX, BURNER
3PANEL, SIDE (WHITE)
4SEAL, DOOR
5ELEMENT, BROIL
6ELEMENT, BAKE
7MAY W10031780
8RECEIVER, HINGE
9SCREW
10ASSEMBLY, FRONT FOOT
11SCREW
12RETAINER, INSULATION
13SCREW, ANTI-TIP KIT
14ASSEMBLY, BASE RAIL (LEFT)
14AASSEMBLY, BASE RAIL (RIGHT)
15FOOT, LEVELING
16SENSOR, OVEN
17CLIP, OVEN SUPPORT
18BRACKET, SERVICE
19BLOCK, TERMINAL
20BACK, MAIN
21COVER, TERMINAL BLOCK
22SCREW
23SCREW
24SCREW
25SCREW
26CLIP, PANEL
27SCREW
28MAY 3400080
29GLIDE, DRAWER FRONT
30BRACKET, ANTI-TIP
