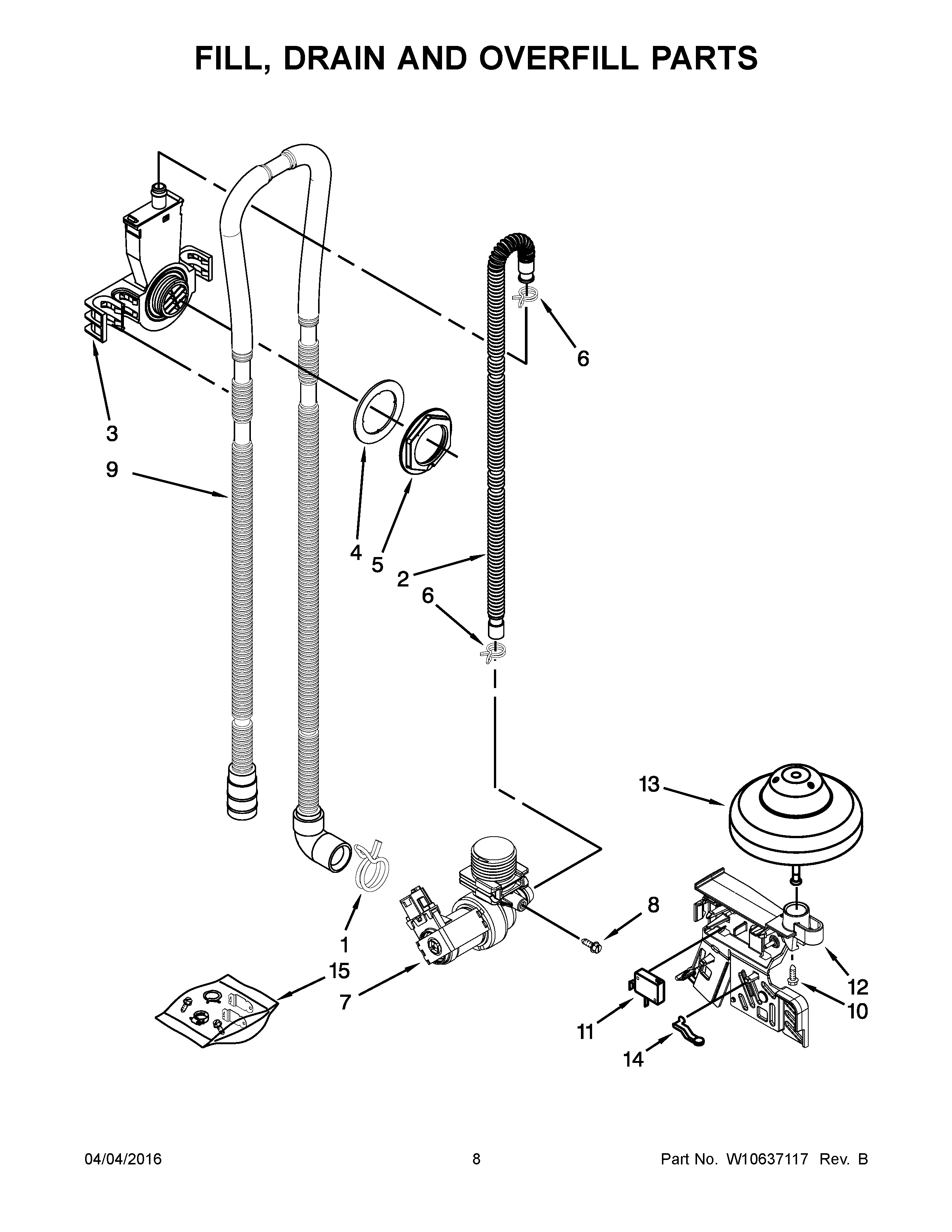

ADB1100AWS3 05 – FILL, DRAIN AND OVERFILL PARTS

Written by

Products

Position	Product
1	MAY 370445
2	HOSE
3	WATER INLET (ALSO ORDER ITEMS 4)
4	MAY 8531323
5	MAY W10508676
6	MAY 371505
7	MAY W10327250
8	Screw
9	DRAIN LOOP WITH CHECK VALVE ASSEMBLY
10	SCREW
11	MAY W10195039
12	HOUSING, OVERFILL
13	MAY W10345285
14	LEVER, OVERFILL SWITCH
15	MISCELLANEOUS PARTS BAG (CONTAINS 2 HOSE CLAMPS, SCREWS & 2UNDER COUNTER BRACKETS)
