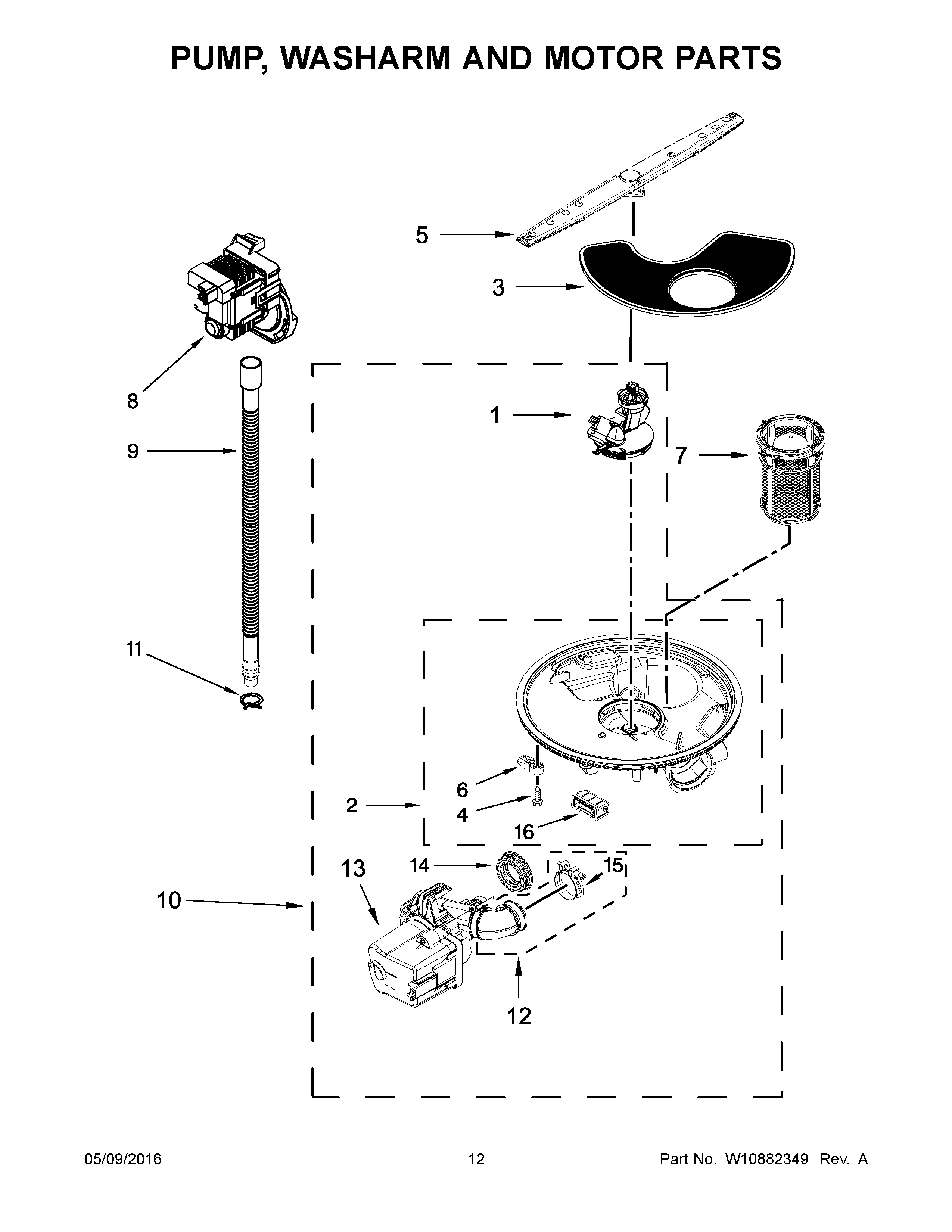

ADB1300AFS1 07 – PUMP, WASHARM AND MOTOR PARTS

Written by

Products

Position	Product
1	COVER, OUTLET
2	MAY W10482461
3	SCREEN
4	MAY W10348407
5	MAY W10319027
6	TAB, SUMP
7	FILTER CUP ASSEMBLY
8	MAY W10724439
9	MAY 8269144
10	MAY W10837402
11	MAY 370445
12	HOSE ASSEMBLY (INCLUDES 2 CLAMPS)
13	MOTOR (ALSO ORDER ITEMS 12 & 14)
14	GROMMET
15	CLAMP, HOSE
16	MOTOR, ISOLATOR
