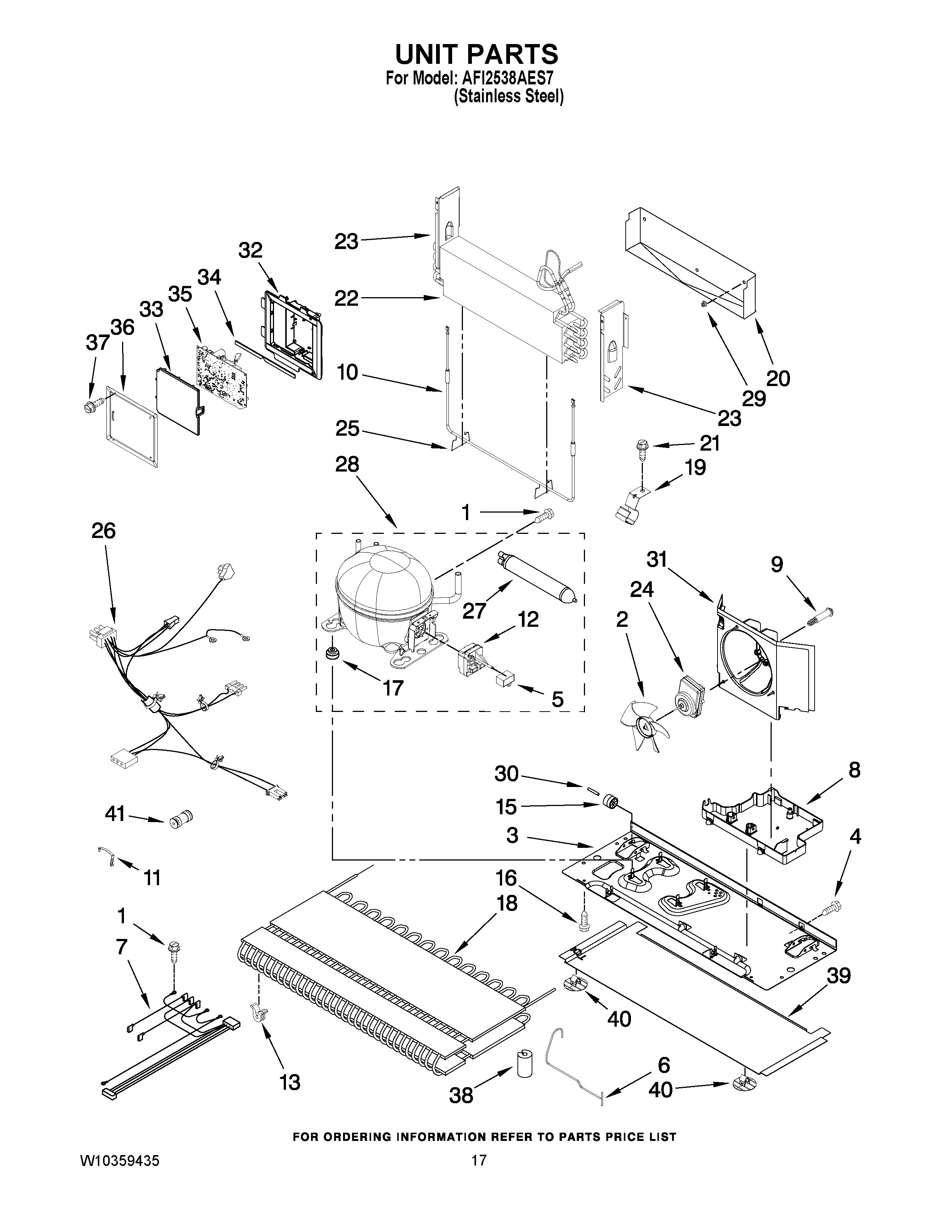

AFI2538AES7 10 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
1	MAY 12992301
2	MAY 12825803
3	MAY W10210985
4	SCREW (10)
5	Capacitator (Production)
6	MAY W10217747
7	MAY W10257095
8	MAY W10296785
9	MAY W10216919
10	MAY 12729123
11	Clip, Retaining
12	START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (PRODUCTION)
13	GROMMET, COND (4)
15	Roller (2)
16	MAY 12992101
17	Grommet (4)
18	MAY W10135026
19	MAY W10281329
20	MAY W10292803
21	MAY 12990701
22	MAY 12959803
23	Dam (Left Side)
23	Dam (Right Side)
24	MAY W10239053
25	W11673433 Whirlpool Clip
26	MAY W10234027
27	Drier
28	Compressor (Includes items 11,12,17,27,29)
29	MAY 10623002
30	Axle, Roller (2)
31	SHROUD
32	MAY 12957601
33	MAY 12957701
34	GASKET-HV BOX
35	MAY W10312695
36	MAY 12961602
37	SCREW
38	GROMMET, CONDENSER
39	EXTENSION, BASEPAN
40	MAY W10206339
41	CONNECTOR, WATER
