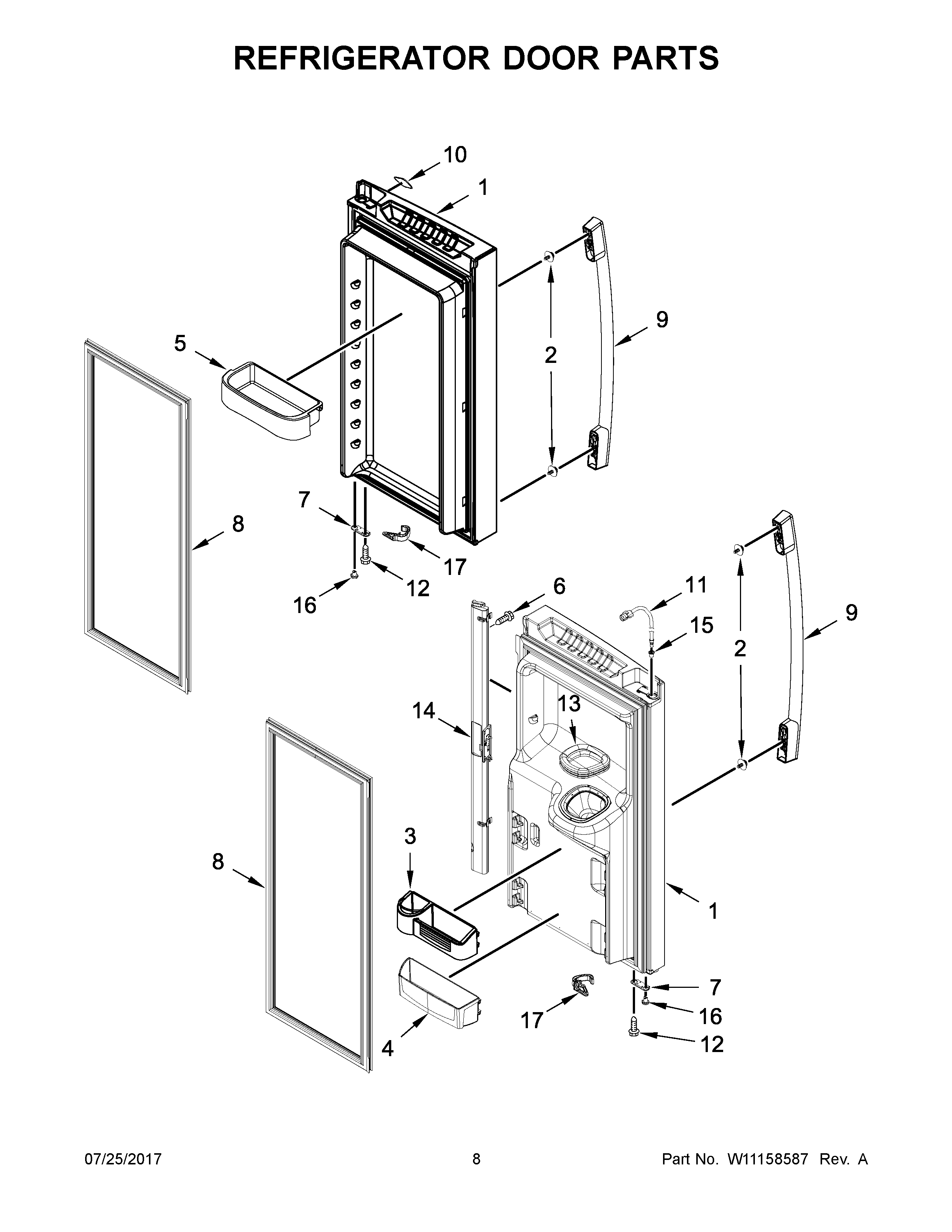

AFI2539ERW02 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1CMAY 13107316B
1BMAY 13107316W
1AMAY 13107322B
1MAY 13107322W
2MAY W10288153
3MAY W10323808
4MAY W10212139
5MAY W10224961
6MAY 12990204
7MAY 12968202W
7AMAY 12968202B
8GASKET, DOOR RIGHT HAND (WHITE)
8GASKET, DOOR (BLACK)
9AHANDLE, DOOR (BLACK)
9MAY W10222984
10BADGE
11MAY W10511930
12Screw (8)
13MAY W10287601
14MAY 12722815W
14AMAY 12722815B
15MAY 12996601
16AMAY 12028505B
16MAY 12028505W
17CLATCH, DOOR CLOSER RIGHT HAND (BLACK)
17LATCH, DOOR CLOSER LEFT HAND (WHITE)
17ALATCH, DOOR CLOSER LEFT HAND (BLACK)
17BLATCH, DOOR CLOSER RIGHT HAND (WHITE)
