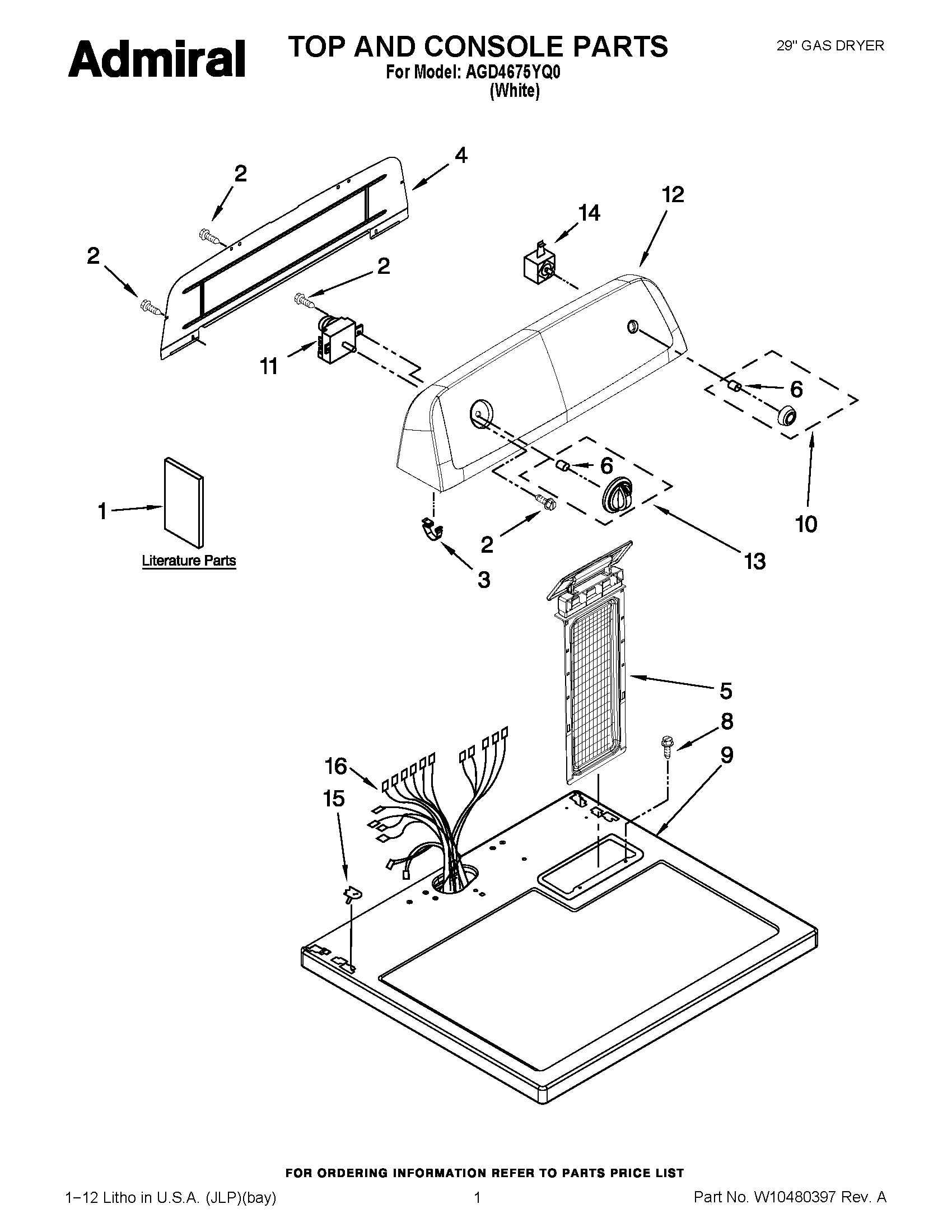

AGD4675YQ0 01 – TOP AND CONSOLE PARTS

AGD4675YQ0 01 – TOP AND CONSOLE PARTS

Written by

in

AGD4675YQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTRUCTION INSTALLATION
1MAY W10185990
1USE AND CARE GUIDE
2Screw
3MAY 8312709
4MAY W10416486
5LINT SCREEN WHITE
6CLIP, SPRING
8SCREW
9MAY 8559800
10KNOB, PUSH TO START (WHITE)
11MAY W10436306
12MAY W10295167
13ASSEMBLY, TIMER KNOB (WHITE)
14MAY W10420741
15Nut, Push-In
16MAY W10450287
