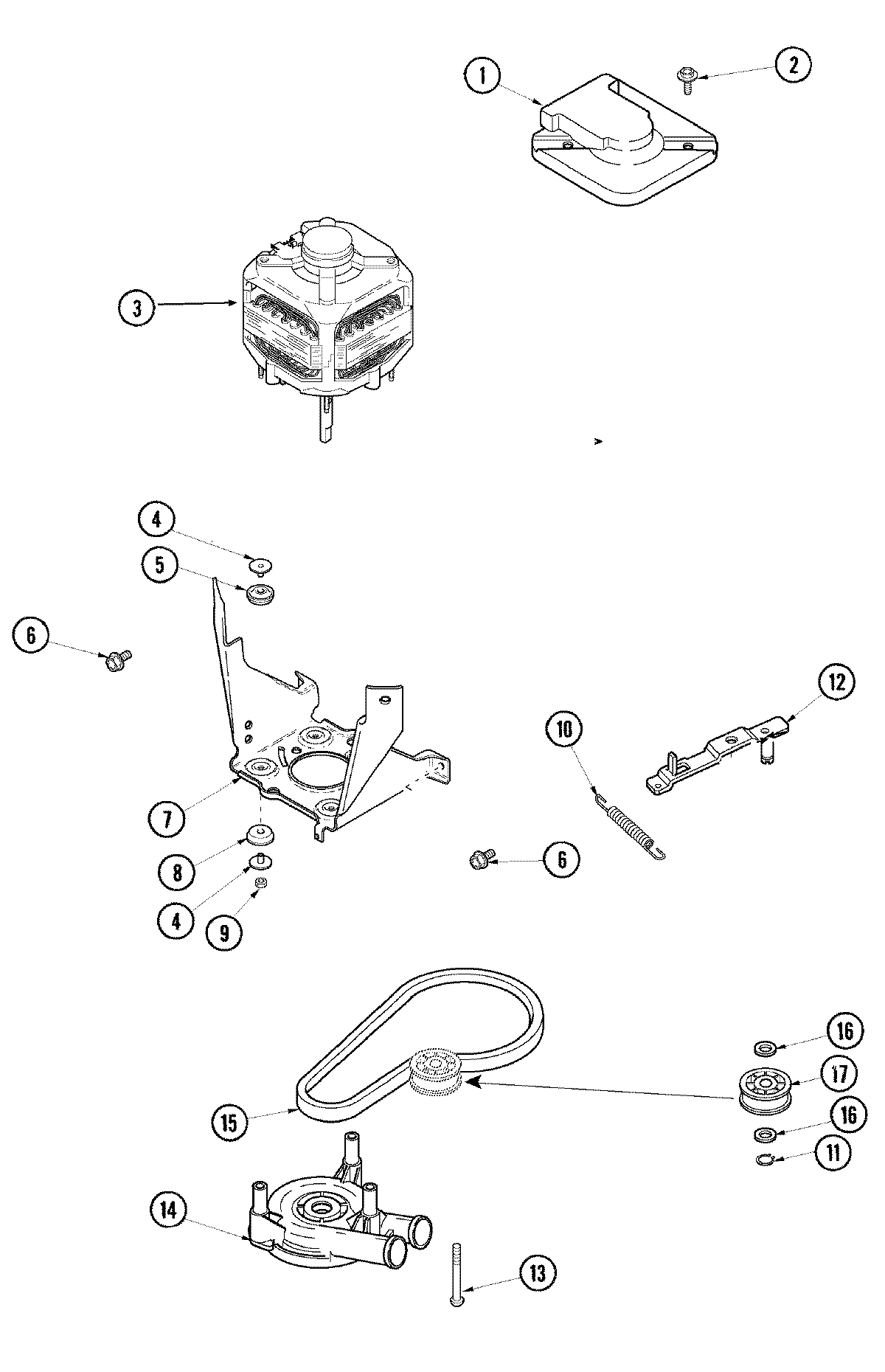

ALW210RMC 06 – MOTOR, PUMP AND IDLER ASSEMBLY

Products

Position	Product
1	MAY 40112301
2	WP3390631 Whirlpool Screw
3	MAY 40084501
3	MAY 40116402
3	357030 Whirlpool Clamp
4	MAY 40053701
5	MAY 40053801
6	MAY 40105601
7	MAY 40015501
8	MAY 40054301
9	MAY 40095101
10	MAY 37366
11	MAY 23748
12	MAY 27001028
13	MAY 40063701
14	MAY 40040301
15	WP27001006 Whirlpool Drive Belt
16	MAY 52549
17	MAY 40045001
17	MAY 40038901
17	WPW10139757 Whirlpool Nut
