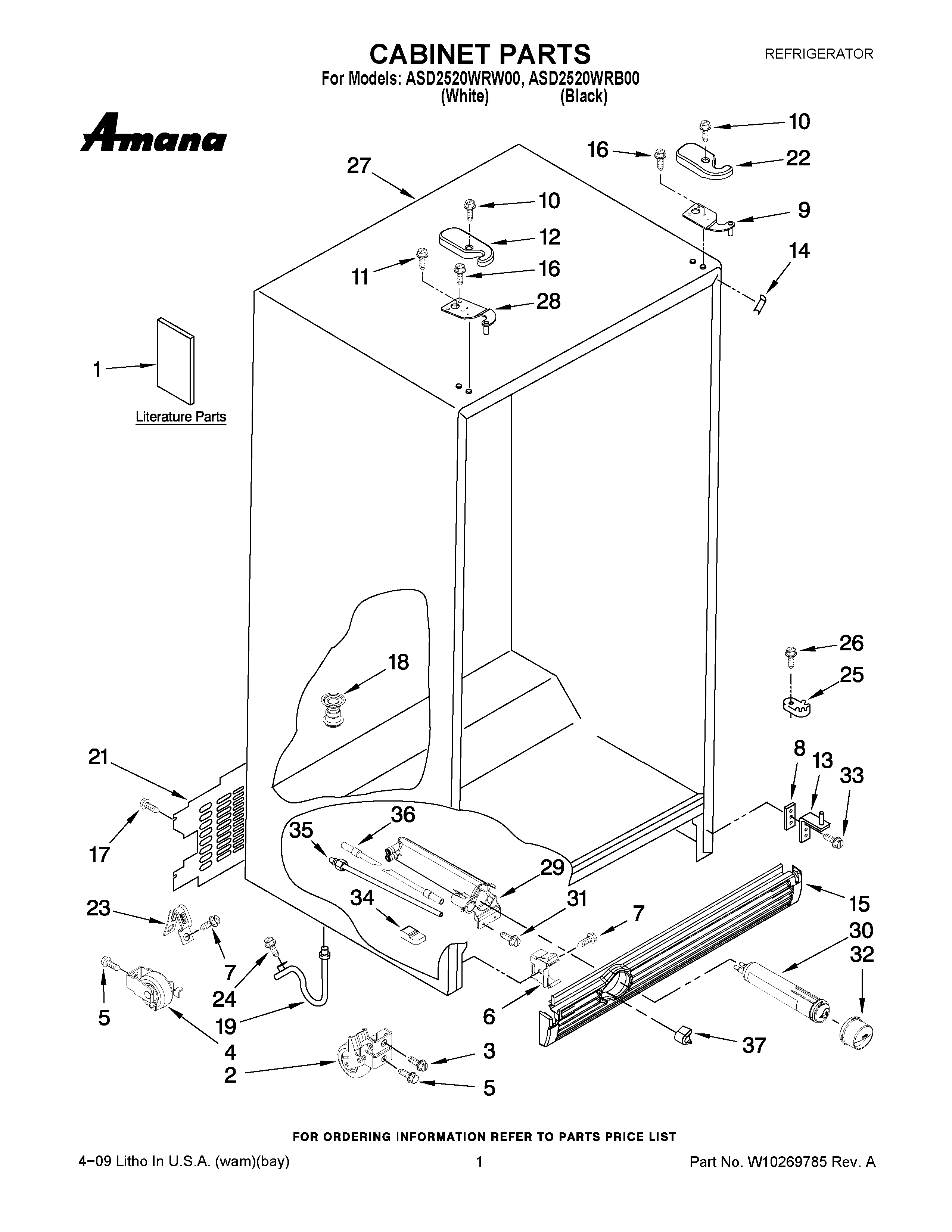

ASD2520WRB00 01 – CABINET PARTS
Written by
in
ASD2520WRB00 01 – CABINET PARTS
Products
Position
Product
1
MAY W10154390
1
MAY W10158907
1
MAY 628370
1
MAY W10234042
1
MAY W10237701
2
MAY 2174748
3
MAY 3400517
4
MAY 2196236
5
MAY 489427
6
MAY 2155013
7
MAY 489478
8
Shim (2)
9
HINGE TOP RC
10
MAY 8281227
11
MAY 8281149
12
HINGE COVER FC (BLACK)
12
HINGE COVER FC (WHITE)
13
MAY 2217075
14
Corner Filler (2) (White)
14
MAY 2201017
15
MAY 2260500W
15
MAY 2260500B
16
MAY 489497
17
Screw (3)
18
MAY 2304888
19
MAY W10153550
21
MAY 2188735
22
HINGE COVER RC (WHITE)
22
HINGE COVER RC (BLACK)
23
MAY 549193
24
MAY 489084
25
MAY 2155311
26
MAY 489483
28
HINGE TOP, FC
29
Housing, Water Filter
30
MAY 4396841
31
MAY 489500
32
MAY 2260502B
32
MAY 2260502W
33
Screw (4)
34
Block, Housing Support
35
Tube, Filter Outlet
36
MAY 2319867
37
Button, Filter (Black)
37
MAY 2260503W
←
