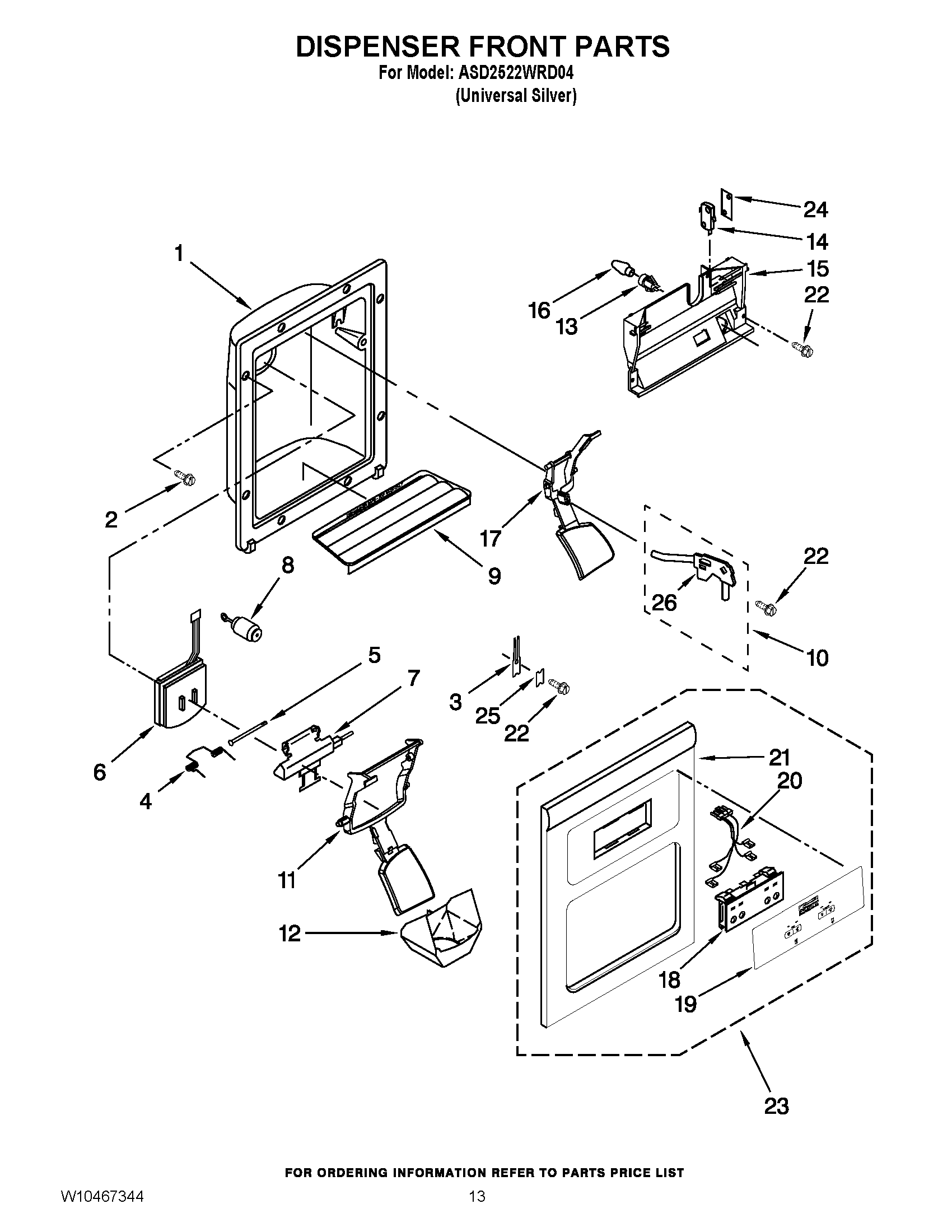

ASD2522WRD04 08 – DISPENSER FRONT PARTS

ASD2522WRD04 08 – DISPENSER FRONT PARTS

Written by

in

ASD2522WRD04 08 – DISPENSER FRONT PARTS

Products

Position	Product
2	MAY W10142284
3	MAY 2194719
4	MAY W10224328
5	MAY 2196195
6	MAY 2180353
7	MAY 2304355
8	MAY 2205686
9	GRILLE, OVERFLOW (BLACK)
10	MAY 2304317
11	MAY W10152854
12	MAY 2180224
13	MAY 2180200
14	Switch (4)
15	MAY W10282667
16	MAY 3406124
17	MAY W10152859
20	MAY 2187409
21	LINER (NOT A SERVICEABLE PART)
22	SCREW 9-12 X 1/2
23	MAY W10204970B
24	MAY 625834
25	MAY 2195051
26	MAY 2304673
