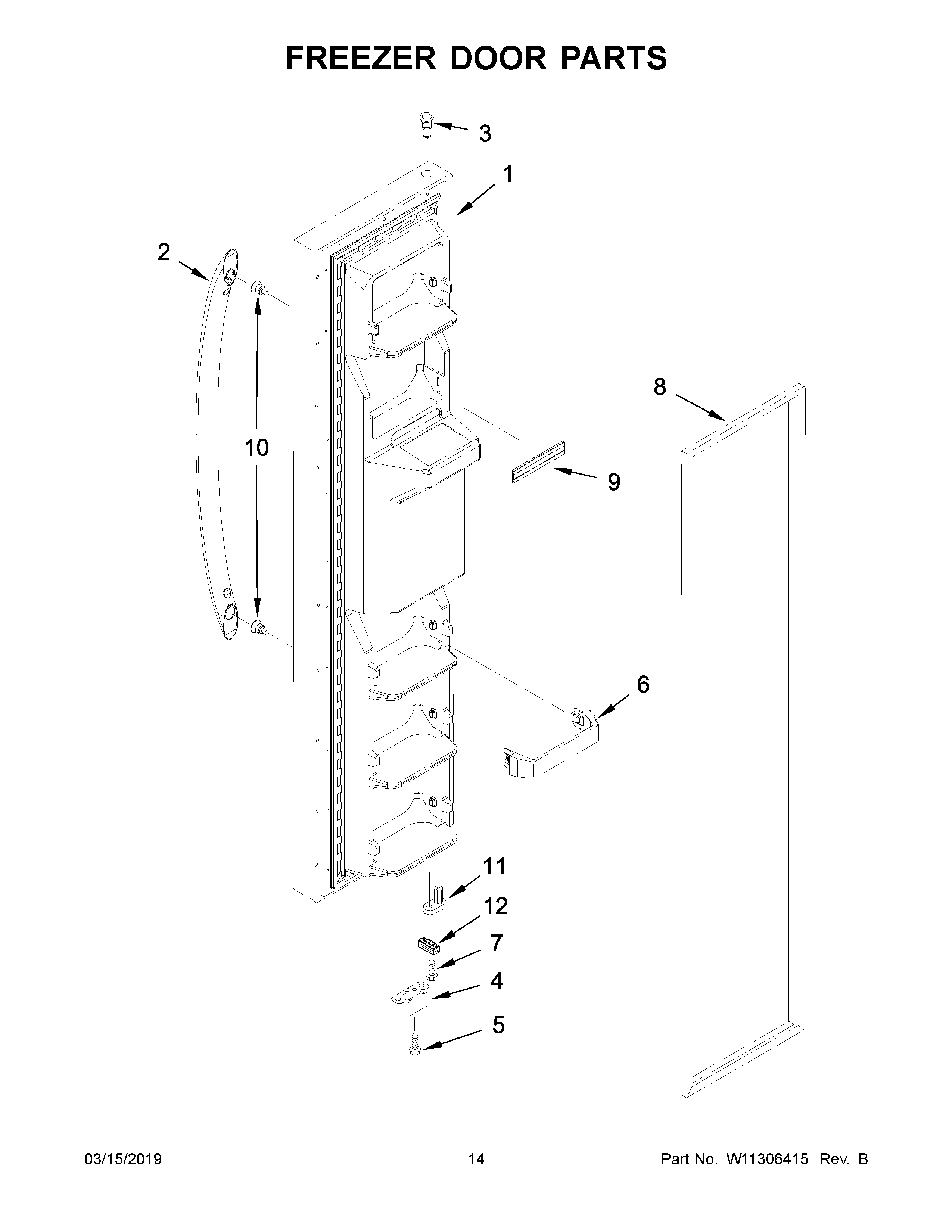

ASI2175GRB01 08 – FREEZER DOOR PARTS

Products

PositionProduct
1BDOOR, FREEZER (INCLUDES GASKET AND DISPENSER PARTS) (STAINLESS)
1DOOR, FREEZER (INCLUDES GASKET AND DISPENSER PARTS) (WHITE)
1ADOOR, FREEZER (INCLUDES GASKET AND DISPENSER PARTS) (BLACK)
2BHANDLE (GREY)
2AHANDLE (BLACK)
2HANDLE (WHITE)
3THIMBLE
4BRACKET, DOOR STOP (BLACK)
5SCREW
6TRIM, DOOR
7SCREW
8AGASKET, DOOR (BLACK)
8GASKET, DOOR (BEIGE)
9MAY W10307492
10MAY W10288153
11THIMBLE, CAM
12ABUMPER, DOOR (BLACK)
12BUMPER, DOOR (WHITE)
