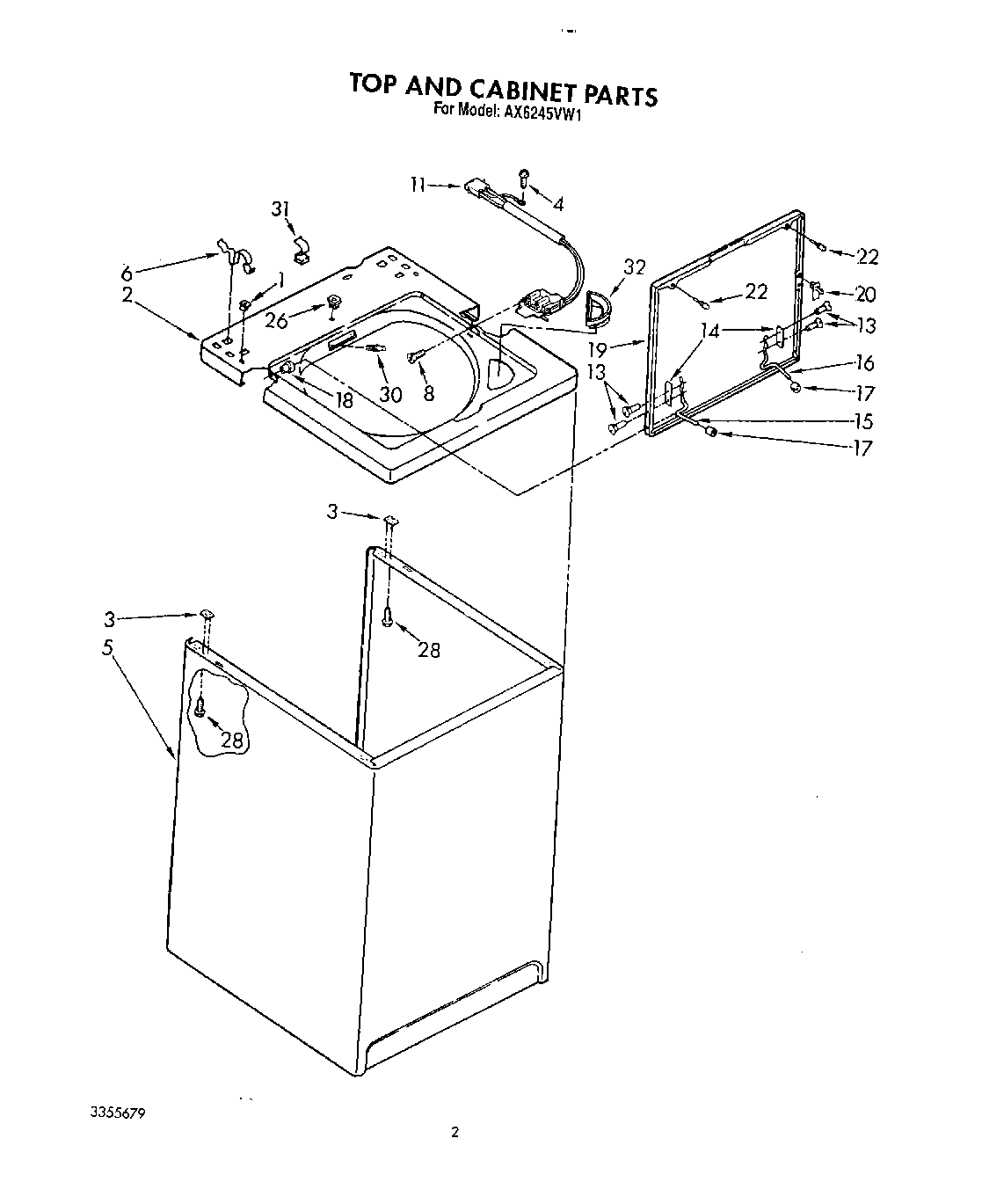

AX6245VL1 02 – TOP AND CABINET, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3355679
	Golden Harvest (Uncut)
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	Shipping Kit
	WPL 72112
	WPL 89121
	WP285195 Whirlpool Sealer Assembly
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	WPL LIT3356190
	WPL LIT3352144
	WPL LIT3356742
	WPL LIT3351746
	Golden Harvest
	Drain Protector (Not Included)
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	Leveler (Thinner)
	350938 Whirlpool Spray Gun
	Almond (Uncut)
	350930 Whirlpool White Spray Paint
	72113 Whirlpool Touch-Up Paint
	63580 Whirlpool Washer Fabric Softener Dispenser
	350572 Whirlpool Oil Transmission 15 Oz
	285320 Whirlpool Washer Siphon Break Kit
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
1	Nut, Push-In (2)
2	Top (Golden Harvest)
2	Top (White)
2	Top (Almond)
3	WP62750 Whirlpool Spacer
5	Cabinet (Almond)
5	Cabinet (Golden Harvest)
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
8	Screw & Washer, Lid Switch (2)
11	285671 Whirlpool Lid Switch Assembly
13	SCREW
14	WP21097 Whirlpool Pad
15	WP54584 Whirlpool Hinge
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	Lid (Almond)
19	Lid (Golden Harvest)
19	Lid (White)
20	WP358684 Whirlpool Strike Assembly
22	WP9724509 Whirlpool Bumper
26	Stop, Push-In Top
28	SCREW
30	Rivet, Serial Nameplate
31	WP90016 Whirlpool Clip
32	WP3362952 Whirlpool Bezel
