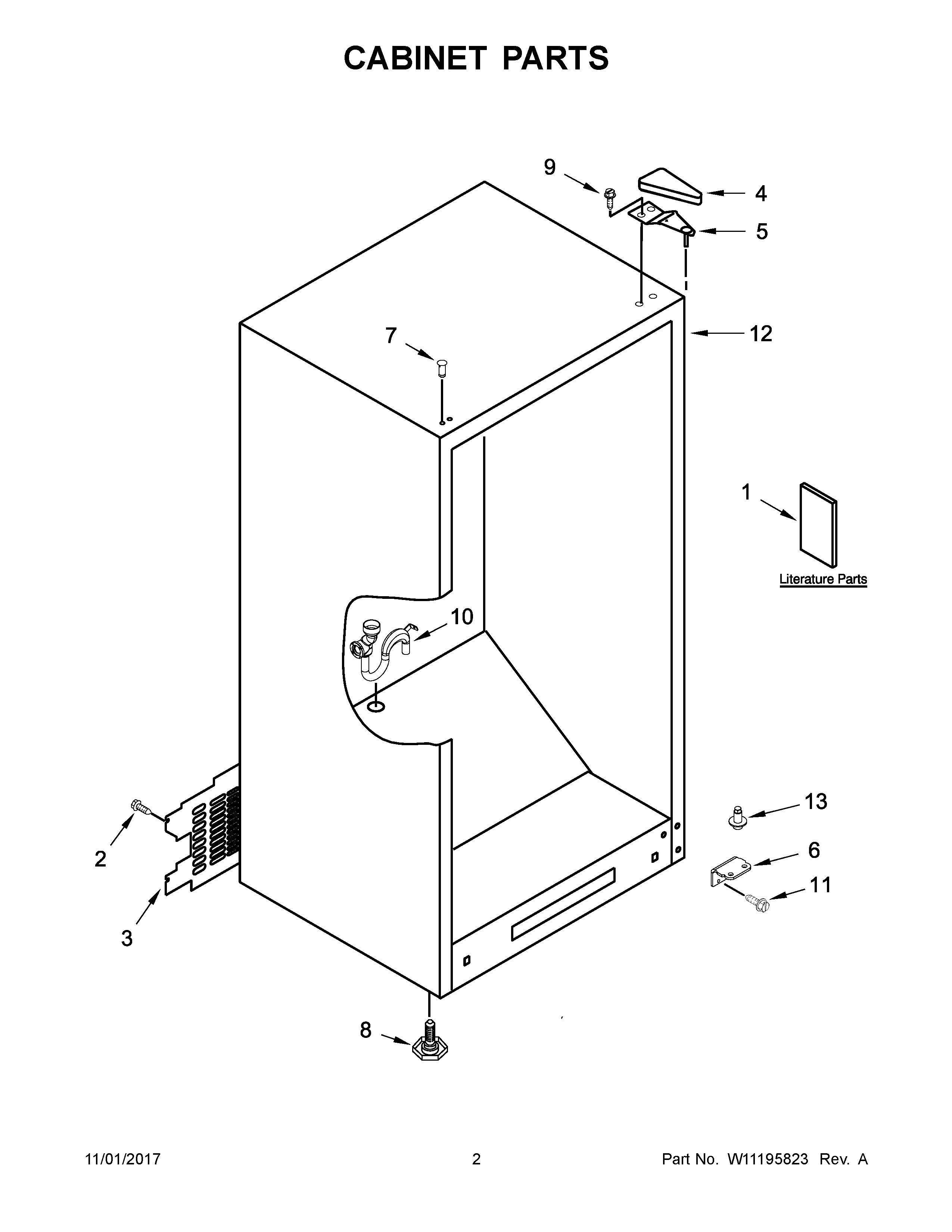

AZF33X16DW02 02 – CABINET PARTS

AZF33X16DW02 02 – CABINET PARTS

Written by

in

AZF33X16DW02 02 – CABINET PARTS

Products

PositionProduct
1BMAY W10653921
1AMAY W11115693
1MAY W10668409
2MAY 3-80732-014
3COVER, UNIT
4Cover, Hinge (White)
5MAY 2261963
6MAY W10574264
7MAY W10520304
8LEG, LEVELER (BLACK)
9Screw (4)
10MAY W10717194
11MAY W10709365
12LINER (NOT A SERVICEABLE PART)
13MAY W10574325
