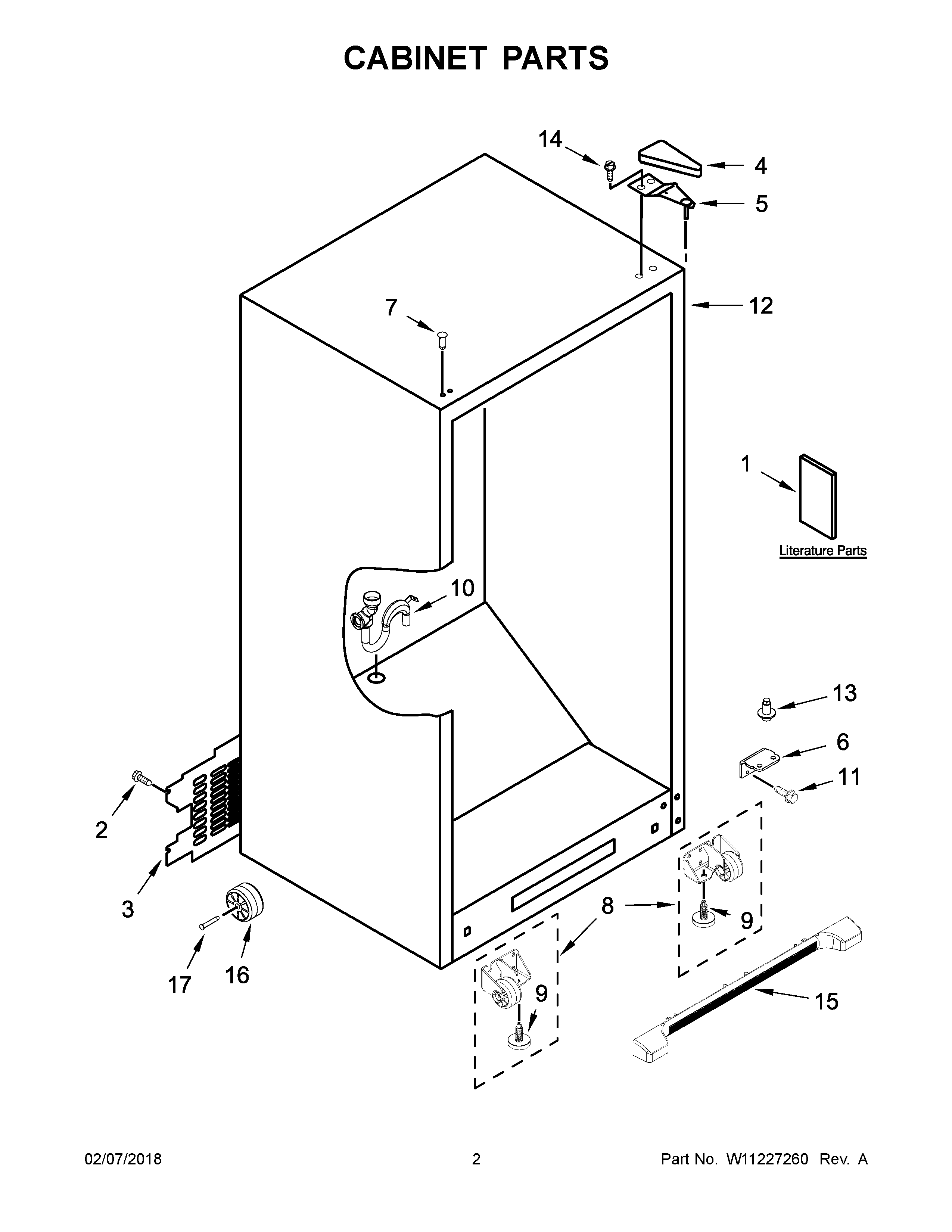

AZF33X18DW02 02 – CABINET PARTS

AZF33X18DW02 02 – CABINET PARTS

Written by

in

AZF33X18DW02 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1MAY W10668409
1BMAY W10653921
2MAY 3-80675-105
3COVER, UNIT
4Cover, Hinge (White)
5MAY 2261963
6MAY W10574264
7MAY W10520304
8AROLLER ASSEMBLY (LEFT HAND)
8ROLLER ASSEMBLY (RIGHT HAND)
9Brake, Foot
10MAY W10717194
11MAY W10709365
12LINER (NOT A SERVICEABLE PART)
13MAY W10574325
14Screw (4)
15ASSEMBLY, GRILLE (WHITE)
16Roller
17MAY 2179826
