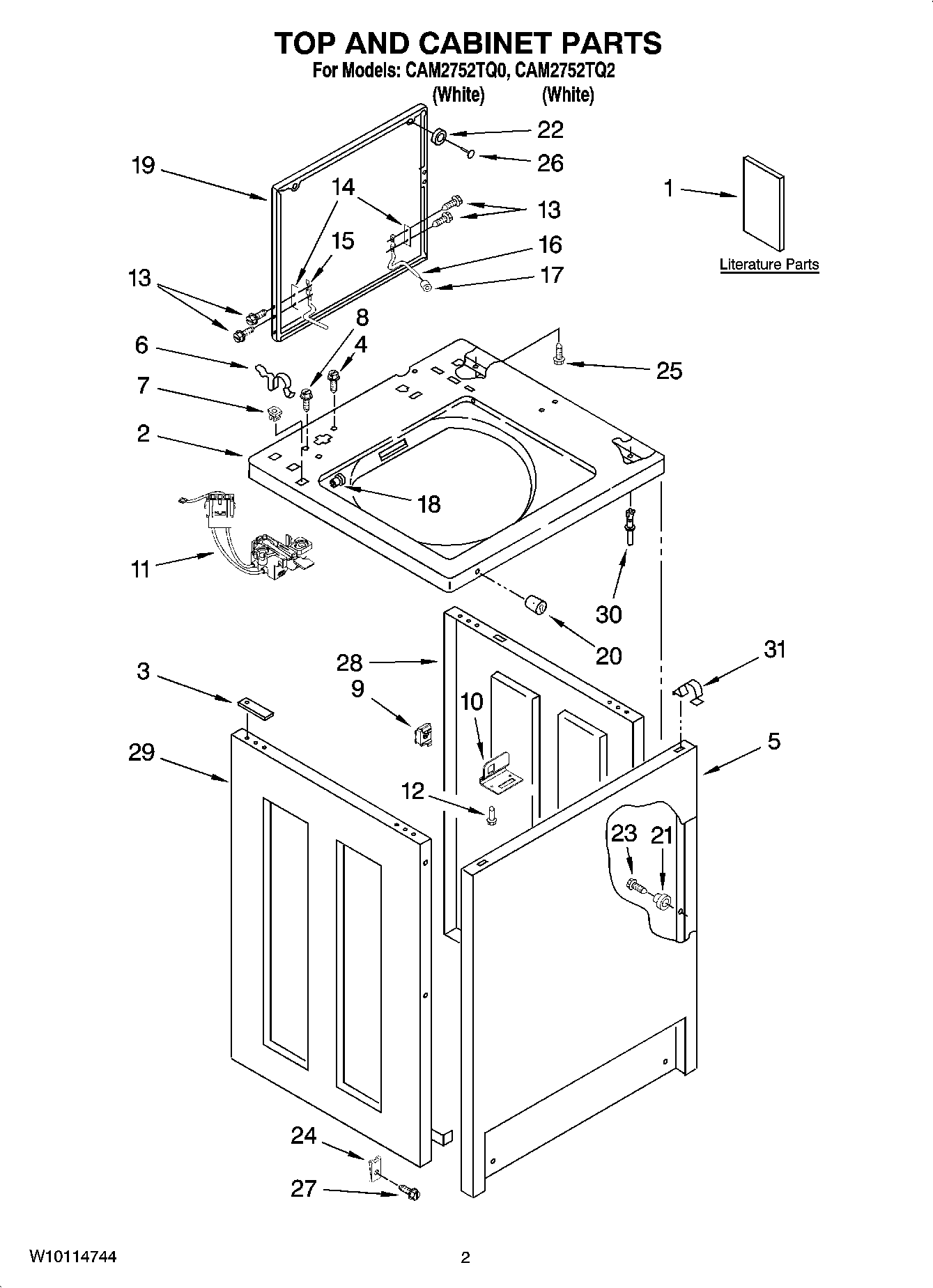

CAM2752TQ2 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Energy Guide
1	WPL 8316532
1	Wiring Diagram
1	Repair Parts List
2	Top
3	Spacer, Cabinet To Top (4)
4	WP3351614 Whirlpool Screw
5	WP3358500 Whirlpool Panel
6	WP62780 Whirlpool Cabinet Clip
7	Nut, Push-In (2)
8	Screw, Lid Switch (2)
9	WP90406 Whirlpool Nut
10	Bracket, Lock
11	WP8054980 Whirlpool Lid Switch Assembly
12	Rivet (2)
13	SCREW
14	WP21097 Whirlpool Pad
15	WP8524784 Whirlpool Hinge Assembly
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	WPW10193854 Whirlpool Lid Assembly
20	WP387371 Whirlpool Plug
21	Locator (4)
22	BUMPER
23	WP9741232 Whirlpool Dishwasher Screw
24	WP98234 Whirlpool Nut
25	Screw (2)
26	WP356907 Whirlpool Rivet
27	WP3373329 Whirlpool Dishwasher Screw
28	Side Panel (RH)
29	Side Panel (LH)
30	Pin, Locator (2)
31	WP18776 Whirlpool Lock
