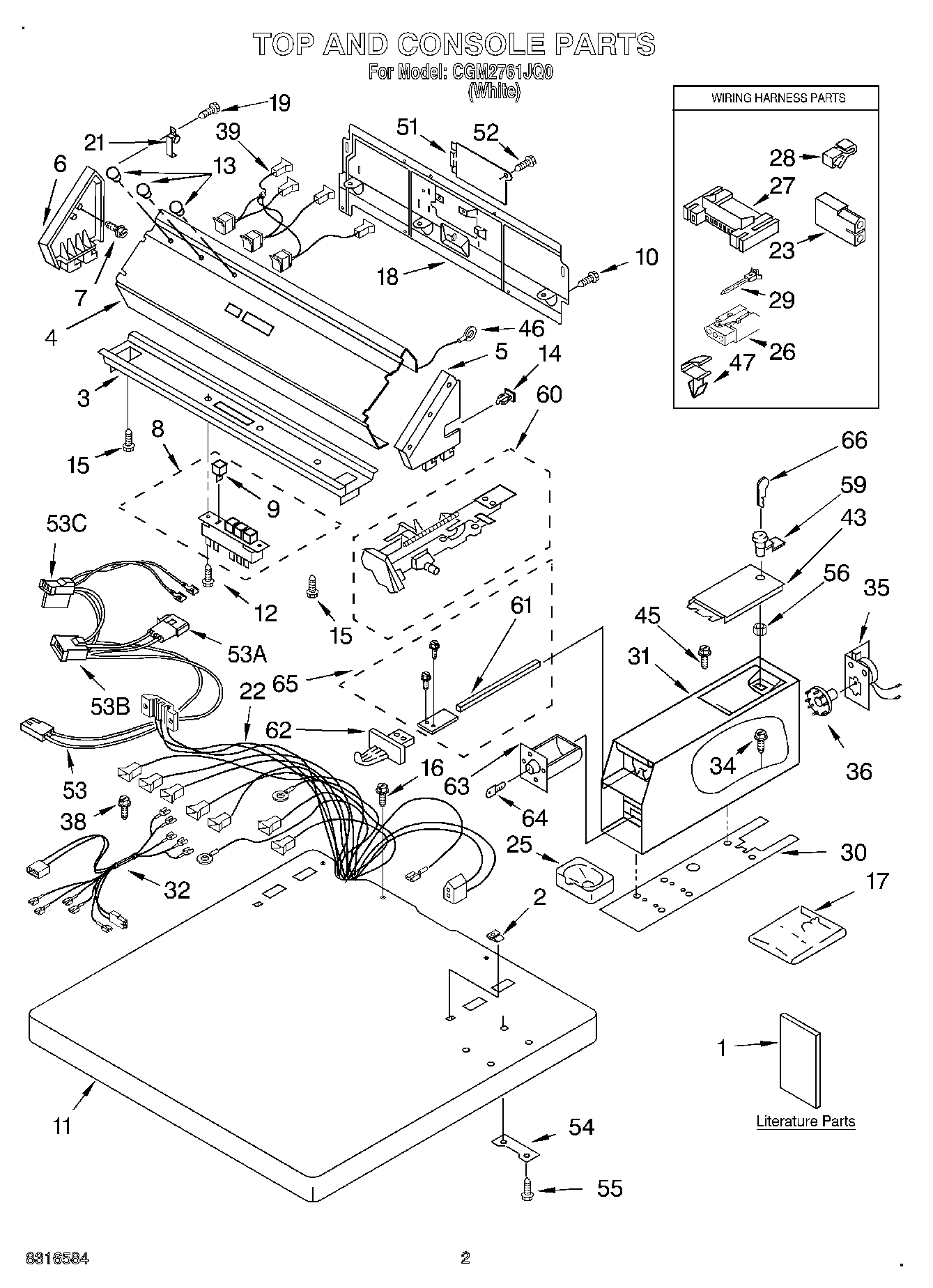

CGM2761JQ0 02 – TOP AND CONSOLE, LITERATURE

Products

PositionProduct
1Literature Parts (Label, Wiring Diagram)
1Literature Parts (Instructions. Installation)
1Literature Parts (Repair Parts List)
2WP357213 Whirlpool Hinge Stopper
3Bracket, Control
4Panel, Control
5Cap, End (R.H.)
6W11686050 Whirlpool Drive Motor
7WPW10109200 Whirlpool Screw
9SWITCH-PB
10WP693995 Whirlpool Screw
11Top
12WP355214 Whirlpool Screw
13WP3348109 Whirlpool Light Lens
14WP689559 Whirlpool Nut
15WP3390631 Whirlpool Screw
16SCREW
17279950 Whirlpool Funnel
18Panel, Rear (Upper)
19WP488729 Whirlpool Refrigerator Door Screw
21Hinge, Console (2)
22Harness, Main
23Receptacle, Latching (2-Way) (Uses Terminal 94614)
25WP385421 Whirlpool Coin Operated Laundry Funnel
26WPL 717315
273395683 Whirlpool Connector
28W10113937 Whirlpool Clamp
29WP3391018 Whirlpool Wire Tie
30WP3954812 Whirlpool Cushion
31WPW10461200 Whirlpool Case
323401126 Whirlpool Wire Harness
34W11715721 Whirlpool Screw Assembly
35279737 Whirlpool Dryer Load Timer
36WP339855 Whirlpool Cam
39Lights, Indicator Assembly
43W11283272 Whirlpool Washer Dryer Meter Case Access Door
45339805 Whirlpool Screw
46Wire, Ground
47WP3394427 Whirlpool Clip
51Cover, Terminal Block
52WP90767 Whirlpool Screw
53BWP3403498 Whirlpool Connector
53CWP3403499 Whirlpool Connector
53WP3401850 Whirlpool Wire Harness
53APlug, 3-Way
543347825 Whirlpool Plate
55W10841059 Whirlpool Screw
56WP90406 Whirlpool Nut
