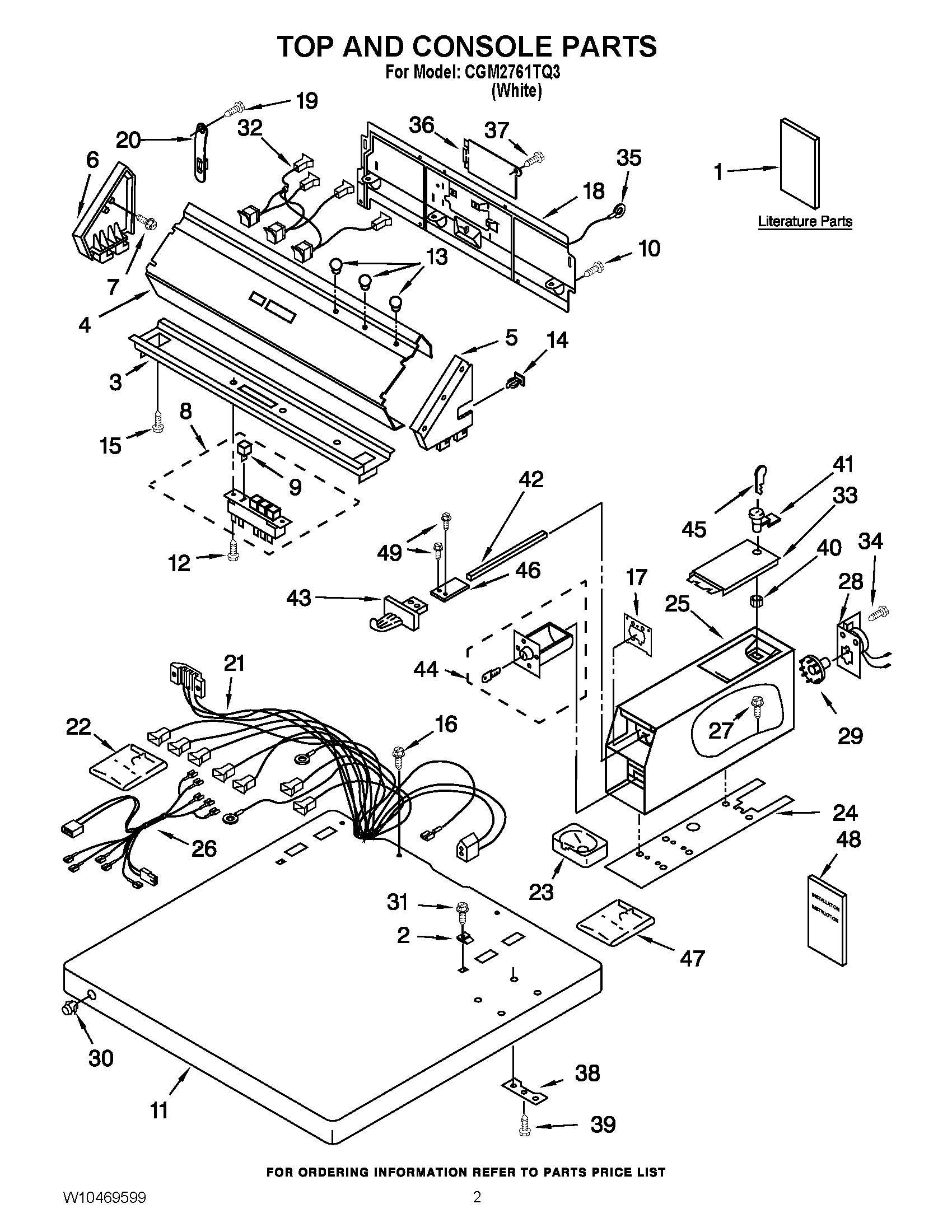

CGM2761TQ3 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
NIWPL 8316265
NIInserts (Not Shown
1REPAIR PARTS LIST
1Instructions, Installation
1Wiring Diagram
2WP357213 Whirlpool Hinge Stopper
3Bracket, Control
4Panel, Control
5Cap, End (R.H.)
6W11686050 Whirlpool Drive Motor
7WPW10109200 Whirlpool Screw
9SWITCH-PB
10WP693995 Whirlpool Screw
11Top
12WP489128 Whirlpool Refrigerator Screw
13WP3348109 Whirlpool Light Lens
14WP689559 Whirlpool Nut
16SCREW
17279950 Whirlpool Funnel
18W11089934 Whirlpool Rear Panel
19WP488729 Whirlpool Refrigerator Door Screw
20WP8568314 Whirlpool Strap
21WP8529870 Whirlpool Wire Harness
22WP3406965 Whirlpool Coin Chute
23WP385421 Whirlpool Coin Operated Laundry Funnel
24WP3954812 Whirlpool Cushion
25WPW10461200 Whirlpool Case
263401126 Whirlpool Wire Harness
27W11715721 Whirlpool Screw Assembly
28W11451464 Whirlpool Dryer Timer
29WP343777 Whirlpool Cam
29WP3387974 Whirlpool Cam
30WP387371 Whirlpool Plug
31WP8281182 Whirlpool Screw Assembly
32Lights, Indicator Assembly
33W11283272 Whirlpool Washer Dryer Meter Case Access Door
34339805 Whirlpool Screw
35GROUND WIRE
36W10819767 Whirlpool Cover
37WP90767 Whirlpool Screw
383347825 Whirlpool Plate
39W10841059 Whirlpool Screw
40WP90406 Whirlpool Nut
41W11315637 Whirlpool Lock Assembly
42WP8576635 Whirlpool Bolt
43W11126319 Whirlpool Washer Dryer Coin Chute
44W11190039 Whirlpool Coin Box Assembly
45CABINET (NOT A SERVICEABLE PART)
463390424 Whirlpool Extension
47WPL 8316524
48WPL 8316532
49WP3400029 Whirlpool Dishwasher Nut
