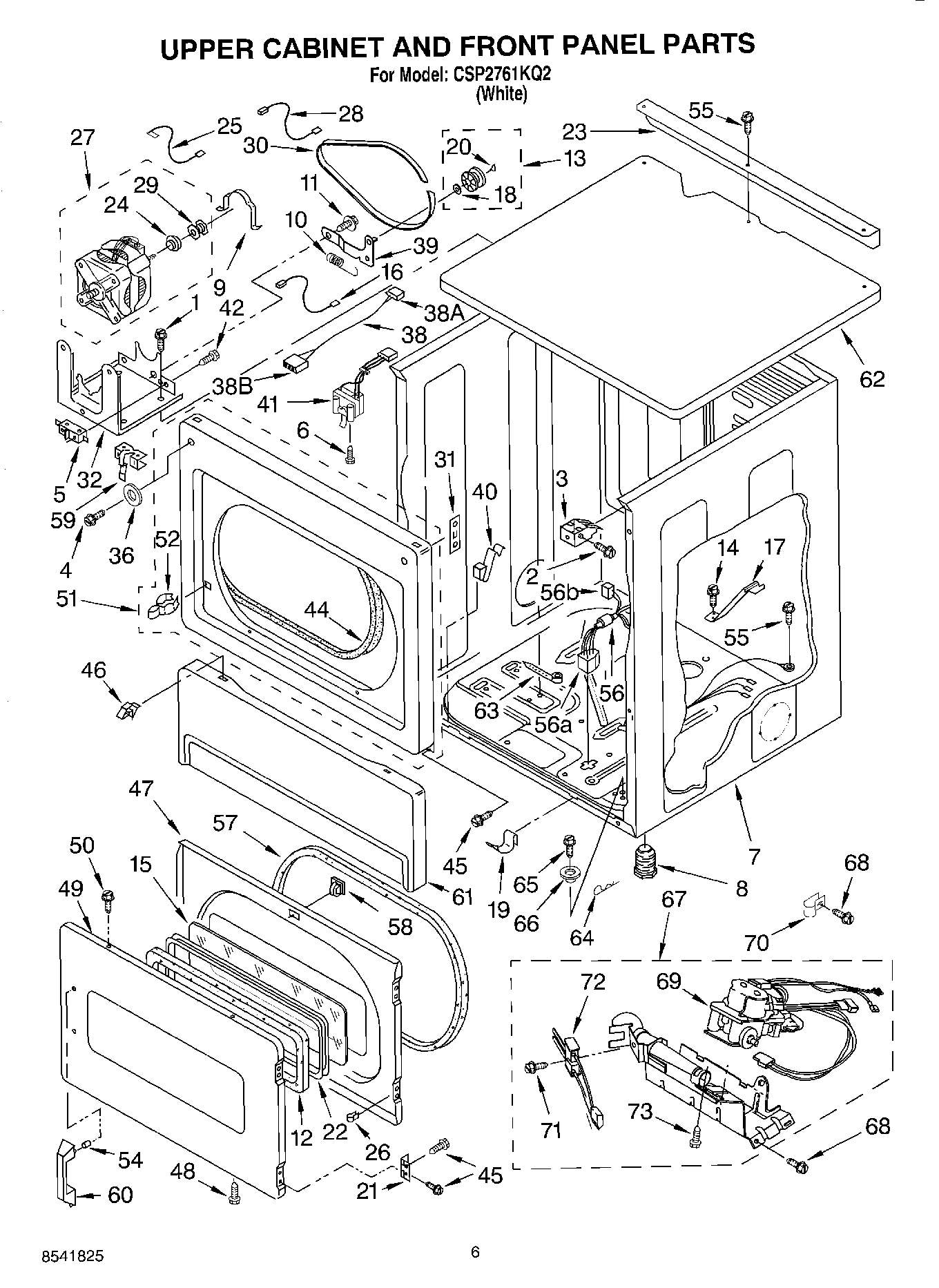

CSP2761KQ2 04 – UPPER CABINET AND FRONT PANEL PARTS – OPTIONAL PAR

CSP2761KQ2 04 – UPPER CABINET AND FRONT PANEL PARTS – OPTIONAL PAR

Written by

in

CSP2761KQ2 04 – UPPER CABINET AND FRONT PANEL PARTS – OPTIONAL PAR

Products

Position	Product
1	SCREW
2	681615 Whirlpool Screw
3	3391846 Whirlpool Clip
4	WP3373329 Whirlpool Dishwasher Screw
5	279782 Whirlpool Lid Switch
6	WP3395530 Whirlpool Screw
7	Cabinet (Upper)
8	WP689172 Whirlpool Leveling Feet
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	Gasket, Window
13	279640 Whirlpool Dryer Idler Pulley Kit
15	Window (2)
16	Wire, Belt Switch
17	W10181903 Whirlpool Bracket
18	WPW10121334 Whirlpool Washer
19	WP297092 Whirlpool Clip
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	W11175815 Whirlpool Hinge
22	3392914 Whirlpool Window Frame
23	3979115 Whirlpool Bracket
24	WP3393657 Whirlpool Belt Retainer
26	Nut, “U“ (4)
27	W10841144 Whirlpool Drive Motor
28	3398948 Whirlpool Wire
29	WP8066184 Whirlpool Dryer Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
31	WP3390902 Whirlpool Clip
32	WP3387118 Whirlpool Base Assembly
36	Washer
38A	WP717253 Whirlpool Dishwasher Connector
38B	3936144 Whirlpool Connector
38	8283298 Whirlpool Wire Harness
39	W10837240 Whirlpool Dryer Idler Pulley
40	Clip, Lint Duct
41	SWITCH-DOOR DRYER
42	WP98129 Whirlpool Screw
44	WP3387242 Whirlpool Seal
45	WP488627 Whirlpool Refrigerator Screw
46	WP3388229 Whirlpool Dryer Spring Clip
47	W10244331 Whirlpool Rear Door
48	WP694091 Whirlpool Screw
49	W10322548 Whirlpool Door Assembly
50	Screw, 8-18 x 3/4 (Door Handle)
51	Front Panel
54	Fastener, Tubular
55	WP488729 Whirlpool Refrigerator Door Screw
56	8529989 Whirlpool Wire Harness
56A	Block, Disconnect (12-Way) (Timer) (Use Term. 94613)
56B	Receptacle, Latching (2-Way) (Uses Terminal 94614)
57	WP3390735 Whirlpool Door Seal
58	279570 Whirlpool Dryer Door Latch Kit
59	WP8066120 Whirlpool Lever Assembly
60	WP3392906 Whirlpool Door Handle
61	WP3406797 Whirlpool Toe Panel
62	3389351 Whirlpool Top
63	WP3391018 Whirlpool Wire Tie
64	Cotter Pin
65	285875 Whirlpool Security Kit
66	BUSHING
67	Burner Assembly 60 Hz. (Refer To Pages 8 & 9 For Further Breakdown)
69	279923 Whirlpool Gas Valve
70	3387561 Whirlpool Clamp
71	WPW10366705 Whirlpool Screw
72	279311 Whirlpool Dryer Flat Igniter with Bracket
73	WP693995 Whirlpool Screw
