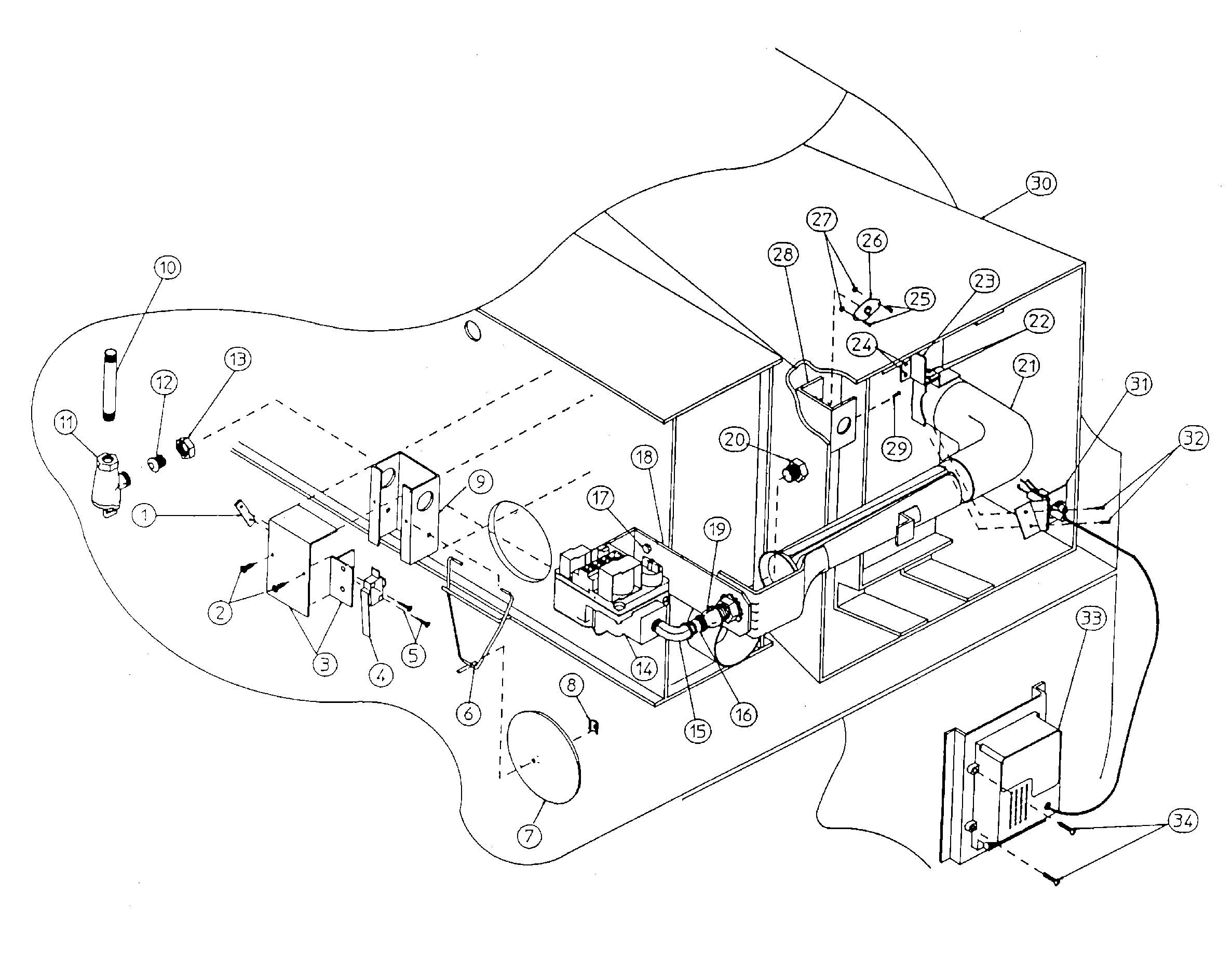

DG75PN1 15 – UPSHOT BURNER ASSY/SAIL SWITCH/HI LIMIT

Products

PositionProduct
000NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
001MAY A154004
002MAY A150415
003MAY A802799
004MAY A122200
005MAY A150303
006MAY A105500
007MAY A319202
008MAY A154002
009MAY A802800
009BOX, SAIL SWITCH ASSY
010MAY A142704
011MAY A141305
012MAY A141303
013MAY A401550
014MAY A128927
015MAY A142506
016MAY A142707
018GAS VALVE & TRAIN MTG. BRKT. (1-PIECE)
019MAY A143000
020“H“ BURNER ORIFICE (NATURAL GAS) ONLY
021UPSHOT BURNER W/SHUTTER & SPREADER
022MAY A150301
023UPSHOT BURNER ASSY. SUPPORT BRACKET
025MAY A150001
026MAY A130401
027MAY A151000
028MAY A318707
030MAY A809619
030MAY A804001
031IGNITER/FLAME-PROBE ASSY.
033MAY A128926
034MAY A874042
034MAY A150300
