DGA500A1D 06 – GLOW BAR BURNER & COMBUSTION CHAMBE

DGA500A1D 06 – GLOW BAR BURNER & COMBUSTION CHAMBE

Written by

in

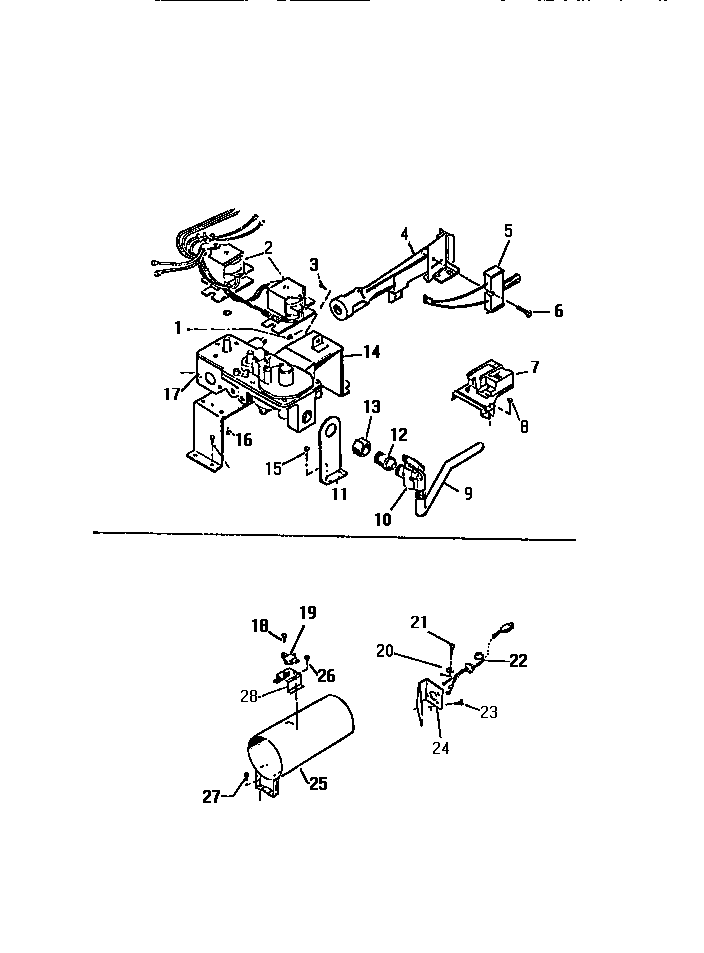

DGA500A1D 06 – GLOW BAR BURNER & COMBUSTION CHAMBE

Products

PositionProduct
*01020GAS CONVERSION KIT, L.P. TO NATURAL
*01021GAS CONVERSION KIT, NATURAL TO L.P.
1WCI F066452-019
1WCI F066452-020
2WCI F133075-000
3131243800 Frigidaire Screw
4WCI F139744-000
55303937186 Frigidaire Dryer Flat Igniter Assembly
6WCI F134225-000
75303281135 Frigidaire Gas Dryer Flame Sensor Radiant
9WCI F078202-100
10WCI F133170-000
11WCI F079904-000
12WCI F062791-300
13WCI F062792-300
14WCI F076992-000
16WCI F132144-000
17WCI F137060-000
17WCI F139745-00
19SAFETY THERMO
20WCI F078101-000
21134154100 Frigidaire Screw 10-32 x 0.375 Co
22SERVICE CORD
24WCI F063536-026
25COMBUSTION CHAMBER
265303015671 Frigidaire Bracket Termination Screw
28WCI F070956-200
