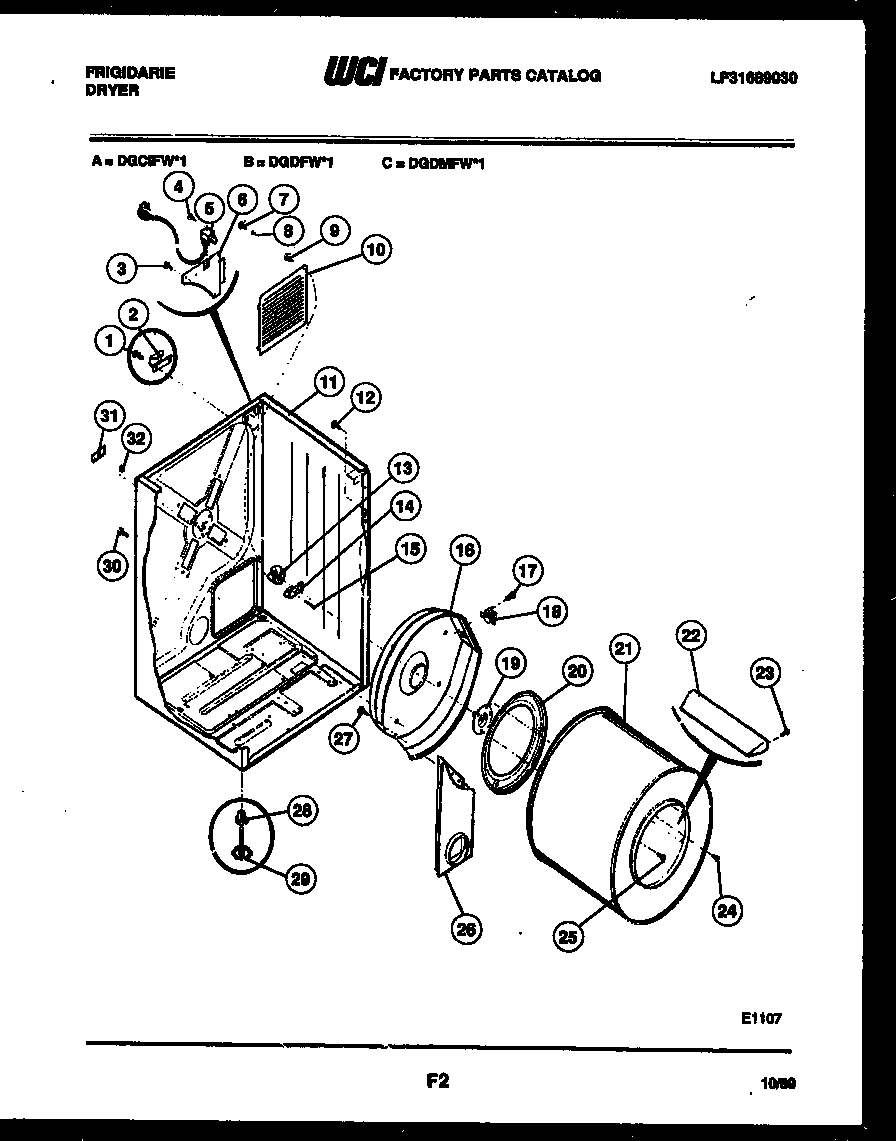

DGDFH1 02 – CABINET AND COMPONENT PARTS

DGDFH1 02 – CABINET AND COMPONENT PARTS

Written by

in

DGDFH1 02 – CABINET AND COMPONENT PARTS

Products

PositionProduct
*25946WCI 5303281153]
1WCI 08011338
2WCI 3205811
3SCREW (1)
5SERVICE CORD (1)
6WCI 3281130
7134154100 Frigidaire Screw 10-32 x 0.375 Co
8WASHER
10COVER PLATE (1)
11CABINET ASSEMBLY (HARVEST WHEAT) (1)
13131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
14131724301 Frigidaire Dryer Drum Bearing Bracket
15131205400 Frigidaire Screw
16HEATER HAG & SEAL ASSEMBLY (1)
17SCREW (2)
185308015399 Frigidaire P-1 THERMSTAT-Safety
195303931781 Frigidaire Shaft
203204254 Frigidaire Baffle Assembly
21WCI 3201199
22137552900 Frigidaire Vane
23131382300 Frigidaire Screw-VANE
24SCREW (3)
25SCREW (INCLUDED IN REAR BEARING KIT) (3)
26DUCT-HEAT
27SCREW (2)
28WCI 3201202
29WCI 3281032
30SCREW (4)
315303281020 Frigidaire Ball Clip
325303281019 Frigidaire Ball Assembly
