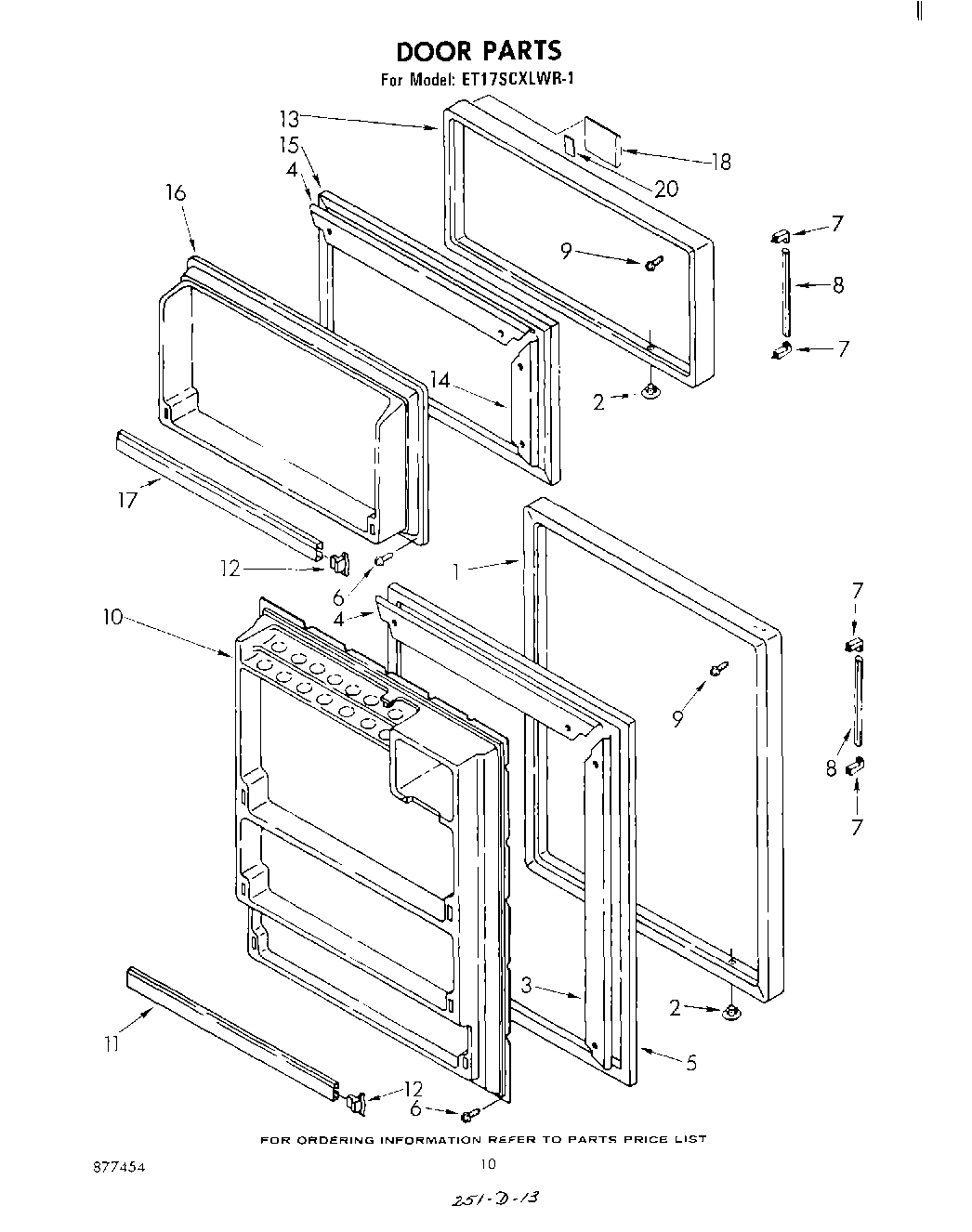

ET17SCXLWR1 06 – DOOR , NOT ILLUSTRATED AND OPTIONAL

Products

Position	Product
1	Refrigerator Door (White)
2	Hole Plug (2)
3	Retainer, Gasket Side
4	Retainer, Gasket Top
5	2188450A Whirlpool Refrigerator Door Gasket
6	SCREW
6	W11624204 Whirlpool Screw
7	End, Door Handle (2)
8	Door, Handle Center
9	Screw (2)
10	Interior Door Panel
11	Door, Trim (2)
12	WP839975 Whirlpool Refrigerator Endcap Trim
13	Freezer Door (White)
14	Retainer Gasket Side
15	2188460A Whirlpool Refrigerator Door Gasket
16	Interior Panel Freezer
17	WPL 843707
18	Nameplate
20	876370 Whirlpool Refrigerator Insulation
20	606755 Whirlpool Refrigerator Bag
20	511873 Whirlpool Refrigerator Paint
20	350942 Whirlpool Spray Paint
20	212643 Whirlpool Refrigerator Permagum Sealer
20	Leveler (Thinner)
20	799344 Whirlpool Refrigerator Paint
20	350930 Whirlpool White Spray Paint
20	WPL 942207
20	WPL 942208
20	WPL 942209
20	72017 Whirlpool Appliance Touch-Up Paint White
20	WPL 799832
20	WPL 941676
20	WPL 876029
20	285006 Whirlpool Spray
20	Enamel, Black (1 Qt. Uncut)
20	CEMENT, ALUMILASTIC (1 1/4 OZ.)
20	TAPE, VINYL (3/4 X 108“)
20	Tape Strip
20	WP542638 Whirlpool Refrigerator Grease
20	WP505587 Whirlpool Refrigerator Sealer
20	Transformer (115-230 Volt)
20	WPL 799833
20	WP503695 Whirlpool Refrigerator Sealer
20	WPL 799351
20	WPL 877454
