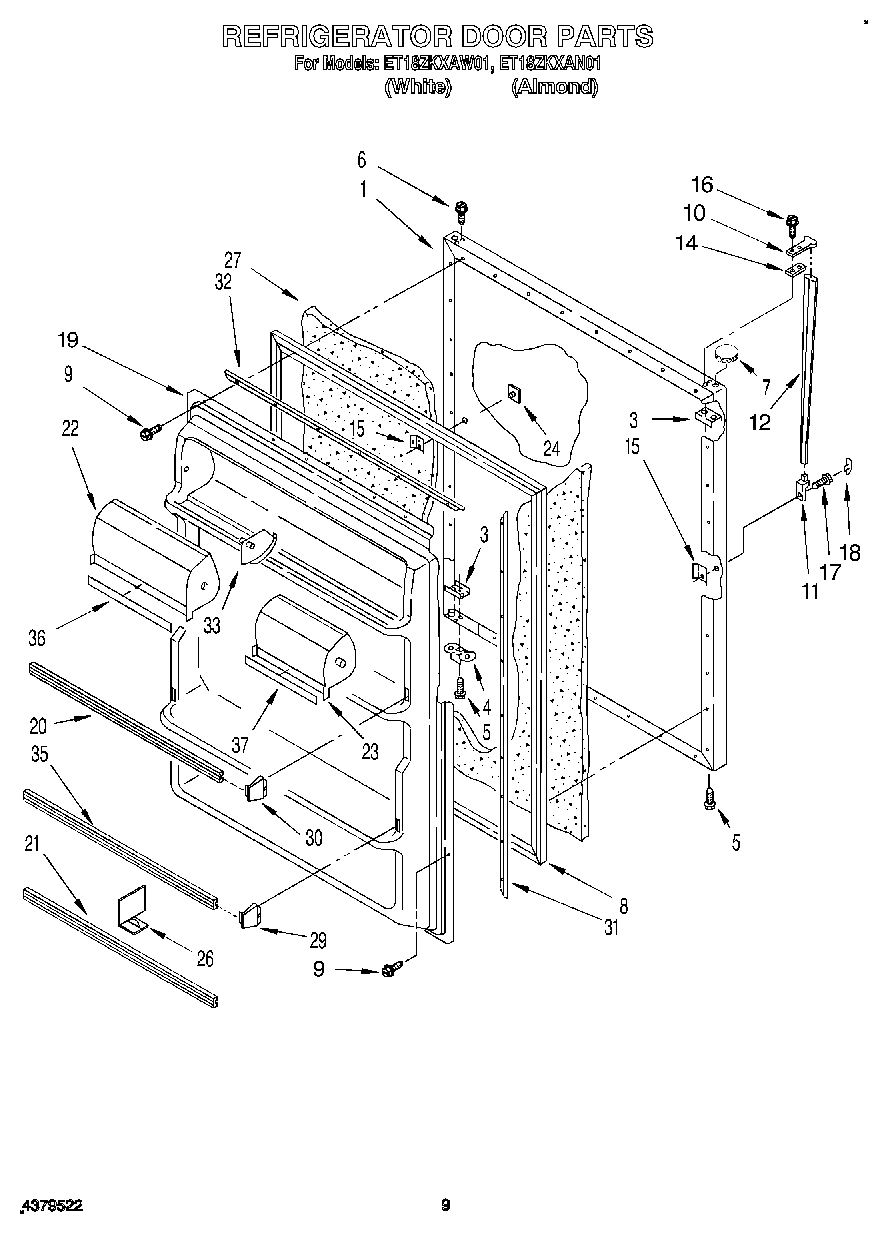

ET18ZKXAN01 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

ET18ZKXAN01 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Written by

in

ET18ZKXAN01 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

Position	Product
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	WPL LIT2160154
	WPL LIT2154075
	Torx Key
	W11729596 Whirlpool Ice Maker Field Install Kit
	WPL LIT2162809
1	Panel, Refrigerator Door (Also Order Item 27) (Almond)
1	Panel, Refrigerator Door (Also Order Item 27) (White)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	Door Gasket, Magnetic
9	WP489069 Whirlpool Compactor Screw
10	WP2191883 Whirlpool Refrigerator Handle Endcap
11	WP2183139 Whirlpool Refrigerator Handle End Cap
12	WP2162555 Whirlpool Refrigerator White Door Handle
12	Handle, Center (Almond)
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	WP1101634 Whirlpool Refrigerator Cover
19	Interior Door Panel
20	Trim, Door Shelf
21	Trim, Door Shelf
22	Compartment Door, Utility
23	Compartment, Butter Door
24	Hole Plug, Handle (Almond)
24	WP2189000 Whirlpool Refrigerator Handle Plug
26	Divider, Shelf
29	4318297 Whirlpool Refrigerator Shelf Bar Endcap Kit, 2 Pack
30	4386917 Whirlpool Endcap Kit
31	Retainer, Gasket Side (2)
32	WPL 1115137
33	WP1118001 Whirlpool Hinge Pin
35	Trim, Door Shelf
36	Trim, Door Compartment
37	212643 Whirlpool Refrigerator Permagum Sealer
37	350956 Whirlpool Spray Assembly
37	Golden Harvest (Uncut)
37	Golden Harvest
37	WP72107 Whirlpool Touchup
37	Door Reversal Instructions
37	72017 Whirlpool Appliance Touch-Up Paint White
37	799344 Whirlpool Refrigerator Paint
37	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
37	Almond (Uncut)
37	Leveler (Thinner)
37	WPL 876029
37	350942 Whirlpool Spray Paint
37	511873 Whirlpool Refrigerator Paint
37	CEMENT, ALUMILASTIC (1 1/4 OZ.)
37	285006 Whirlpool Spray
37	72032 Whirlpool Touch Up Paint Black
37	TAPE, VINYL (3/4 X 108“)
37	WP542638 Whirlpool Refrigerator Grease
37	WP505587 Whirlpool Refrigerator Sealer
37	WP503695 Whirlpool Refrigerator Sealer
37	WPL 799833
37	876370 Whirlpool Refrigerator Insulation
37	833938 Whirlpool Refrigerator Terminal
37	350930 Whirlpool White Spray Paint
37	606755 Whirlpool Refrigerator Bag
37	WPL 1118014
