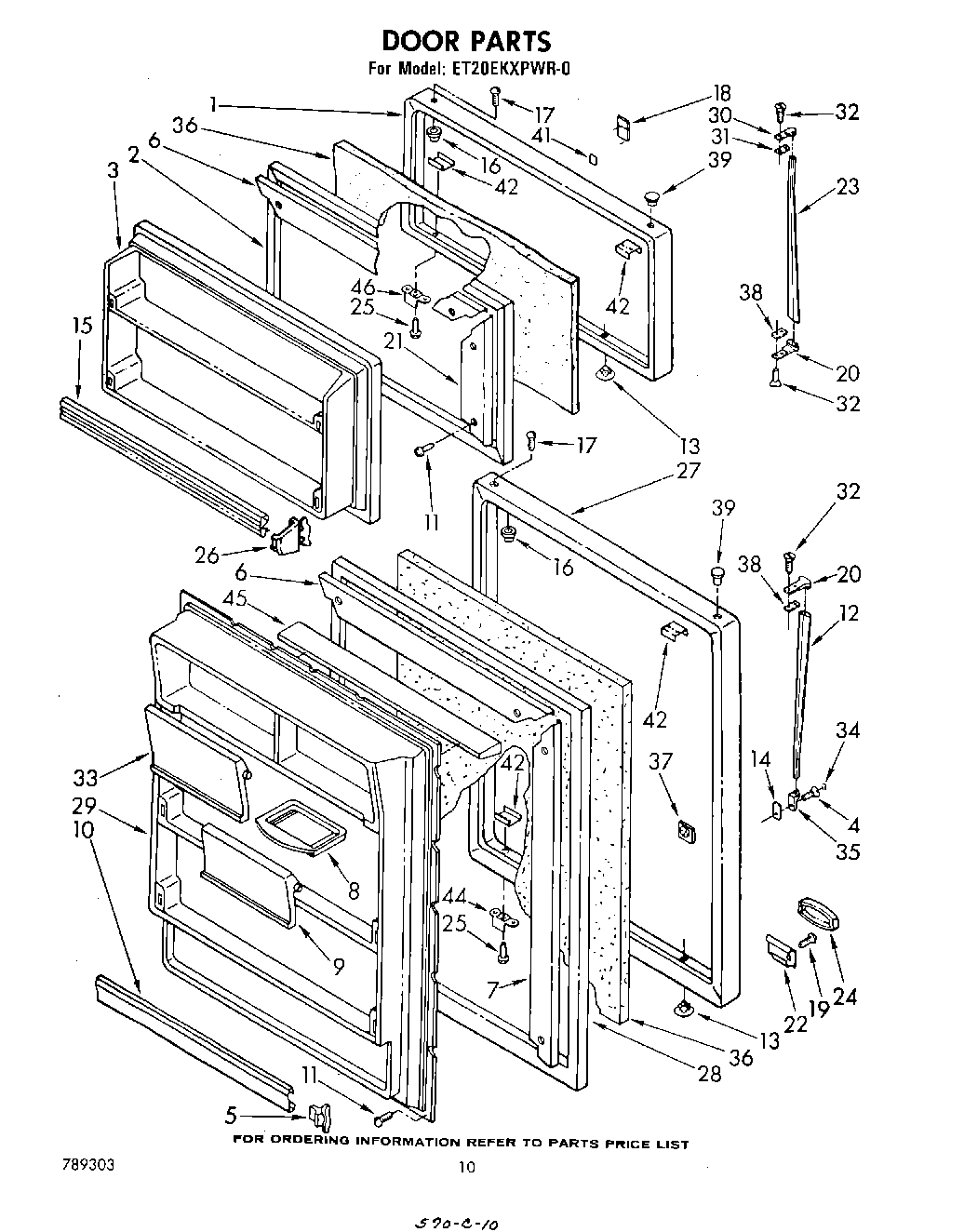

ET20EKXPWR0 06 – DOOR , PARTS NOT ILLUSTRATED

ET20EKXPWR0 06 – DOOR , PARTS NOT ILLUSTRATED

Written by

in

ET20EKXPWR0 06 – DOOR , PARTS NOT ILLUSTRATED

Products

Position	Product
	WPL LIT946646
	WPL LIT1105749
	WPL LIT1105751
	WPL LIT789303
	WPL 677967
	WPL 677813
	WPL 677821
	WPL 677818
1	Freezer Door (White)
1	Freezer Door (Coffee)
1	Freezer Door (Almond)
1	Door, Freezer (Also Order Item 36) (Toast)
1	Freezer Door (Golden Harvest)
1	Door, Freezer (Also Order Item 36) (Platinum)
2	2188460A Whirlpool Refrigerator Door Gasket
3	WPL 482558
4	WP488729 Whirlpool Refrigerator Door Screw
5	WP839904 Whirlpool Refrigerator Endcap Trim
6	Retainer, Gasket Top
7	Retainer, Gasket Side
9	Door, Butter
10	Trim, Shelf (2)
11	SCREW
11	WP489069 Whirlpool Compactor Screw
12	Handle, Center
13	Hole Plug (2)
14	Shim, Handle End
15	Trim, Shelf (2)
16	Cap, Hinge Sleeve (2)
17	WP8281206 Whirlpool Refrigerator Screw
18	Escutcheon, Nameplate
20	WP2191883 Whirlpool Refrigerator Handle Endcap
21	Retainer Gasket Side
22	Clip, Medallion
23	Handle, Center
24	Medallion (Golden Harvest)
24	Medallion (Almond)
24	Medallion (White)
24	Medallion (Platinum)
24	Medallion (Toast)
24	Medallion (Coffee)
25	WP488921 Whirlpool Refrigerator Screw
25	Screw (Repair)
26	WP849996 Whirlpool Refrigerator Endcap Trim
27	Refrigerator Door (Coffee)
27	Refrigerator Door (White)
27	Refrigerator Door (Almond)
27	Door, Refrigerator (Also Order Item 36) (Toast)
27	Refrigerator Door (Golden Harvest)
27	Door, Refrigerator (Also Order Item 36) (Platinum)
28	2188450A Whirlpool Refrigerator Door Gasket
29	Interior Panel
30	WP2191882 Whirlpool Refrigerator Handle End Cap
31	Shim, Handle
32	Screw (Repair)
32	WP488920 Whirlpool Refrigerator Screw
33	WPL 1105742
34	WP1101634 Whirlpool Refrigerator Cover
35	WP2183139 Whirlpool Refrigerator Handle End Cap
37	WP939101 Whirlpool Refrigerator Plate
38	Spa
39	Hole Plug (Platinum)
39	Hole Plug (Almond)
39	Hole Plug (Coffee)
39	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
39	Hole Plug (Toast)
41	Tape Strip
42	W10833053 Whirlpool Refrigerator Plate
44	Bracket, Door Stop
45	Support, Door Dike
46	Paint, Spray (13 Oz.) (Platinum)
46	Toast
46	Enamal, Toast (1 Qt. Uncut)
46	Golden Harvest
46	Golden Harvest (Uncut)
46	72113 Whirlpool Touch-Up Paint
46	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
46	Almond (Uncut)
46	Leveler (Thinner)
46	WP72107 Whirlpool Touchup
46	799344 Whirlpool Refrigerator Paint
46	350930 Whirlpool White Spray Paint
46	350956 Whirlpool Spray Assembly
46	72017 Whirlpool Appliance Touch-Up Paint White
46	Platinum (Uncut)
46	WP503695 Whirlpool Refrigerator Sealer
46	WP505587 Whirlpool Refrigerator Sealer
46	TAPE, VINYL (3/4 X 108“)
46	285006 Whirlpool Spray
46	CEMENT, ALUMILASTIC (1 1/4 OZ.)
46	WPL 799832
46	WPL 799833
46	WPL 876029
46	876370 Whirlpool Refrigerator Insulation
46	Bracket, Door Stop
46	WPL 72112
46	Silicone (Spray)
46	212643 Whirlpool Refrigerator Permagum Sealer
46	350942 Whirlpool Spray Paint
46	511873 Whirlpool Refrigerator Paint
46	WP542638 Whirlpool Refrigerator Grease
46	606755 Whirlpool Refrigerator Bag
46	833938 Whirlpool Refrigerator Terminal
46	72032 Whirlpool Touch Up Paint Black
