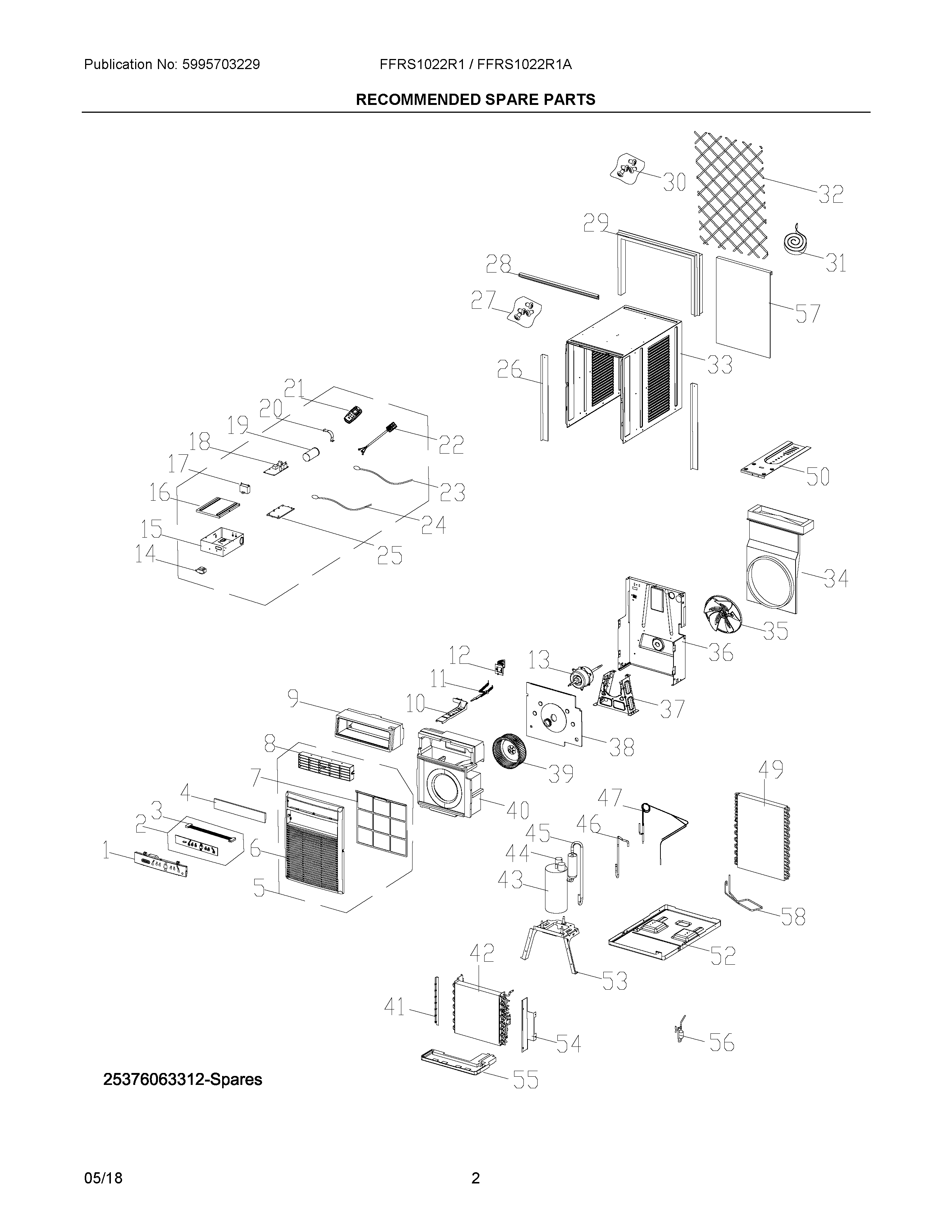

FFRS1022R1A1 02 – RECOMMENDED SPARE PARTS

FFRS1022R1A1 02 – RECOMMENDED SPARE PARTS

Written by

in

FFRS1022R1A1 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1Control Panel,with overlay
25304500946 Frigidaire PC Board Air Conditioner
35304480400 Frigidaire Air Conditioner Wire
4WCI 5304476461
55304525590 Frigidaire Air Conditioner Front Assembly
65304500947 Frigidaire Panel
75304525657 Frigidaire Filter
85304476465 Frigidaire LOUVER ASSEMBLY
9WCI 5304487580
105304476466 Frigidaire SUPPORT
11WCI 5304476467
125304471356 Frigidaire DOOR
135304499957 Frigidaire Air Conditioner Motor
145304470989 Frigidaire Air Conditioner Transformer
15WCI 5304512421
16WCI 5304500949
17CAPACITOR, FAN MOTOR
185304512416 Frigidaire Air Conditioner Pc Board
19CAPACITOR, COMPRESSOR
20WCI 5304512417
21WCI 5304476904
225304502112 Frigidaire Air Conditioner Power Cord
235304512419 Frigidaire Thermistor
245304512420 Frigidaire Thermistor
26WCI 5304476474
275304471644 Frigidaire Screw KIT
28WCI 5304476475
295304495780 Frigidaire Frame
305304524246 Frigidaire Installation Kit
31WCI 5304471646
32WCI 5304476477
33WCI 5304476503
34WCI 5304500952
355304471366 Frigidaire Air Conditioner Fan Blade
36WCI 5304487591
37WCI 5304500953
38WCI 5304487590
395304499958 Frigidaire Blower Wheel
40WCI 5304487592
41WCI 5304500966
42WCI 5304487593
43WCI 5304499955
44WCI 5304500967
45WCI 5304500968
46WCI 5304496188
475304500969 Frigidaire Tube
495304500959 Frigidaire Condenser
50WCI 5304476494
52WCI 5304500960
535304500961 Frigidaire Base
54WCI 5304500970
55WCI 5304471379
565304476367 Frigidaire Air Conditioner Filter Drier
575304491890 Frigidaire Air Conditioner Panel
58WCI 5304500962
