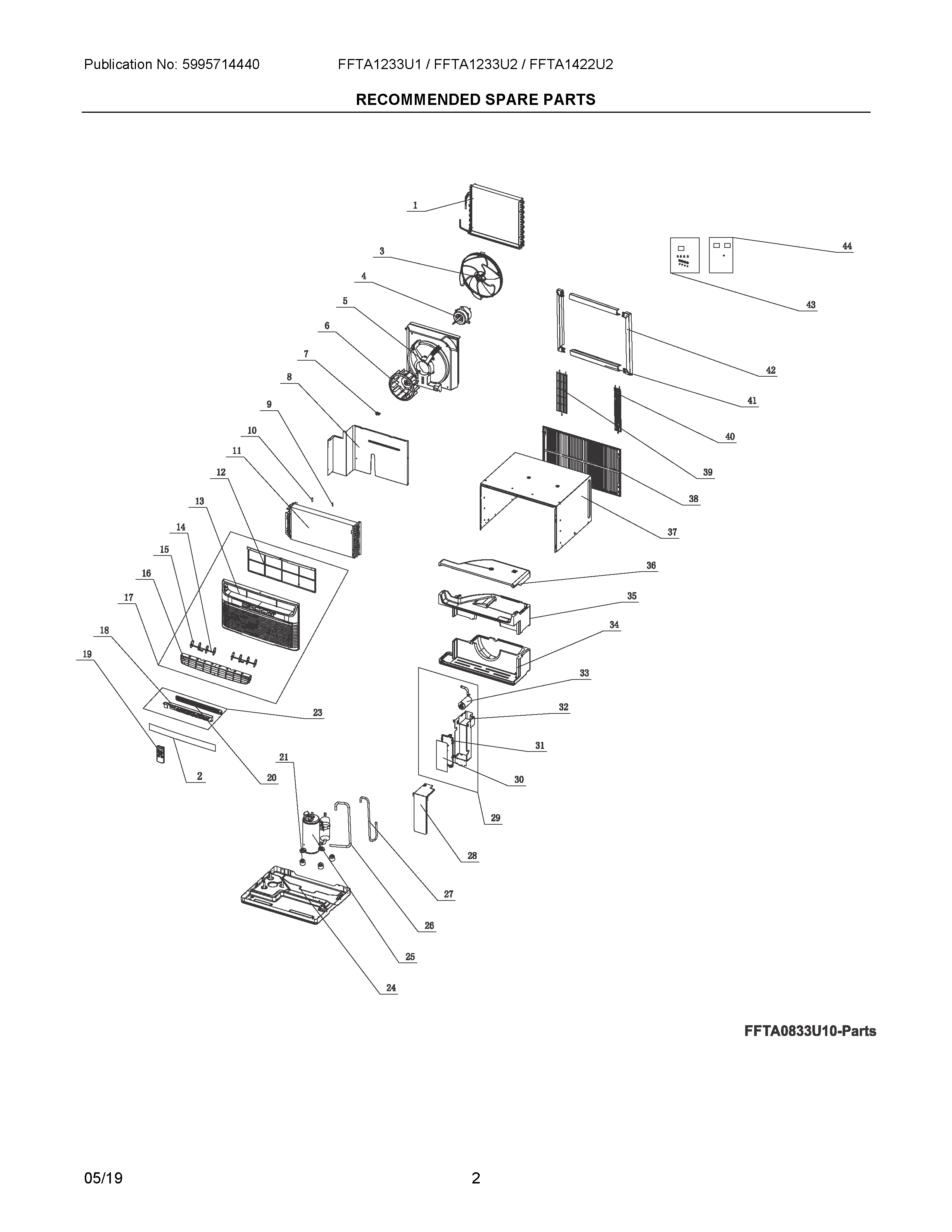

FFTA1233U20 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
15304516567 Frigidaire Air Conditioner Condenser
2WCI 5304521645
35304516523 Frigidaire Air Conditioner Fan Blade
45304516568 Frigidaire Motor
5SHROUD, CONDENSER FAN
6WHEEL, BLOWER
7CLAMP, PLASTIC, (2)
8BRACKET, CLAPBOARD
9CLIP, TEMP SENSOR
10SLEEVE, TEMP SENSOR
115304516574 Frigidaire Air Conditioner Evaporator Assembly
125304525641 Frigidaire Air Conditioner Filter
135304516532 Frigidaire Frame
14LEVER, AIR LOUVER
155304515942 Frigidaire Louver
165304525637 Frigidaire Front Assembly
185304516584 Frigidaire Air Conditioner Control Panel
195304515943 Frigidaire Air Conditioner Remote Control
21GASKET, COMPRESSOR
24BASE ASSEMBLY, CHASSIS
255304516569 Frigidaire Air Conditioner Compressor
265304516578 Frigidaire Tube
275304516570 Frigidaire Tube Assembly
28COVER, ELECTRICAL BOX
29BOX ASSEMBLY, ELECTRICAL, W/BOARD-CAPACTR
305304516587 Frigidaire Board Assembly
31BRACKET, BOARD MTG
32BOX, ELECTRICAL
335304516565 Frigidaire Capacitor Air Conditioner
34AIR DUCT, VOLUTE, BOTTOM
35AIR DUCT, VOLUTE, MIDDLE
36AIR DUCT, VOLUTE, TOP
37WRAPPER ASSEMBLY, CABINET
38GRILLE, AIR DIRECTIONAL, REAR
39GRILLE, PROTECTIVE, WIDE, REAR
40WCI 5304467092
41WCI 5304459821
42WCI 5304459820
43WCI 5304459817
44WCI 5304459818
