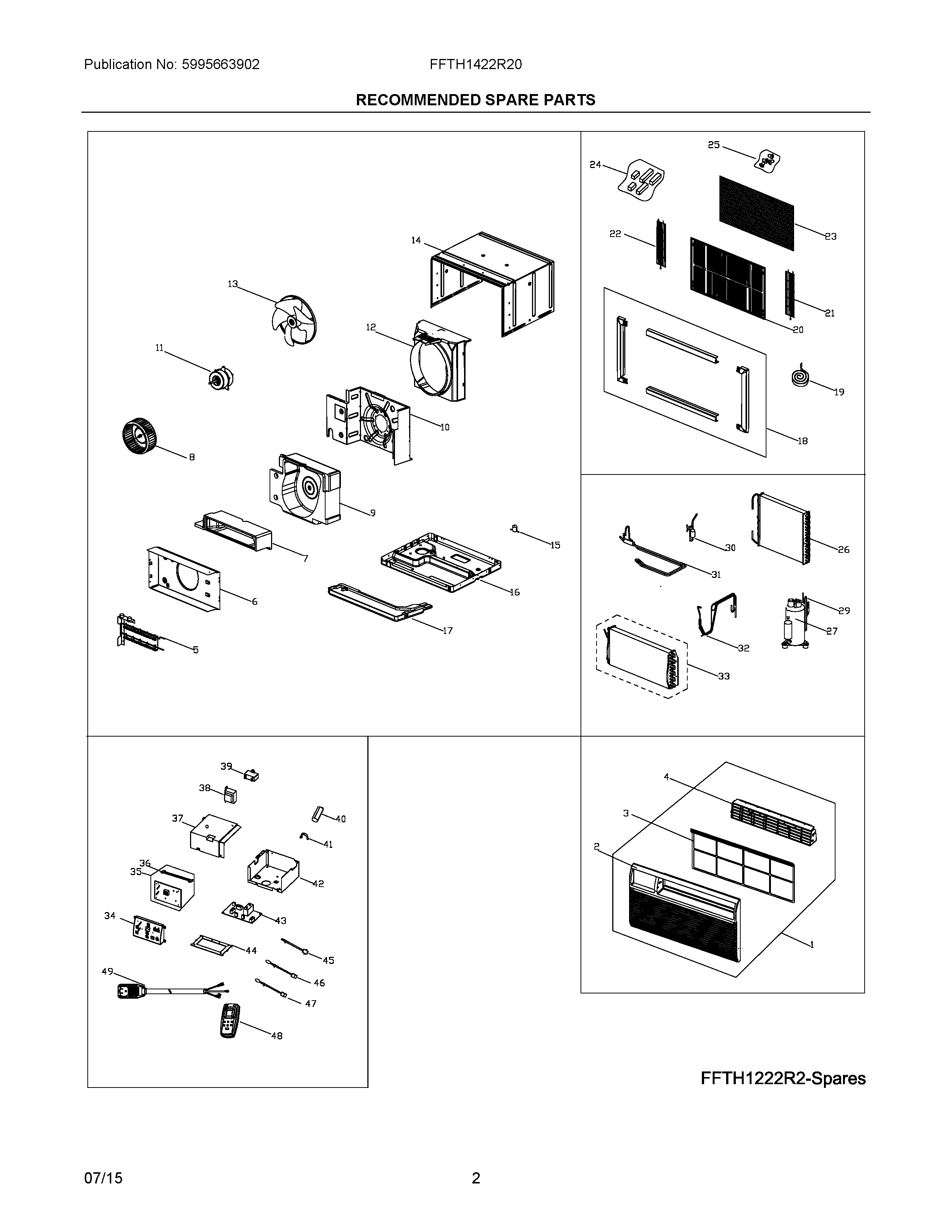

FFTH1422R20 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1WCI 5304492061
2WCI 5304476435
35304528926 Frigidaire Air Conditioner Filter
45304492062 Frigidaire Louver Assembly
55304476390 Frigidaire Air Conditioner Heater Assembly
6WCI 5304501083
7WCI 5304501084
85304476623 Frigidaire Blower Wheel
9SCROLL, BLOWER HOUSING, REAR
10WCI 5304501086
115304499952 Frigidaire Air Conditioner Motor
12WCI 5304501088
135304470971 Frigidaire Air Conditioner Fan Blade
14WCI 5304501087
155304476624 Frigidaire Valve
16BASE, UNIT CHASSIS
17WCI 5304501090
185304535826 Frigidaire Trim
19WCI 5304470974
20WCI 5304482549
21WCI 5304501091
22WCI 5304501092
235304470975 Frigidaire Grill
24WCI 5304470979
25WCI 5304470978
265304501103 Frigidaire Air Conditioner Condenser
275304501976 Frigidaire Air Conditioner Compressor
29WCI 5304501977
305304476367 Frigidaire Air Conditioner Filter Drier
315304501104 Frigidaire Tube
325304501978 Frigidaire Tube
33WCI 5304501979
34CONTROL PANEL, WITH OVERLAY
355304501982 Frigidaire Air Conditioner PC Board
365304480400 Frigidaire Air Conditioner Wire
37WCI 5304501097
385304471063 Frigidaire Air Conditioner Transformer
395304471103 Frigidaire Air Conditioner Capacitor
405304493239 Frigidaire Air Conditioner Capacitor
41WCI 5304501069
42WCI 5304501099
43WCI 5304501985
44WCI 5304495029
455304512375 Frigidaire Air Conditioner Sensor
465304512374 Frigidaire Air Conditioner Sensor
47SENSOR
485304476631 Frigidaire Air Conditioner Remote Control
495304500875 Frigidaire Air Conditioner Power Cord
