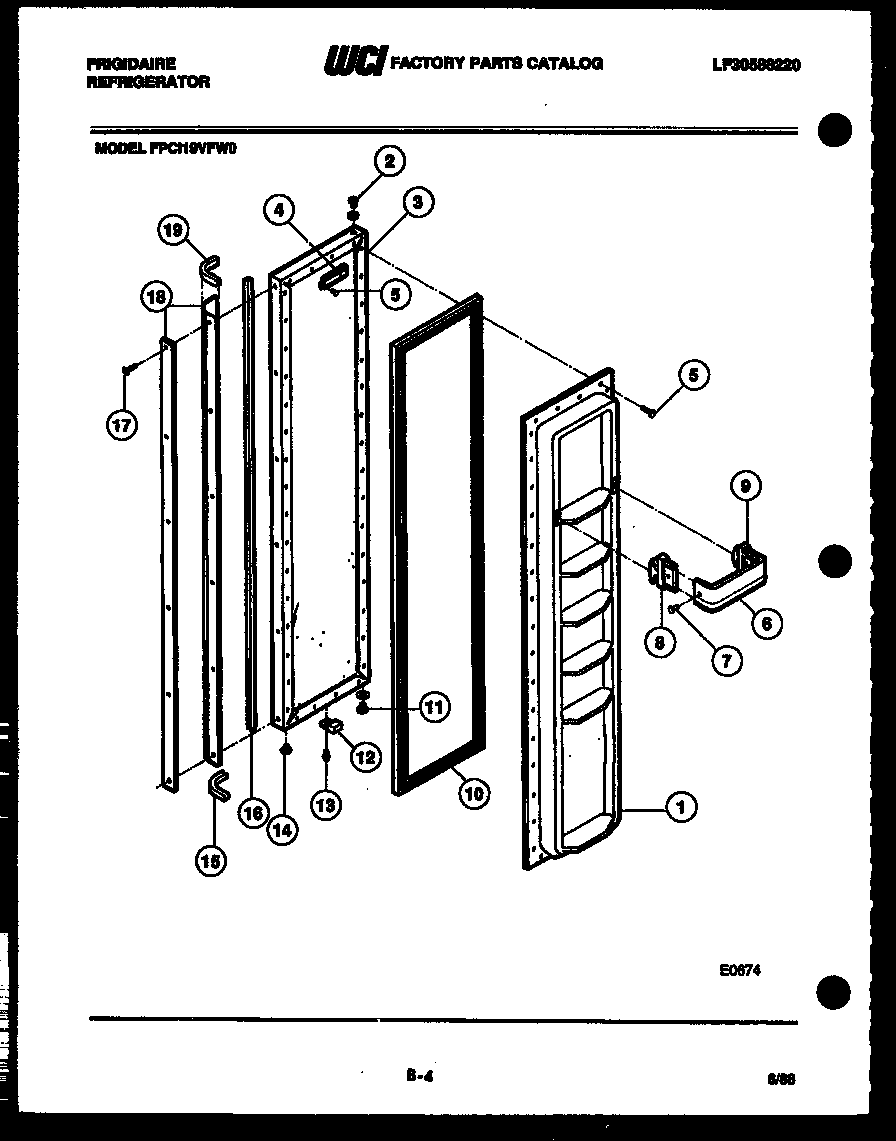

FPCI19VFF0 03 – FREEZER DOOR PARTS

FPCI19VFF0 03 – FREEZER DOOR PARTS

Written by

in

FPCI19VFF0 03 – FREEZER DOOR PARTS

Products

Position	Product
1	WCI 3018764
2	WCI 8012008
3	WCI 8017626
4	WCI 8000743
5	SCREW-PANEL MOUNTING (56)
6	WCI 3018626
7	WCI 8002750
8	WCI 3018627
9	WCI 3018628
10	WCI 3018765
11	HINGE BEARING (8)
12	WCI 8000790
13	WCI 8000839
14	WCI 8002751
15	END CAP-TOP (2)
16	WCI 8010229
17	SCREW-HANDLE MOUNTING (4)
18	WCI 8017423
19	END CAP-BOTTOM (2)
