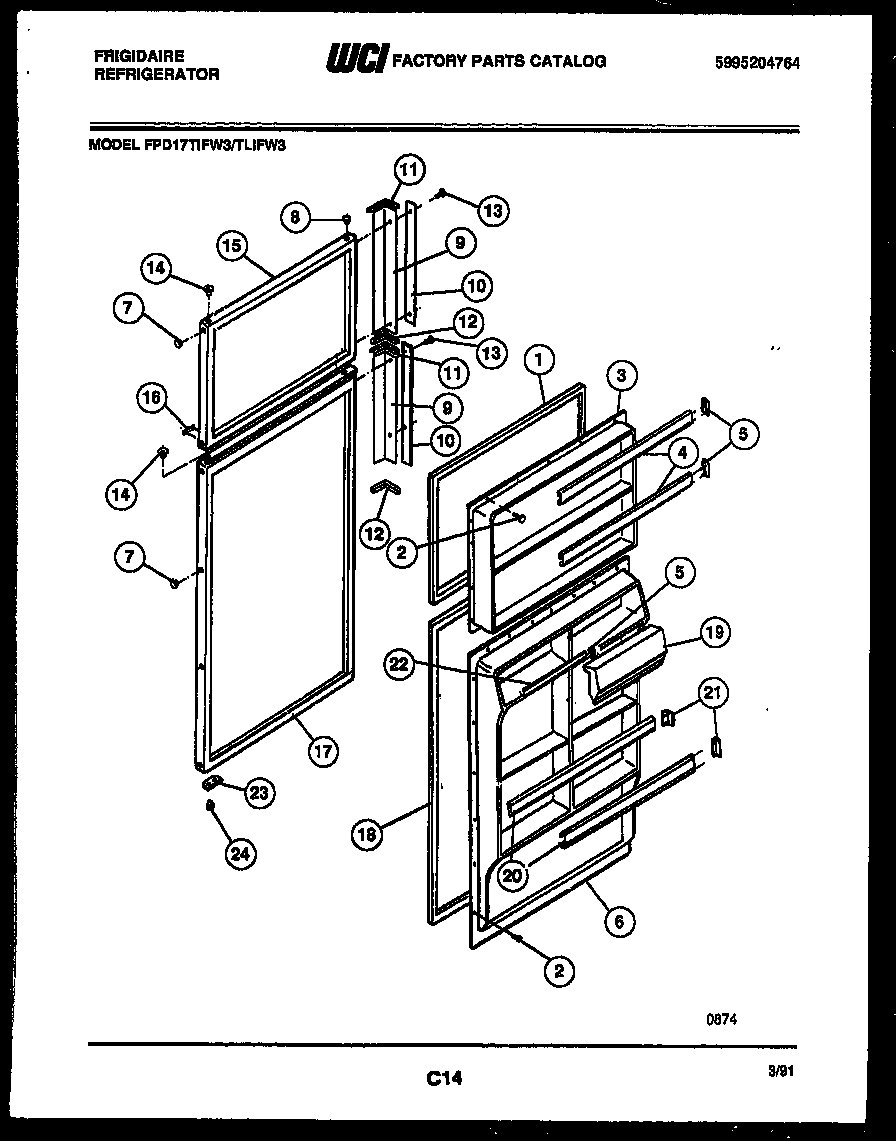

FPD17TLIFW3 02 – DOOR PARTS

Products

Position	Product
1	GASKET, FRZR DOOR, BROWN, MAGNETIC
2	5304455651 Frigidaire Refrigerator Screw
3	WCI 3018865
4A	5303323480 Frigidaire Refrigerator Door Bar End Cap Rh
4B	5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
4	WCI 5303018866
6	WCI 3200478
7	240494001 Frigidaire Refrigerator Plug Button
8	PLUG-BUTTON, WHITE, HINGE BRG HOLE
9	HANDLE-COMPLETE
10	WCI 5308010229
11	WCI 5308010239
12	END CAP-BOTTOM (2)
13	SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
14	BEARING-HINGE
15	FREEZER DOOR-WHITE
16	NAMEPLATE
17	REFR DOOR-WHITE
18	218730603 Frigidaire Door Gasket
19	WCI 3200582
20	215516220 Frigidaire Refrigerator Door Rack
21	5303325990 Frigidaire Refrigerator Door Bar End Cap
21A	5303325991 Frigidaire Refrigerator Door Bar Endcap
22	RACK-REFR DOOR
23A	DOOR STOP, REFR SECTION
23	WCI 5308000255
24	WCI 5308011745
