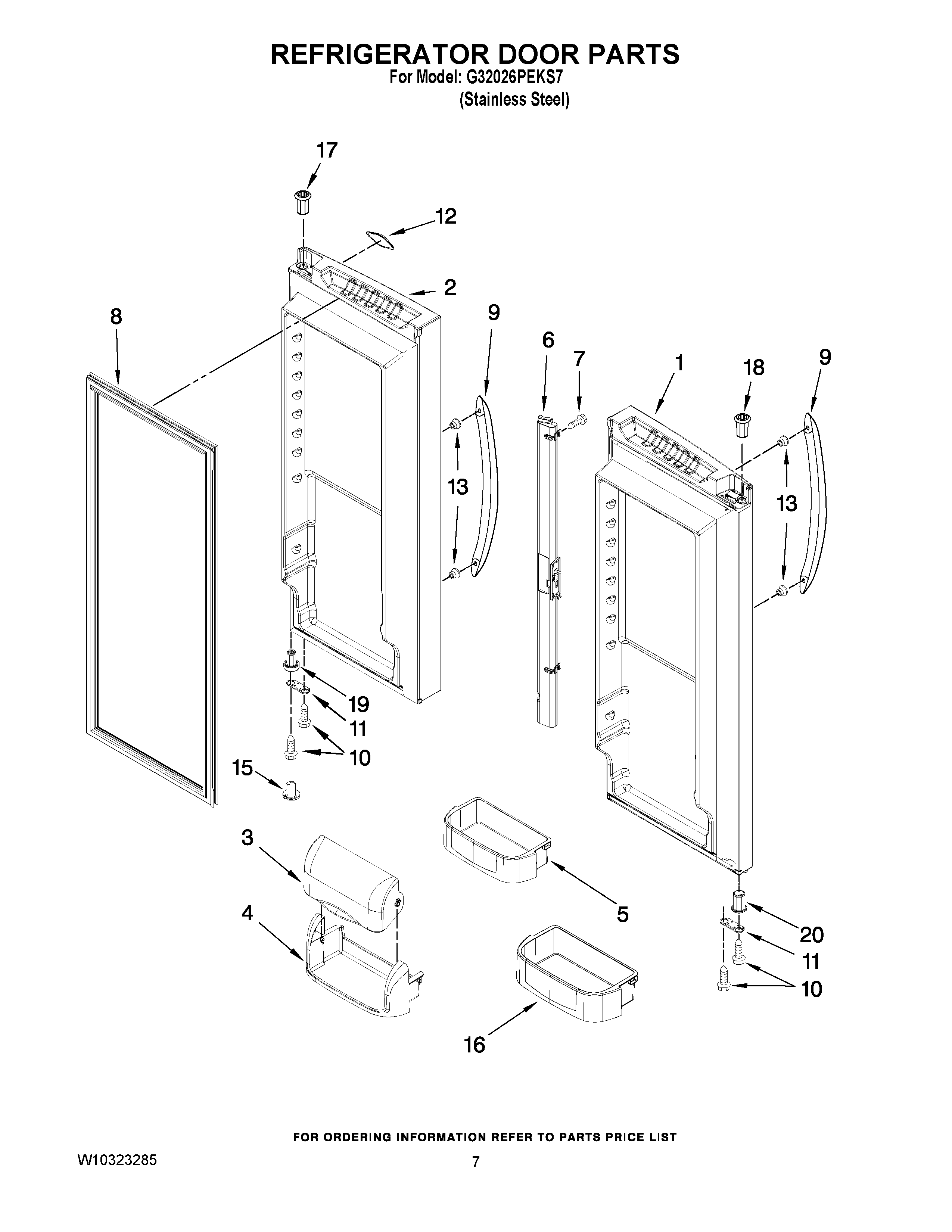

G32026PEKS7 04 – REFRIGERATOR DOOR PARTS

G32026PEKS7 04 – REFRIGERATOR DOOR PARTS

Written by

in

G32026PEKS7 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY 13107724SQ
2MAY 13107725SQ
3MAY 12804701SP
4MAY 12369502SP
5BIN, MEDIUM (3)
6MAY 12722811BKV
7MAY 12990204
8MAY W10163895
9HANDLE (STAINLESS STEEL)
10MAY 12990504
11MAY 12968202B
12BEZEL, NAMEPLATE (BLK)
13MAY 12945201
15MAY 12028505B
16BIN, GALLON (2)
17Bushing (Black)
18BUSHING, DOOR (BLK)
19BUSHING, DOOR (BOTTOM RIGHT) (BLACK)
20BUSHING, DOOR (BOTTOM LEFT) (BLACK)
