G32526PEKS 15 – RIGHT REFRIGERATOR DOOR

G32526PEKS 15 – RIGHT REFRIGERATOR DOOR

Written by

in

G32526PEKS 15 – RIGHT REFRIGERATOR DOOR

Products

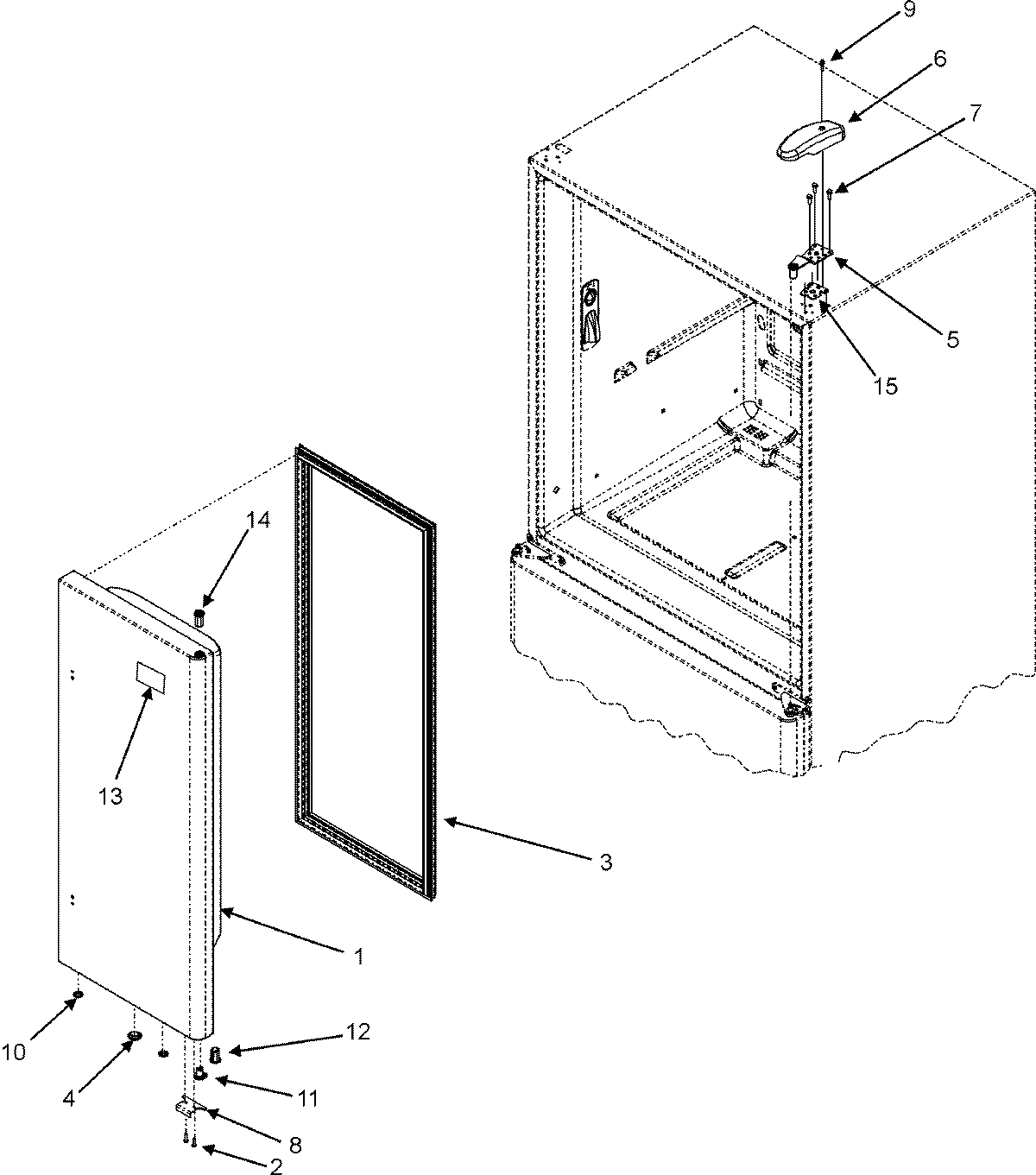

PositionProduct
1MAY W10133337
1MAY 67004737
1MAY 13024007S
2MAY M0211533
2WP98165 Whirlpool Screw
3GASKET-FIP
4MAY A3080001
5WP12566606ED Whirlpool Refrigerator Door Hinge
6MAY 12684202B
7MAY M0238731
8W11708403 Whirlpool Door Stop
9WP8281196 Whirlpool Screw
1067004838 Whirlpool Refrigerator Button Vent Plug
11WP67003639 Whirlpool Refrigerator Closer
12WP67002731 Whirlpool Refrigerator Door Bushing
13BEZEL, NAMEPLATE (BLK)
1467004978 Whirlpool Refrigerator Black Door Bushing
15MAY 12579702
