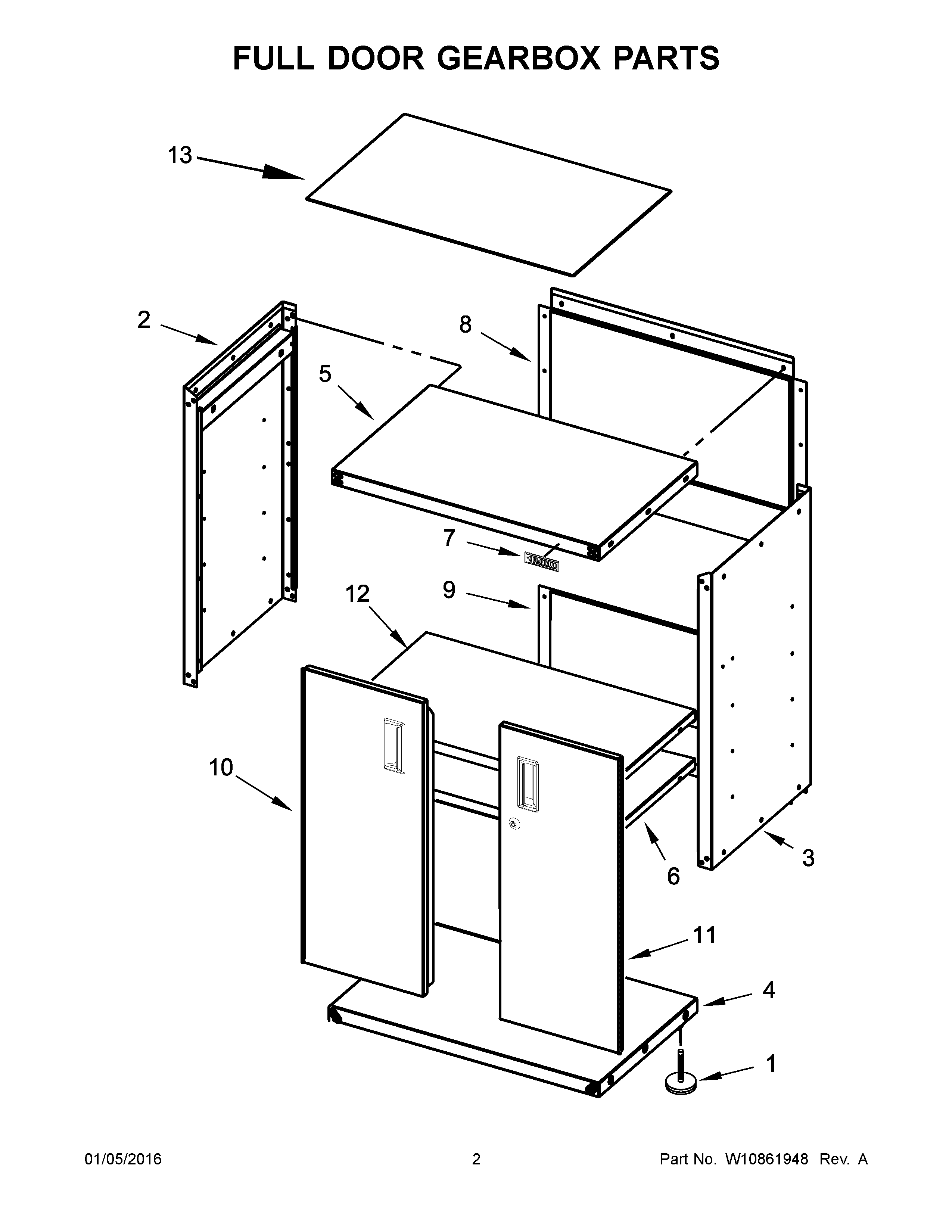

GAGB28FDESG00 02 – FULL DOOR GEARBOX PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIINSTALLATION HARDWARE COMPLETE
1W11256713 Whirlpool Leveler Leg
2PANEL, SIDE (LEFT)
3PANEL, SIDE (RIGHT)
4PANEL, BOTTOM
5W10520288 Whirlpool Panel Assembly
6SHELF
7NAMEPLATE, GLADIATOR
8PANEL, BACK (LOWER)
9W10541602 Whirlpool Panel
10DOOR ASSEMBLY WITHOUT LOCK
11DOOR ASSEMBLY W/LOCK
12SHELF W/MAGNET
13TOP PAD
