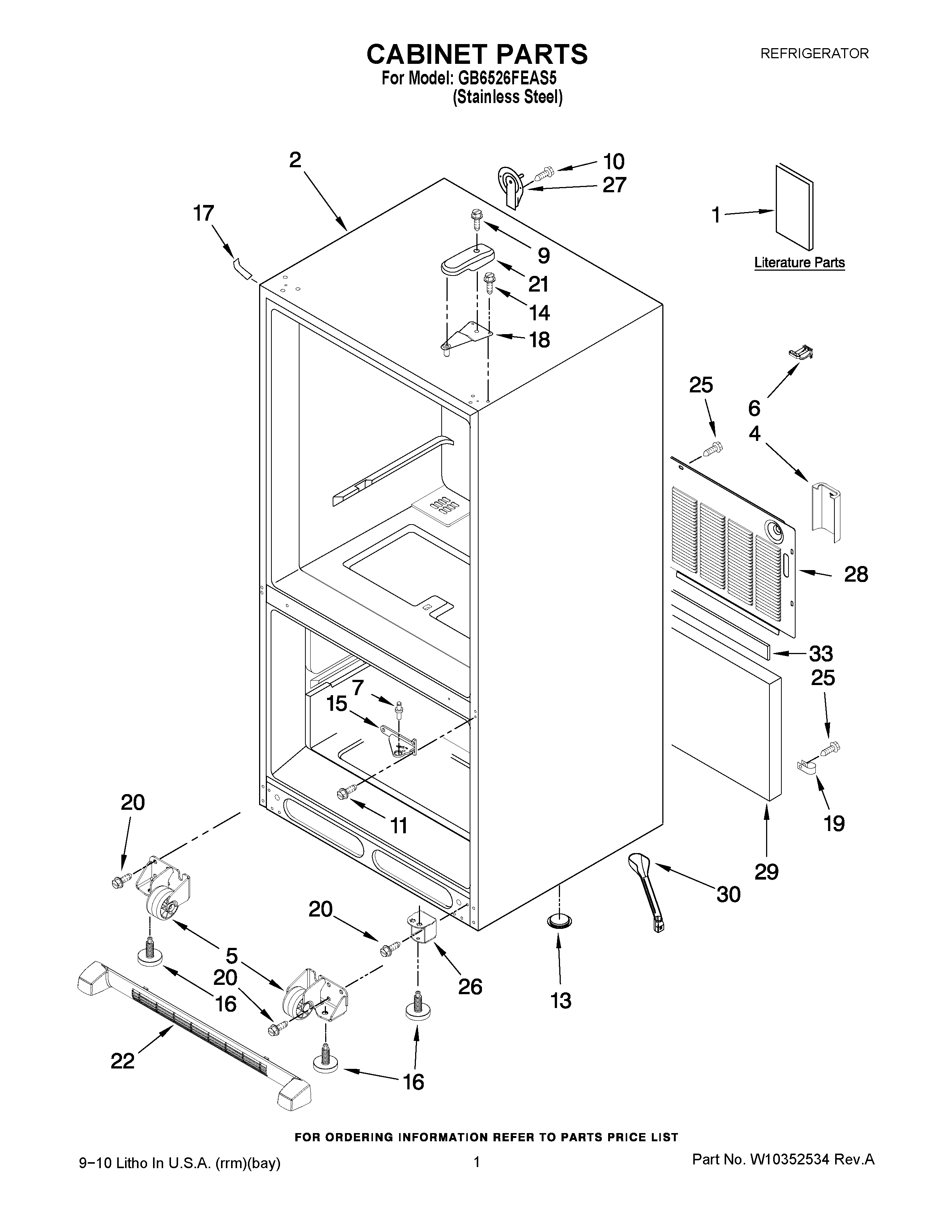

GB6526FEAS5 01 – CABINET PARTS

GB6526FEAS5 01 – CABINET PARTS

Written by

in

GB6526FEAS5 01 – CABINET PARTS

Products

PositionProduct
1MAY 12828189SP
1MAY W10308619
2LINER (NOT A SERVICEABLE PART)
4GUARD-WATER VALVE
5ROLLER ASSY. (FRONT) (RIGHT)
5ROLLER ASSY. (FRONT) (LEFT)
6MAY W10216614
7PIN, CENTER HINGE (REAR)
9MAY 12992602
10MAY 12990504
11SCREW (6)
13A3076901 Whirlpool Refrigerator Plug
14SCREW (6)
15MAY 12607104ED
16Brake, Foot
17COVER, CORNER (BLACK)
18MAY 12566606ED
19CLAMP, TUBE
20Screw (8)
21COVER, HINGE(BLACK)
22MAY W10236196
25SCREW (10)
26MAY W10325141
27MAY 12726003
28MAY W10212535
29Insulation, Sound
30MAY W10210988
33MAY B5759655
