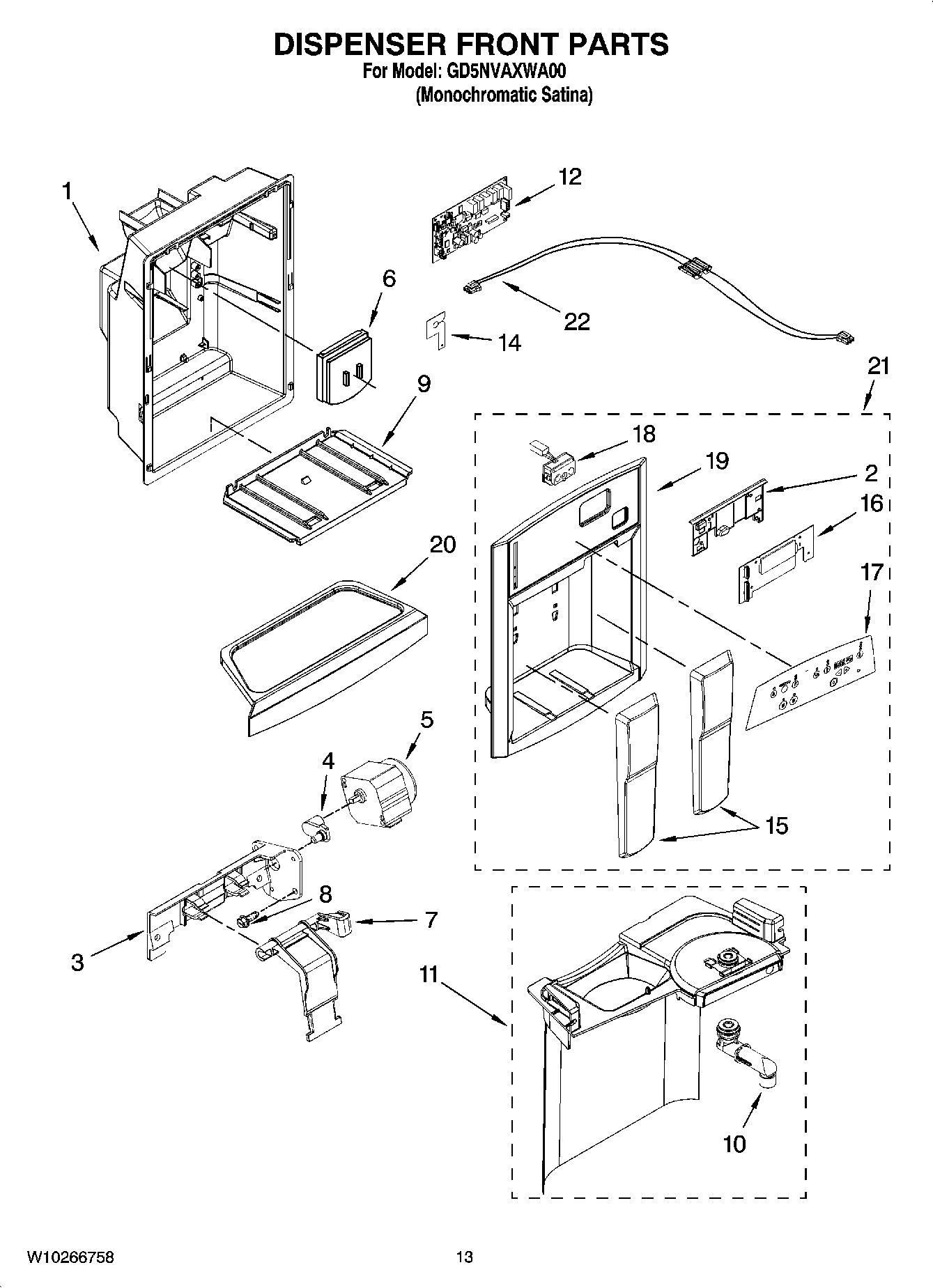

GD5NVAXWA00 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1Housing Dispenser (Not Serviced)
22305219 Whirlpool Refrigerator Cover
3WP2305202 Whirlpool Refrigerator Bracket
4WP2305242 Whirlpool Refrigerator Connector
5WPW10184813 Whirlpool Refrigerator Motor
6WP2305258 Whirlpool Dispenser Door Assembly
7WP2305204 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9Grille, Slide (Apollo Gray)
10WP2305235 Whirlpool Refrigerator Spigot
11Separator Assembly (Universal Silver)
12WP2303843-includeCORE Whirlpool WP2303843 Refrigerator Electronic Control Board + Core
142305447 Whirlpool Refrigerator Clip
15Pad, Ice & Water (For Monochromatic Stainless Model)
16Cover Assembly, Electronic Control
17Overlay, Front Cover (Not Available Order 21)
18LED Assembly
19Front Cover, Housing (Not Available, Order 21)
20Tray, Housing (Universal Silver)
21Front Cover Assembly (Includes Items 17, 18, 19, 20, & 21) (Universal Silver)
22W10178851 Whirlpool Refrigerator Jumper Wire
