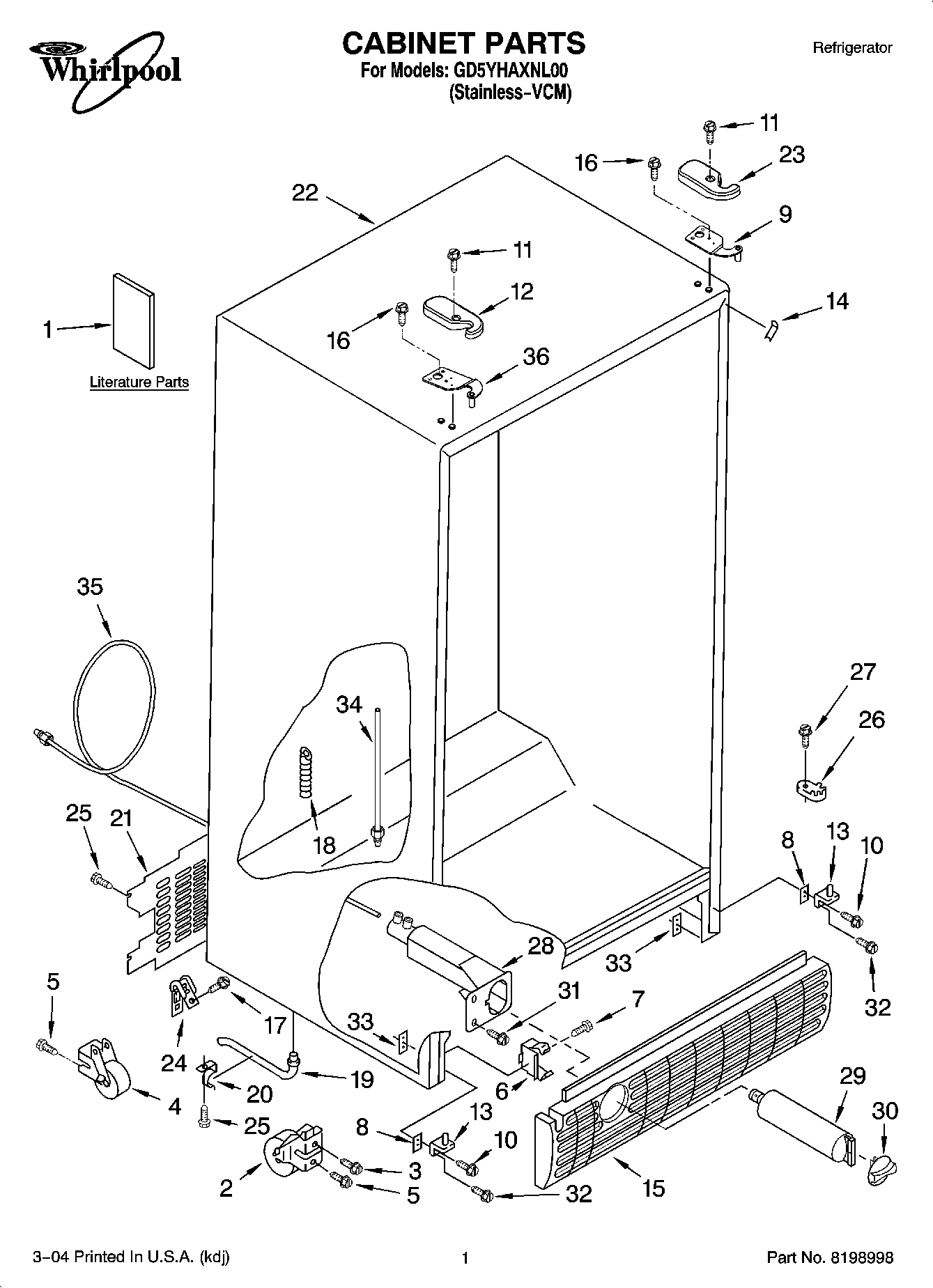

GD5YHAXNL00 01 – CABINET PARTS

Products

PositionProduct
1Modular Icemaker Service Sheet
1Literature Parts (Energy Guide)
1Literature Parts (Service & Wiring Sheet)
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Owner`s Manual
1Literature Parts (Icemaker)
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WP2155013 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
8WP2181911 Whirlpool Refrigerator Shim
9WP2203771 Whirlpool Refrigerator Door Hinge
10WP489497 Whirlpool Screw
11WP8281227 Whirlpool Screw
12WP2203407B Whirlpool Refrigerator Cover
138201707 Whirlpool Door Hinge
14Filler, Wrapper (Black)
15W10803964 Whirlpool Grille Assembly
17WP489464 Whirlpool Refrigerator Screw
18W11566763 Whirlpool Fitting
19WP1108438 Whirlpool Refrigerator Extension
20WP1108439 Whirlpool Refrigerator Clip
21WP2188755 Whirlpool Rear Panel
22Cabinet (Not A Serviceable Part)
23WP2203408B Whirlpool Refrigerator Cover
24549193 Whirlpool Refrigerator Power Clamp
26WPW10329686 Whirlpool Door Cam Black
27WP489483 Whirlpool Screw
28WP2186443 Whirlpool Water Filter Housing
29EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
30WP2186494B Whirlpool Refrigerator Filter Cap
31WP489500 Whirlpool Refrigerator Screw
32W10856122 Whirlpool Refrigerator Screw
33WP2304249 Whirlpool Refrigerator Plate
34WPW10350006 Whirlpool Refrigerator Water Tube
358201597 Whirlpool Inlet Water Fill Tube Kit Filter
36WP2203770 Whirlpool Refrigerator Door Hinge
