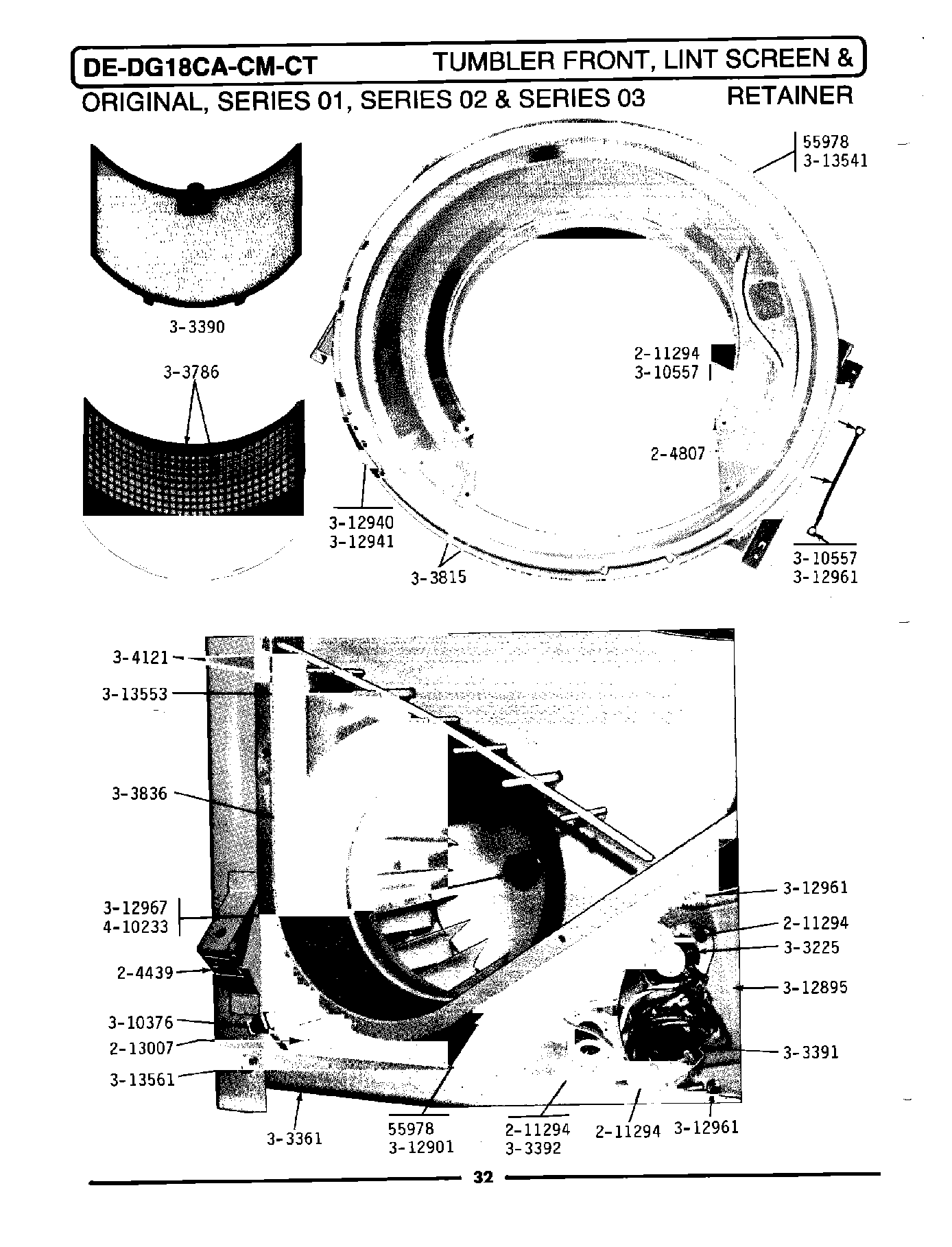

GDG18CM 11 – TUMBLER FRONT, LINT SCREEN & RETAINER

Products

PositionProduct
NIDOWEL PIN FOR HANDLE
NIMAY Y313795
NIWP210720 Whirlpool Rivet
NIMAY Y313796
NIMAY Y312964
NIMAY Y304810
001MAY Y055978
002SCREW & FSTNER ASSY (FT. PNL)
003MAY 204807
005WP90767 Whirlpool Screw
006213007 Whirlpool Screw #12
007PART NOT USED
008MAY Y303361
009MAY Y303390
010WP33303391 Whirlpool Thermostat
011WP694674 Whirlpool Cycling Thermostat
012MAY Y303786
013MAY Y303815
014Y303836 Whirlpool Dryer Blower Wheel
017MAY Y310376
018MAY 310557
019MAY Y312895
020WPY312901 Whirlpool Blow Seal
021MAY 312940
022MAY 312941
023WPW10116751 Whirlpool Screw
025WP312967 Whirlpool Clamp
026MAY Y313541
028MAY Y313561
031WP9703438 Whirlpool Snap Retaining Ring
