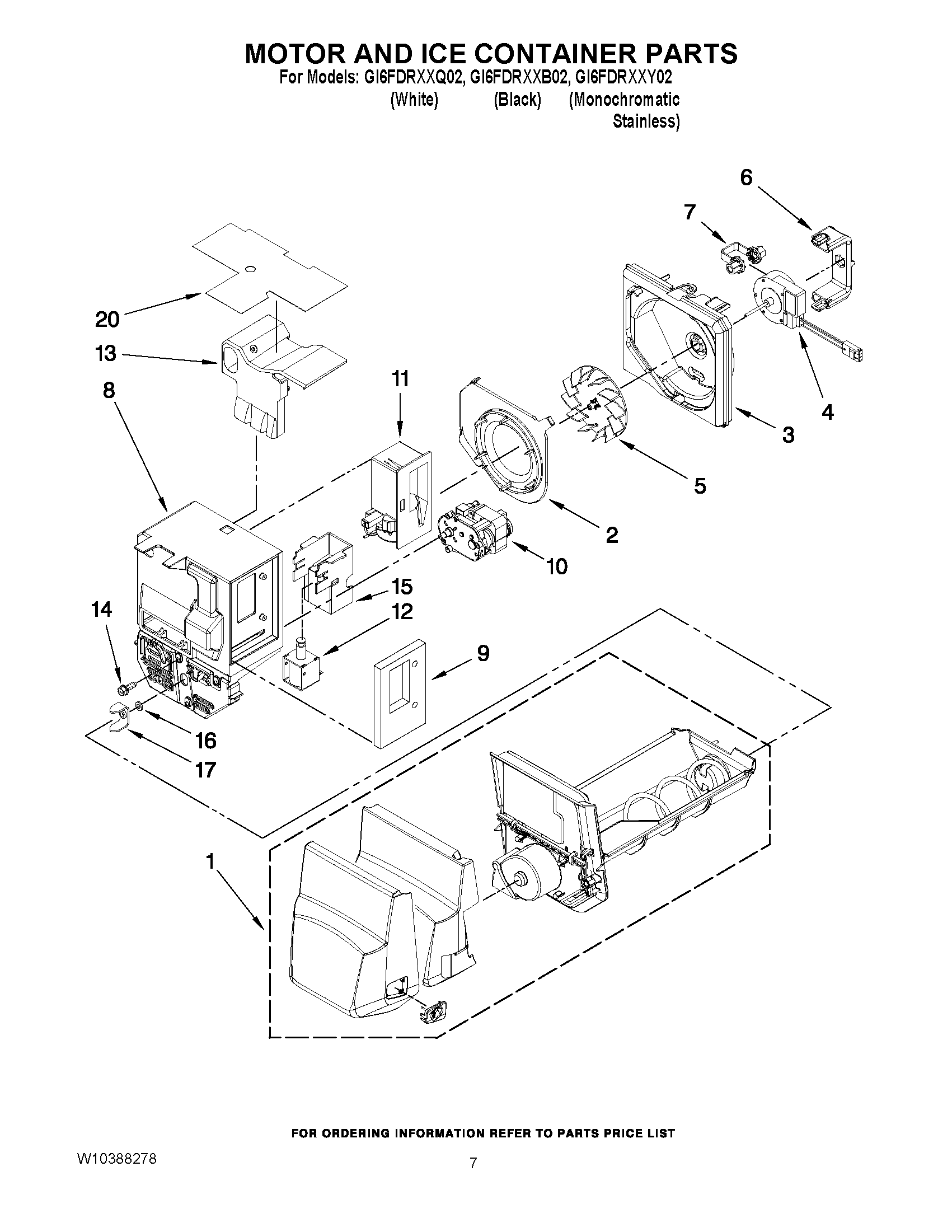

GI6FDRXXQ02 04 – MOTOR AND ICE CONTAINER PARTS

GI6FDRXXQ02 04 – MOTOR AND ICE CONTAINER PARTS

Written by

in

GI6FDRXXQ02 04 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
1ICE-CONTNR
2W10121282 Whirlpool Refrigerator Insert
3W10309863 Whirlpool Refrigerator Scroll Fan
4MOTOR-EVAP
5WPW10123444K Whirlpool Refrigerator Wheel
6W10165970 Whirlpool Refrigerator Clip
7GROMMET, FAN MOTOR
8WPW10309864 Whirlpool Refrigerator Divider
9WP67006341 Whirlpool Refrigerator Gasket
10W11671282 Whirlpool Refrigerator Ice Auger Motor
11WPW10196393 Whirlpool Control Damper
12SOLENOID
13W11676504 Whirlpool Insert Assembly
1467006425 Whirlpool Refrigerator Screw
15W10346971 Whirlpool Refrigerator Bracket
1667006346 Whirlpool Refrigerator Washer
17WP63052-2 Whirlpool Refrigerator Impeller
20Foil, Ice Box
