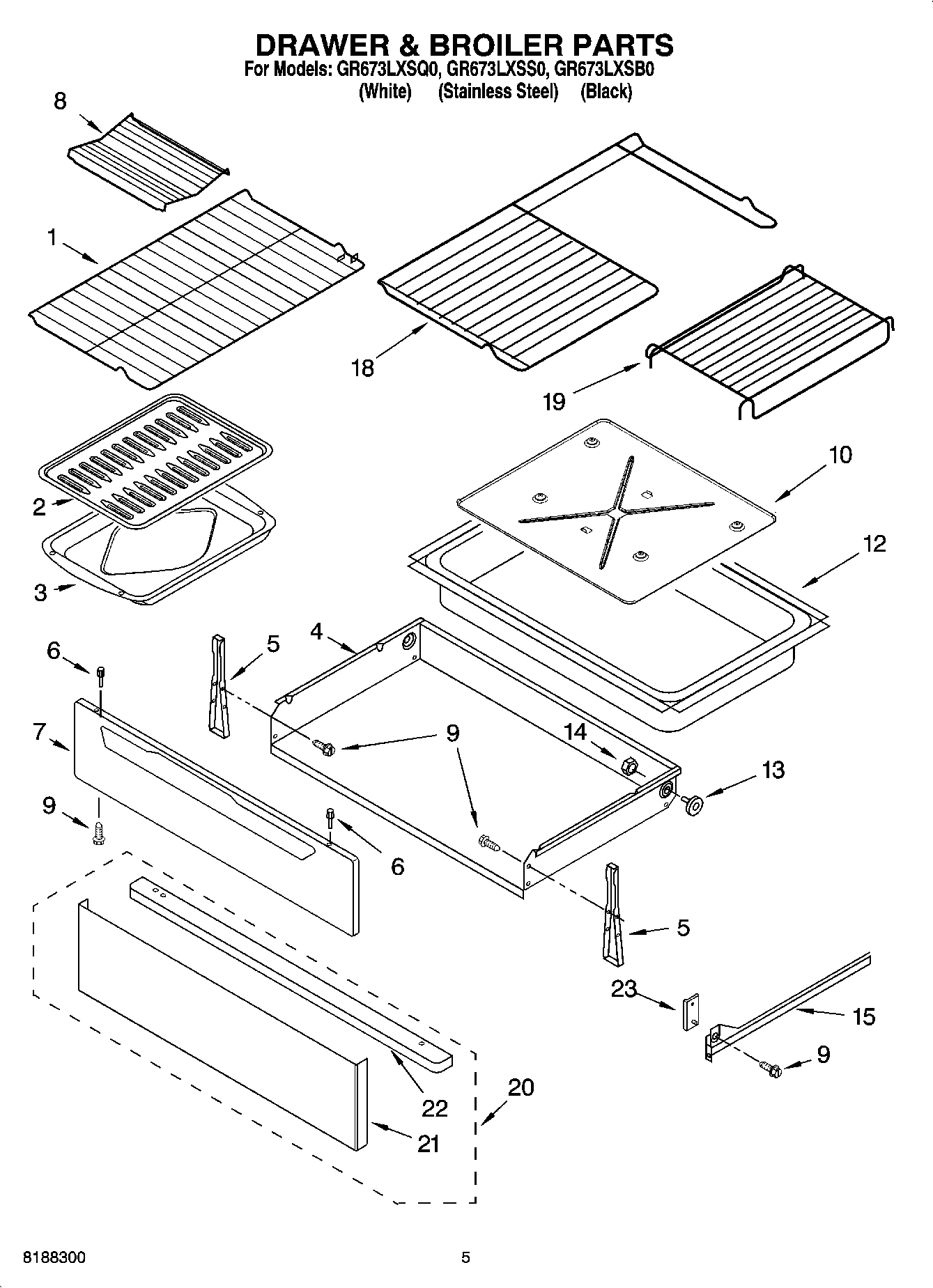

GR673LXSQ0 04 – DRAWER & BROILER PARTS

Products

Position	Product
1	WPW10256908 Whirlpool Oven Range Rack
2	WP3195996 Whirlpool Pan Grid
3	WP3196076 Whirlpool Broil Pan
4	Drawer, Storage
5	W10838990 Whirlpool Mounting Bracket
6	WP3196814 Whirlpool Rivet
7	W11230488 Whirlpool Drawer Panel
7	W11219377 Whirlpool Drawer Panel
8	Rack, Roasting
9	WP3400832 Whirlpool Screw
10	Heat Shield, Drawer
12	Liner, Drawer
13	814229 Whirlpool Primary Roller
14	WP487939 Whirlpool Refrigerator Nut
15	Rail, Drawer (Right Hand)
15	Rail, Drawer (Left Hand)
18	WP8274021 Whirlpool Oven Rack
19	WP8274022 Whirlpool Oven Rack
20	Stainless Model Only
21	Panel, Stainless
22	Handle, Drawer
23	Spacer, Glide
