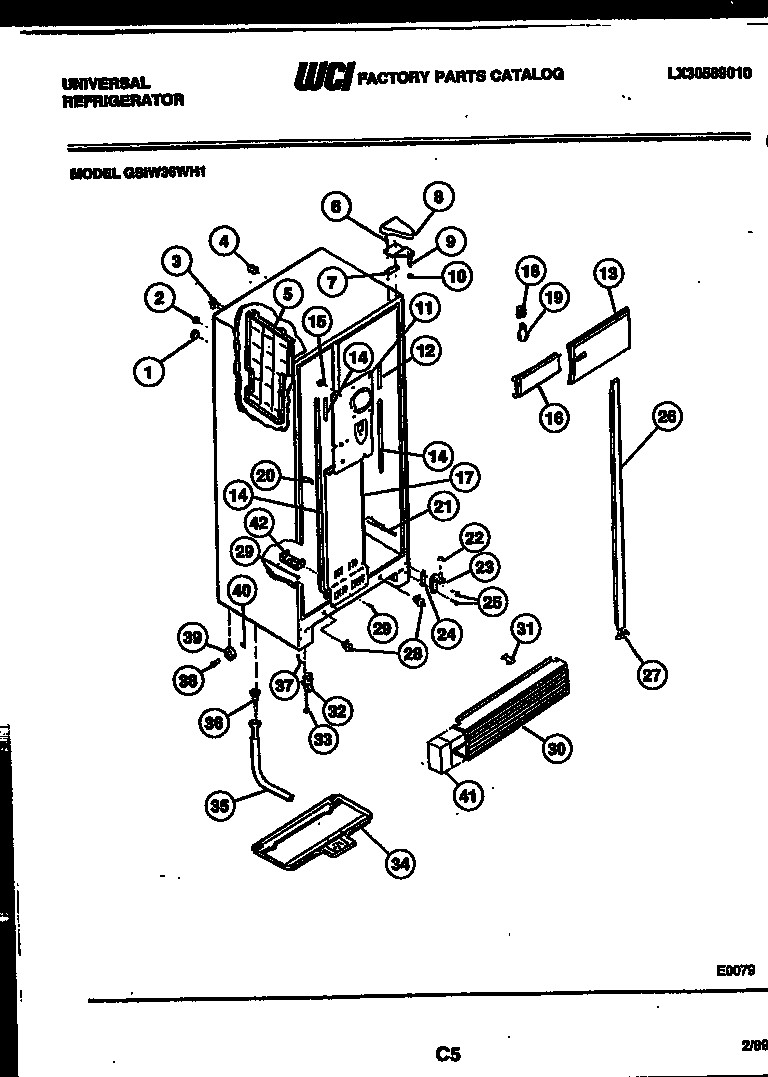

GSIW36DH1 04 – CABINET PARTS

Products

Position	Product
*44340	WASHER
*44340	BUTTON, PLUG, LINER (2)
*44340	WCI G184851
1	WCI G174733
2	WCI G174734
3	215456100 Frigidaire Refrigerator Water Inlet Tube
4	TUBE, INSULATION (2)
5	WCI G174559
6	241710601 Frigidaire Refrigerator Screw
7	WCI G183861
8	COVER HINGE, WHITE
8	COVER, TOP HINGE, AVOCADO
8	COVER HINGE, COFFEE
8	COVER HINGE, WHEAT
8	COVER, TOP HINGE, ALMOND
9	HINGE-TOP RS
9	WCI G183716
10	WASHER, NYLON
11	WCI G174738
12	WCI G165233
13	WCI 3203855
14	GASKET KIT – COIL COVER
15	WCI G163669
16	LIGHT SHIELD-FREEZER
17	WCI G169477-03
18	218906802 Frigidaire Light Lamp Socket
19	LIGHT BULB
20	WCI G169741
21	WCI 3001095
22	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
23	BRACKET-LOWER HINGE
23	WCI G141673
23	HINGE-BOTTOM LS (NON-ILLUSTRATED)
24	NUT, SPEED (2)
24	SHIM, HINGE
24	WCI G142361
25	SCREW – 1/4 X 1 (2)
26	WCI G164643
26	MULLION AVOC.
26	WCI G164643-09
26	WCI G169297
26	WCI G169100
26	MULLION-ALMD
26	MULLION-COFE
27	WCI G169745-09
27	TRIM-MULLN-ALMD
27	TRIM-MULLN-AVOC
27	MULLION TRIM-WHITE
27	TRIM-MULLN-COFE
28	5303289051 Frigidaire Refrigerator Light Switch
29	5304455650 Frigidaire Refrigerator Screw
30	GRILLE
31	CLIP, GRILLE
32	ROLLER ASSY (2)
33	SCREW, MTG (2) (NON-ILLUSTRATED)
34	WCI G171125
35	241957901 Frigidaire Refrigerator Tube-Drain
36	WCI G171193
37	NUT, INLET TO SOLENOID VALVE
37	WCI G177743
38	WCI G162809
39	ROLLER (2)
40	NUT, DAMPER MOUNTING
41	COVER-BOTTOM HINGE
42	WCI G158022
