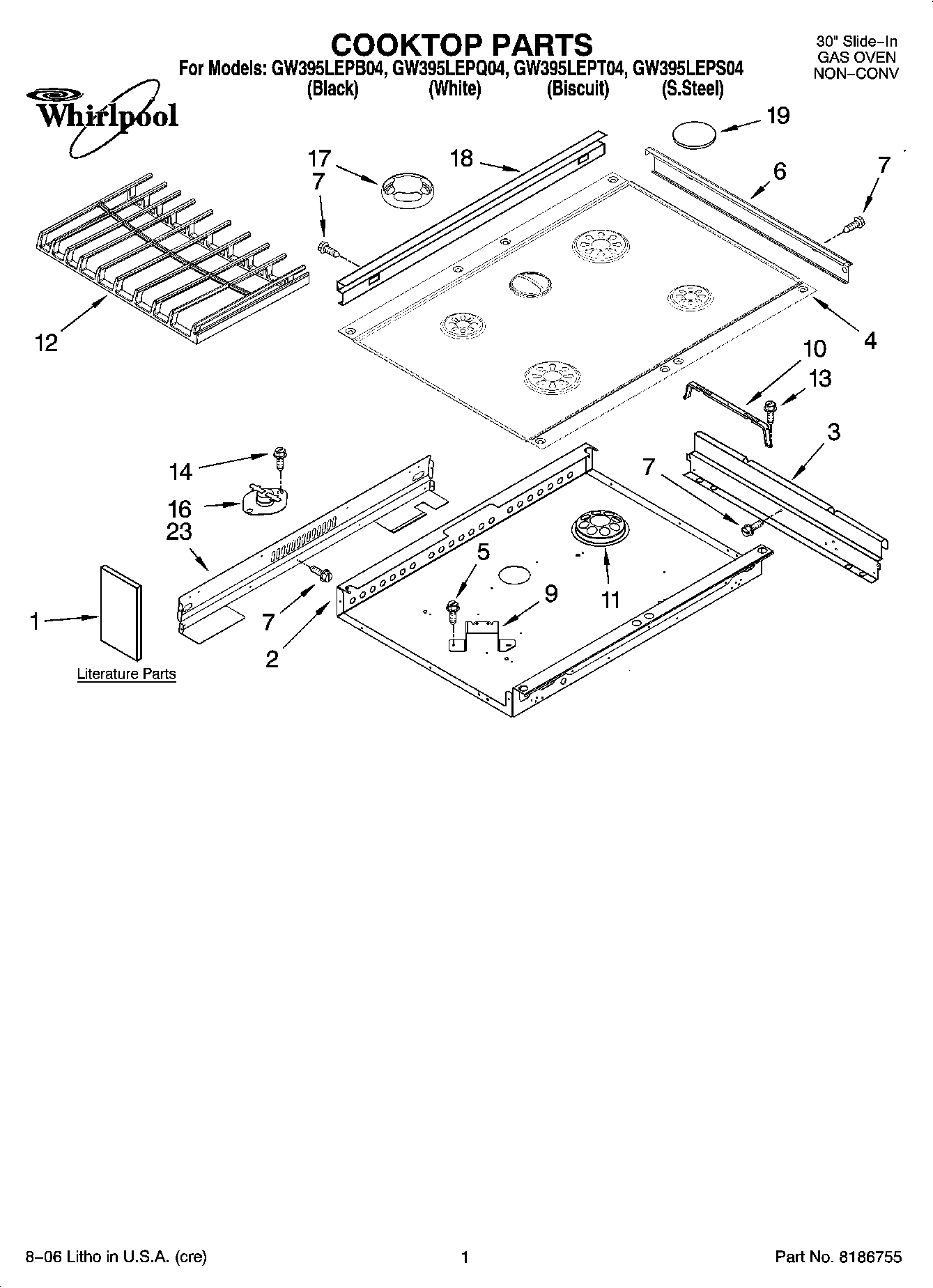

GW395LEPT04 01 – COOKTOP PARTS

Products

Position	Product
1	Anti-Tip Instruct.
1	Safe Cooking Tips (French)
1	Safe Cooking Tips
1	Installation Instructions
1	Use & Care Guide
1	Tech Sheet
2	Burner Box
3	Bracket, Mounting
4	Cooktop (Biscuit)
4	Cooktop (White)
4	Cooktop (Black)
5	WP12990527 Whirlpool Microwave Screw
6	Trim-CkTop, SI (Biscuit LH)
6	Trim-CkTop, SI (White LH)
6	Trim-CkTop, SI (S.Steel LH)
6	Trim-CkTop, SI (Black LH)
6	Trim-CkTop, SI (White RH)
6	Trim-CkTop, SI (S.Steel RH)
6	Trim-CkTop, SI (Black RH)
6	Trim-CkTop, SI (Biscuit RH)
7	WP3196557 Whirlpool Screw
9	Bracket, Burner
10	WP9756821 Whirlpool Support
11	Vent, Center (Biscuit)
11	Vent, Center (White)
11	Vent, Center (Black)
12	Grate, Burner (Espresso (RH))
12	Grate, Burner (Mouse Grey (RH))
12	Grate, Burner (Mouse Grey (LH))
12	Grate, Burner (Black (RH))
12	Grate, Burner (Black (LH))
12	Grate, Burner (Espresso (LH))
13	WP4449809 Whirlpool Screw
14	W10491985 Whirlpool Screw
16	WP9759944 Whirlpool Thermostat
17	Vent, Center (White)
17	Vent, Center (Biscuit)
17	Vent, Center (Black)
18	Trim, Cooktop Rear (White)
18	Trim, Cooktop Rear (Black)
18	Trim. Cooktop Rear (S.Steel)
18	Trim, Cooktop Rear (Biscuit)
19	WPL 9753939GB
19	WP8273345 Whirlpool Burner Cap
19	WP3191898 Whirlpool Surface Burner Cap Black
19	WP3191904 Whirlpool Burner Cap
19	WPL 9753939EP
19	WP3191905 Whirlpool Burner Cap
19	Cap, Burner 6K (1) (Gray)
19	WP8273343 Whirlpool Burner Cap
19	WPL 9753939GS
23	WPL 9759629
