GX5FHDXVA03 01 – CABINET PARTS

GX5FHDXVA03 01 – CABINET PARTS

Written by

in

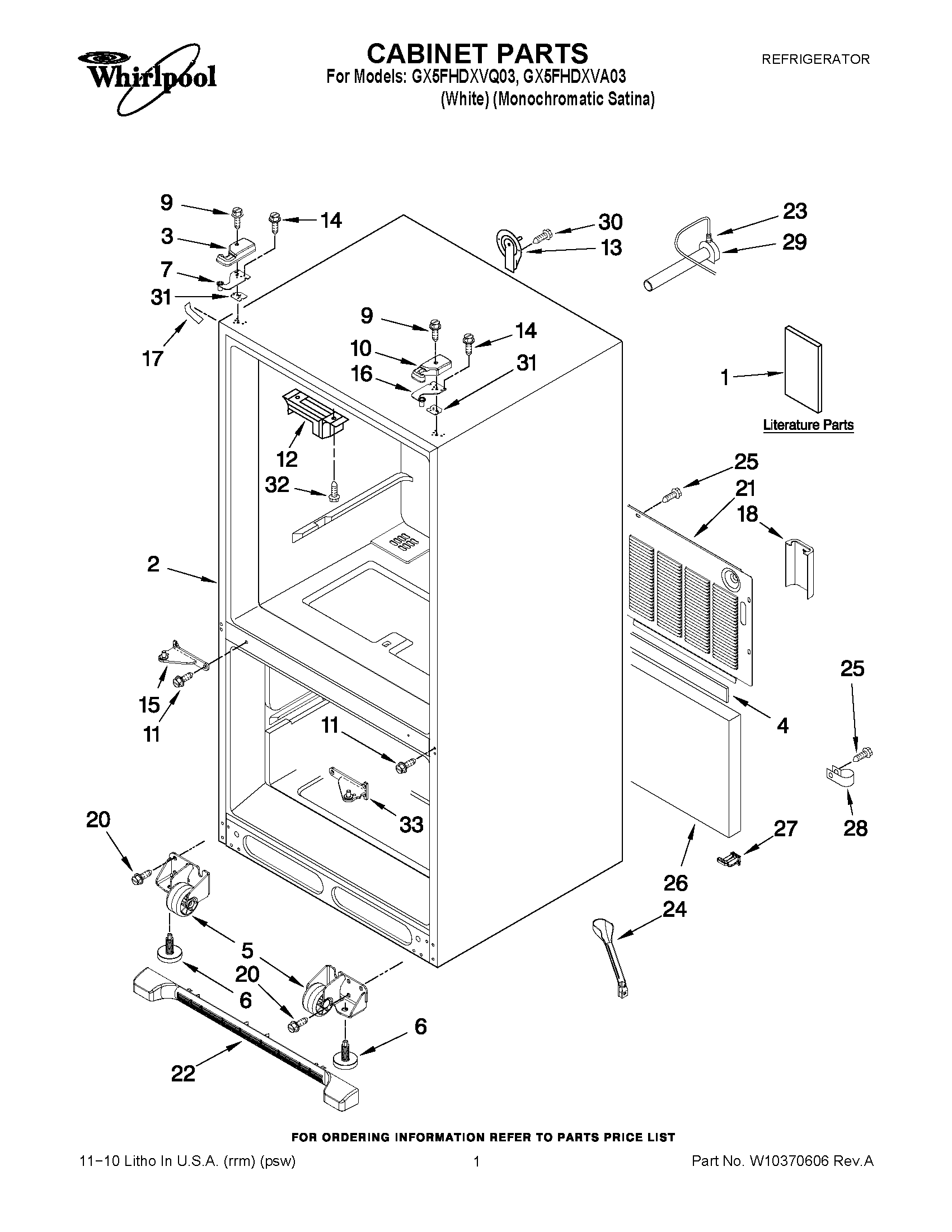

GX5FHDXVA03 01 – CABINET PARTS

Products

PositionProduct
1ENERGY GUIDE
1TECH SHEET
1Use & Care Guide
2CABINET (NOT A SERVICEABLE PART)
3WPW10337634 Whirlpool Refrigerator Cover
3WPW10337648 Whirlpool Refrigerator Cover
4B5759655 Whirlpool Refrigerator Gasket
5WPW10515763 Whirlpool Refrigerator Cabinet Roller
5WPW10515762 Whirlpool Refrigerator Cabinet Roller
6WPW10141622 Whirlpool Leveler
7W11592375 Whirlpool Door Hinge
9WP8281196 Whirlpool Screw
10WPW10191117 Whirlpool Refrigerator Cover
1067005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
11WP489349 Whirlpool Refrigerator Screw
12WP67003405 Whirlpool Pivot Block
1312726003 Whirlpool Refrigerator Water Cover
15W10917988 Whirlpool Refrigerator Door Hinge
15W10918113 Whirlpool Refrigerator Door Hinge
16W11592374 Whirlpool Refrigerator Top Door Hinge
1712587703W Whirlpool Refrigerator Cover
17WP12587703AP Whirlpool Refrigerator Filler
18W10208592 Whirlpool Refrigerator Valve Cover
2067006564 Whirlpool Refrigerator Screw
21W10211854 Whirlpool Refrigerator Back Cover
22WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
22WPW10534154 Whirlpool Refrigerator Front Grille
23WPM0114003 Whirlpool Microwave Speed Clip Clamp
24W10619951 Whirlpool Drain Tube with Grommet
2567006425 Whirlpool Refrigerator Screw
26INSULATION, SOUND
27SWEEP, WATER VALVE
28W11456069 Whirlpool Refrigerator Clamp
29W11176463 Whirlpool Refrigerator Water Tube
30WP98165 Whirlpool Screw
3112999502 Whirlpool Refrigerator Hinge Shim
3112999501 Whirlpool Refrigerator Hinge Shim
32WP7101P126-60 Whirlpool Screw
3313000002WD Whirlpool Refrigerator Door Hinge
