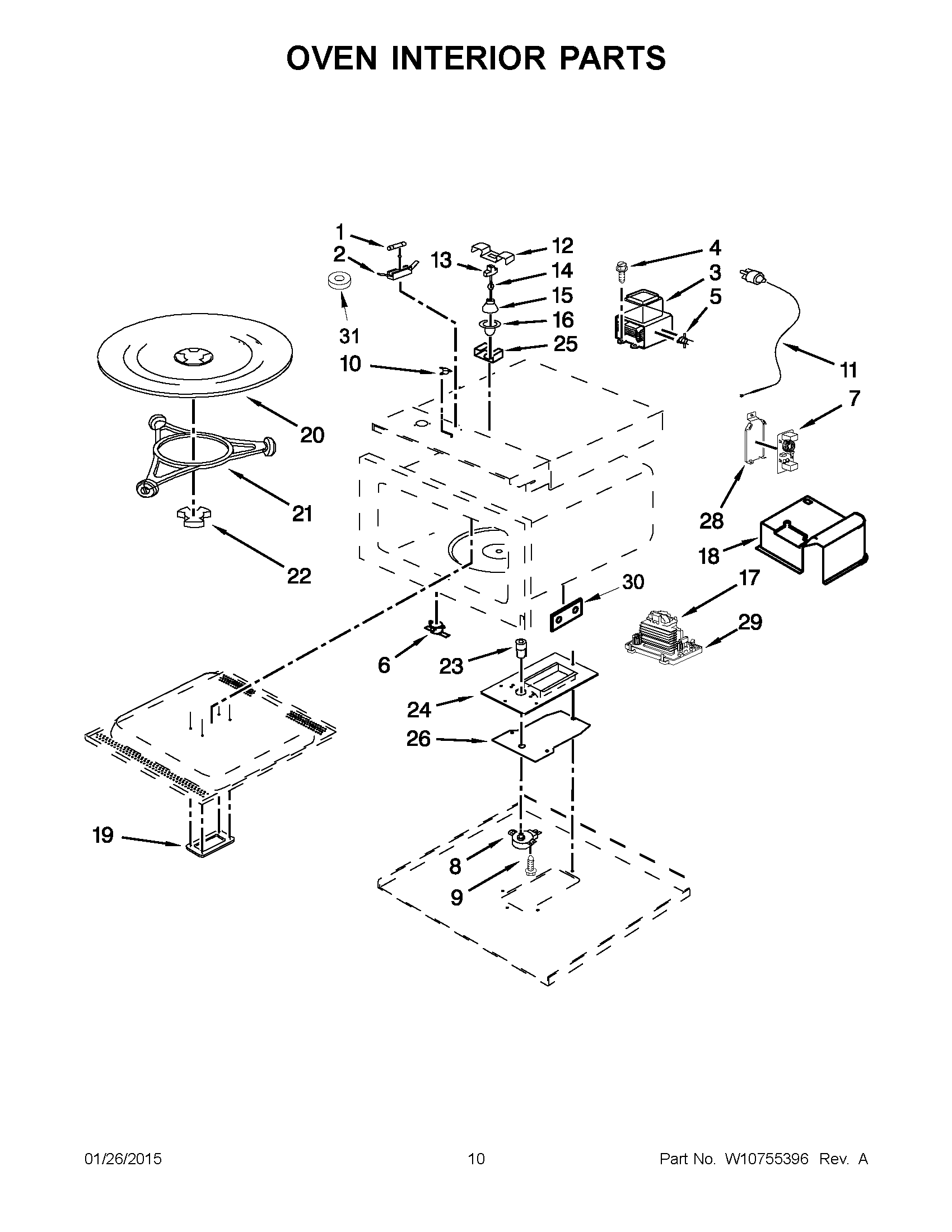

IBMS1455DS00 06 – OVEN INTERIOR PARTS

IBMS1455DS00 06 – OVEN INTERIOR PARTS

Written by

in

IBMS1455DS00 06 – OVEN INTERIOR PARTS

Products

PositionProduct
1WP4375321 Whirlpool Microwave Fuse
2W10245194 Whirlpool Microwave Fuse Block
38206079 Whirlpool Microwave Magnetron
4SCREW
5WP4375079 Whirlpool Microwave Thermostat
6W10141630 Whirlpool Microwave Thermostat Fixed
7W10591655 Whirlpool Microwave Filter
8W10911403 Whirlpool Microwave Turn Motor
9461967825321 Whirlpool Microwave Screw
10W11676348 Whirlpool Thermostat Fix
118205660 Whirlpool Microwave Power Cord
12W10474015 Whirlpool Microwave Spring
13WPW10490593 Whirlpool Microwave Lamp Housing
14W10886919 Whirlpool Light Bulb
15423107022541 Whirlpool Microwave Reflector
16W11193483 Whirlpool Microwave Lamp Lens
17W10217711 Whirlpool Microwave Inverter
18Cover, Inverter
19W11087199 Whirlpool Waveguide Cover
20W11373838 Whirlpool Glass Tray
21W10422379 Whirlpool Microwave Support
22W11223840 Whirlpool Microwave Turn Shaft
23W11126044 Whirlpool Drive Shaft
24461967008471 Whirlpool Microwave Motor Cover
25W11440819 Whirlpool Clip
26Cover
27W10769146 Whirlpool Microwave Shaft Gasket
28W10130891 Whirlpool Microwave Holder
29W10130906 Whirlpool Holder
30W10915651 Whirlpool Waveguide Cover
31W10769147 Whirlpool Microwave Foam Seal
