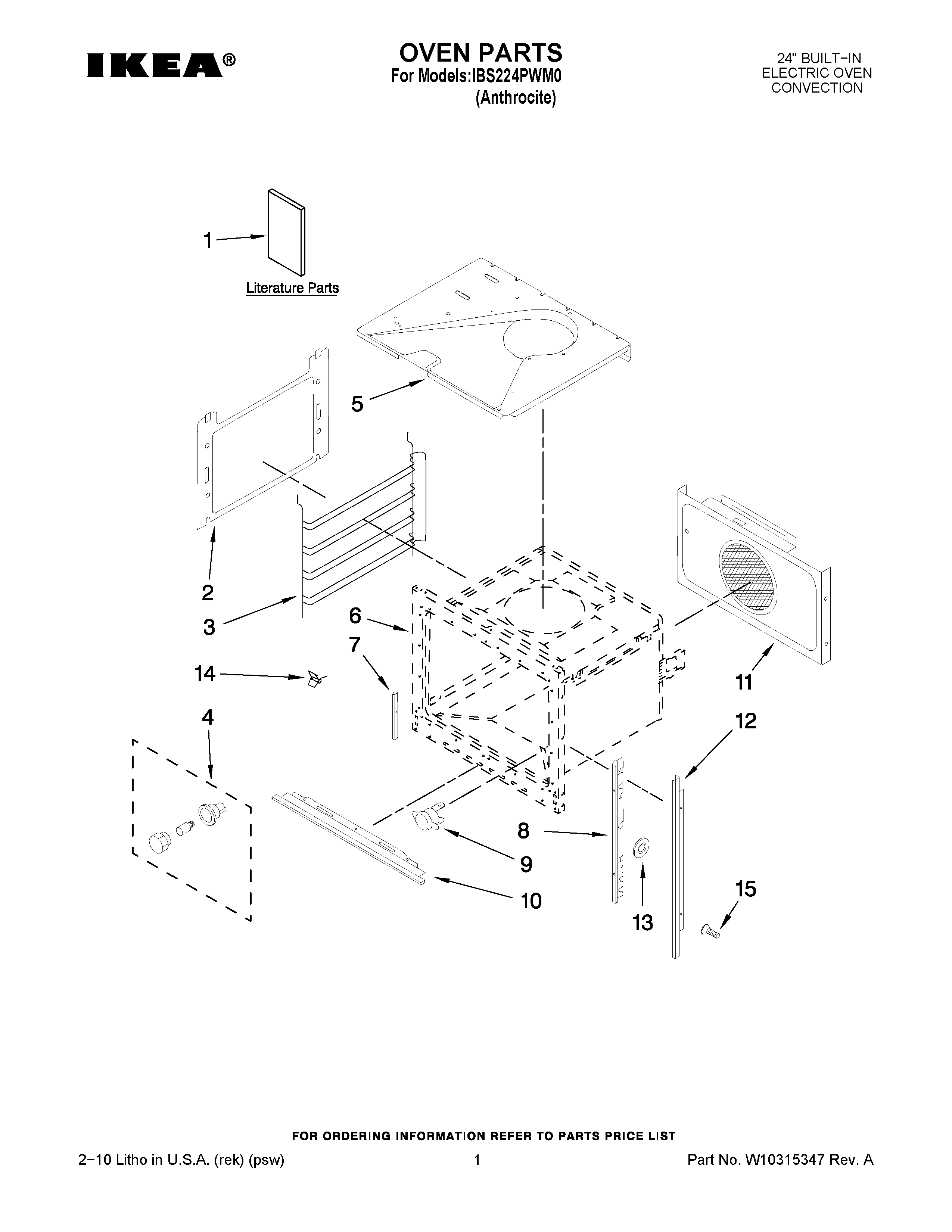

IBS224PWM0 01 – OVEN PARTS

Written by

Products

Position	Product
1	USE & CARE GUIDE
1	Installation Instructions
1	Sheet, Tech
2	Panel, Side
3	Support (RH)
3	Support (LH)
4	Assy, Oven Light
6	CABINET (NOT A SERVICEABLE PART)
7	Cover, Hinge
8	Rail, Side (LH)
8	Rail, Side (RH)
9	Temper, Limiter
9	LIMITER
9	LIMITER
10	Deflector, Vent
11	Panel, Rear
12	Trim
13	Spacer
14	Clamp, Therm.
15	Screw, Set
