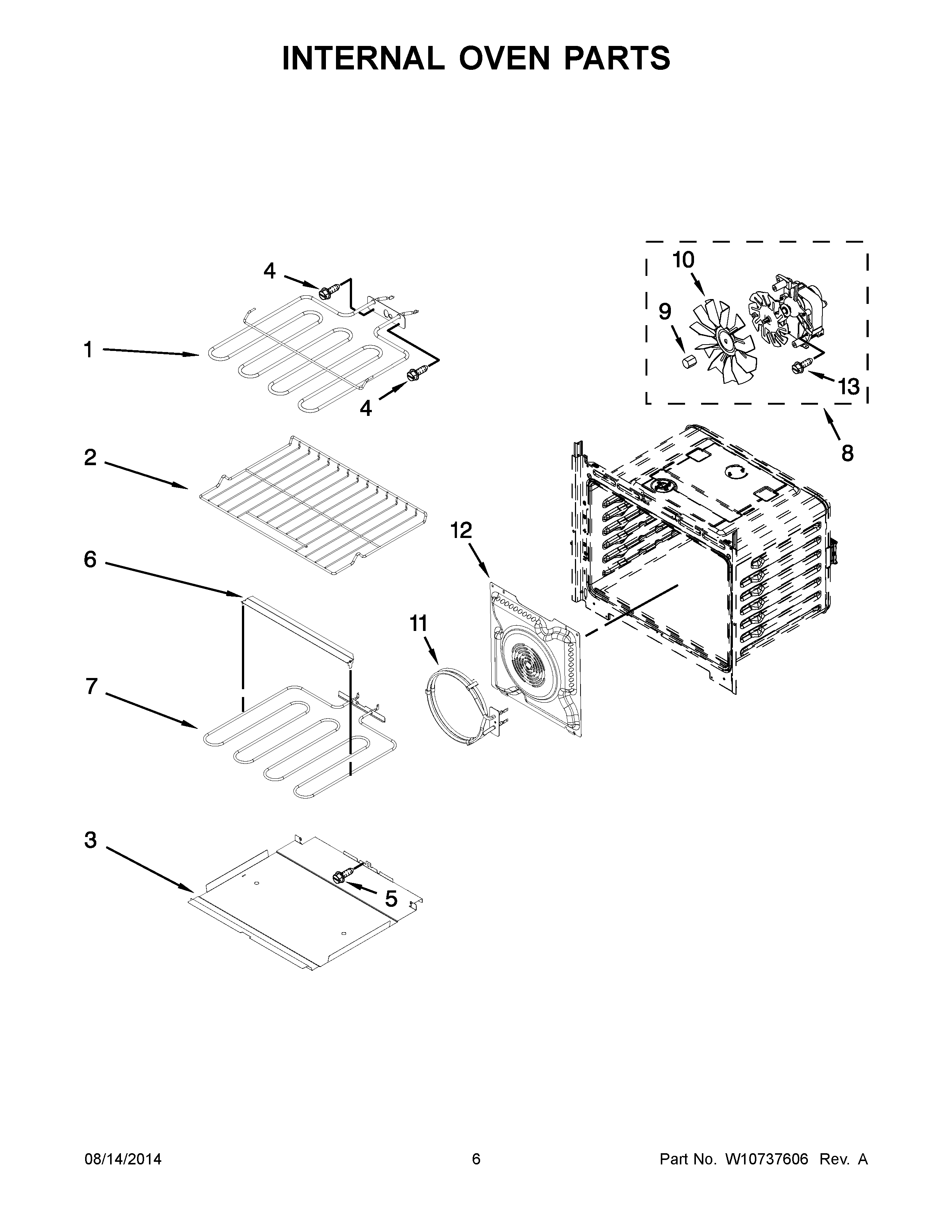

IBS550DS00 04 – INTERNAL OVEN PARTS

IBS550DS00 04 – INTERNAL OVEN PARTS

Written by

in

IBS550DS00 04 – INTERNAL OVEN PARTS

Products

PositionProduct
1ELMNT-BROL
2W11218798 Whirlpool Rack
3W10318198 Whirlpool Bake Tray
4Screw
5SCREW
6W10282957 Whirlpool Bracket Support
7BAKE ELEMENT
8W10794022 Whirlpool Oven Cooktop Fan Motor
9WPW10116349 Whirlpool Nut
10W10758272 Whirlpool Convection Fan
11WPW10260248 Whirlpool Element Assembly
12W10359278 Whirlpool Baffle Conv
13WP4449154 Whirlpool Screw
