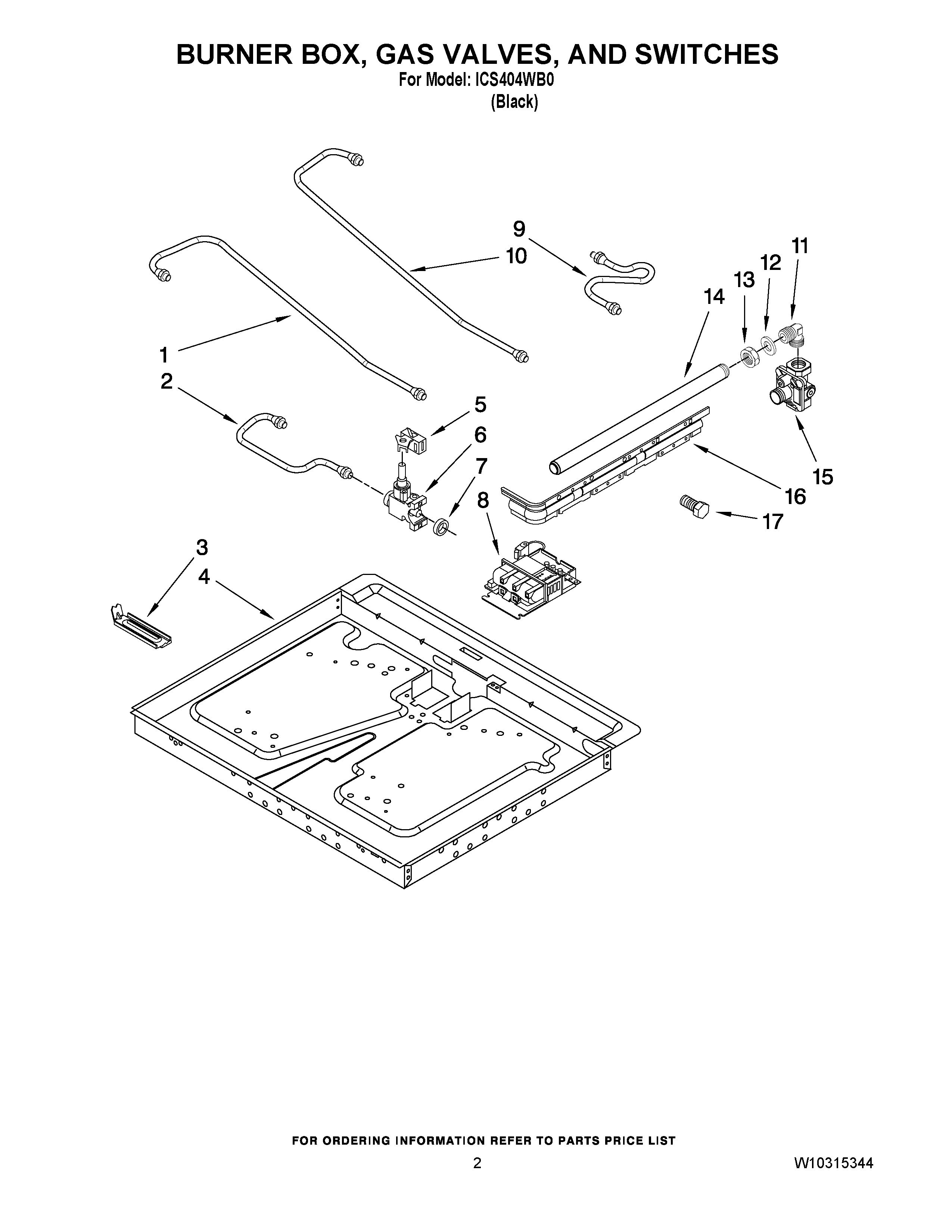

ICS404WB0 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

Products

Position	Product
1	Tubing, LF
2	Tubing, RF
3	Bracket, Mtg
5	IGNITION,ELEC.
6	Valve, Gas (RF)
6	VALVE, GAS (LR,RR)
6	Valve, Gas (LF)
7	Ring, Gasket
8	Block, Terminal
9	Tubing, RR
10	Tubing, LR
11	Elbow Pipe, Manfld
12	Ring, Gasket
15	8186962 Whirlpool Oven Regulator
16	CABINET (NOT A SERVICEABLE PART)
17	BOLT, GAS VALVE
