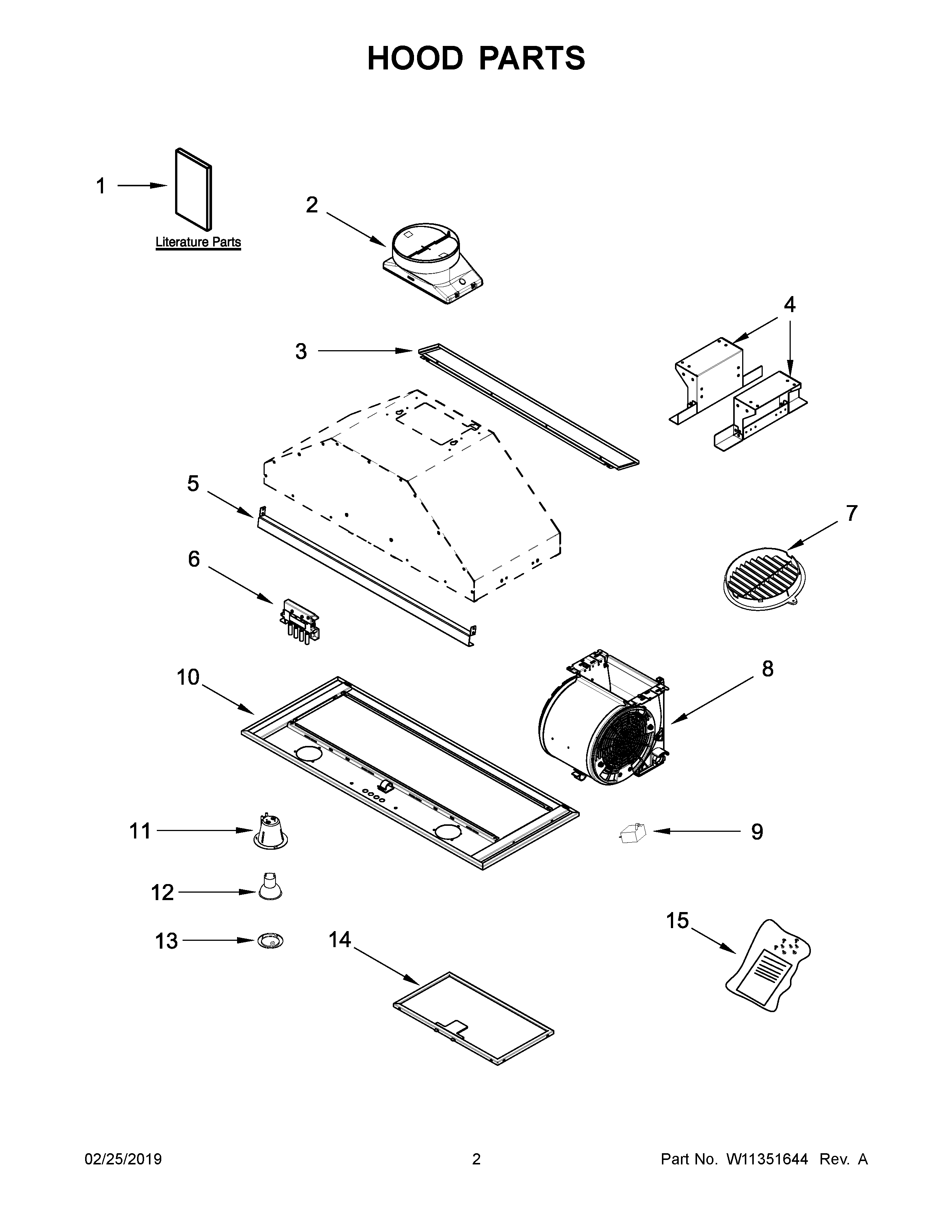

IXL5430DS2 02 – HOOD PARTS

Products

PositionProduct
NIW10272068 Whirlpool Range Hood Charcoal Filter Set
NIW10446915 Whirlpool Range Hood Air Kit
1GUIDE, USE AND CARE
2W10847841 Whirlpool Range Hood Vent Damper
3W10762275 Whirlpool Hood Liner
4WPW10531090 Whirlpool Mounting Bracket
5FACEPLATE
6W10531088 Whirlpool Power Button Switch
7DEFLECTOR
8W11351717 Whirlpool Blower Fan
9W11328673 Whirlpool Capacitor
10WPW10531091 Whirlpool Light Support
11WPW10370558 Whirlpool Socket
12WPW10291579 Whirlpool Light Bulb
13W10351924 Whirlpool Bezel
14WPW10531087 Whirlpool Filter Assembly
15W10762276 Whirlpool Hardware
