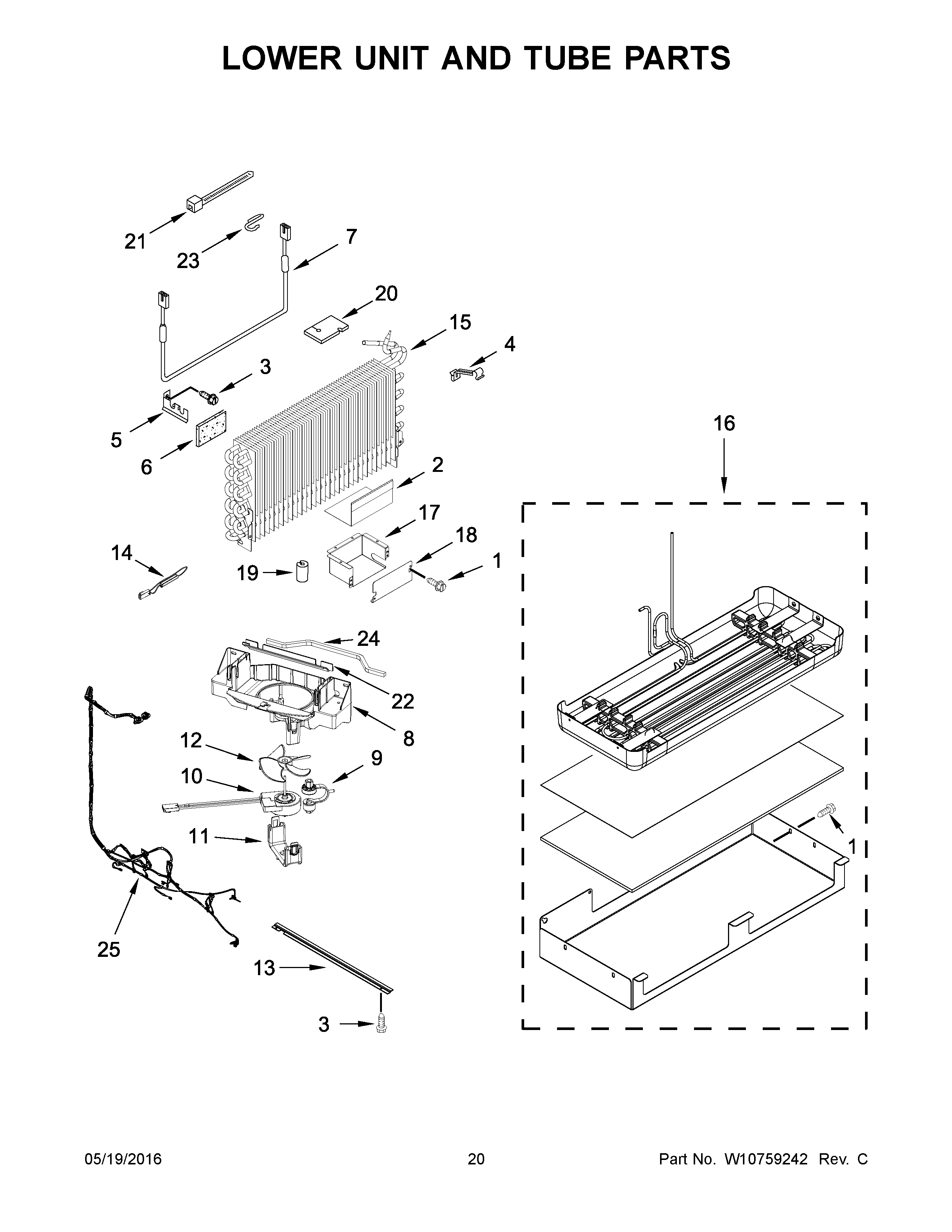

JB36NXFXLE00 11 – LOWER UNIT AND TUBE PARTS

Products

Position	Product
1	Screw
2	MAY W10321050
3	SCREW
4	MAY 2307944
5	MAY 2307945
6	SEALER, INSULATION
7	MAY W10524056
8	MAY W10803566
9	Grommet, Fan Motor (2)
10	MAY W10556724
11	MAY 12956601
12	MAY 2200509
13	MAY 2320554
14	ASSEMBLY, FUSE JUMPER WIRE
15	MAY W10524054
16	MAY W10735008
17	MAY W10321048
18	MAY W10309012
19	GROMMET, CONDENSER
20	MAY W10703410
21	MAY 2155774
22	MAY W10567169
23	MAY 2317920
24	MAY W10762685
25	LINER (NOT A SERVICEABLE PART)
